DeLOCK USB Hub 3.2 Gen 1 Type-C 10000 Mbit/s Blue 64288

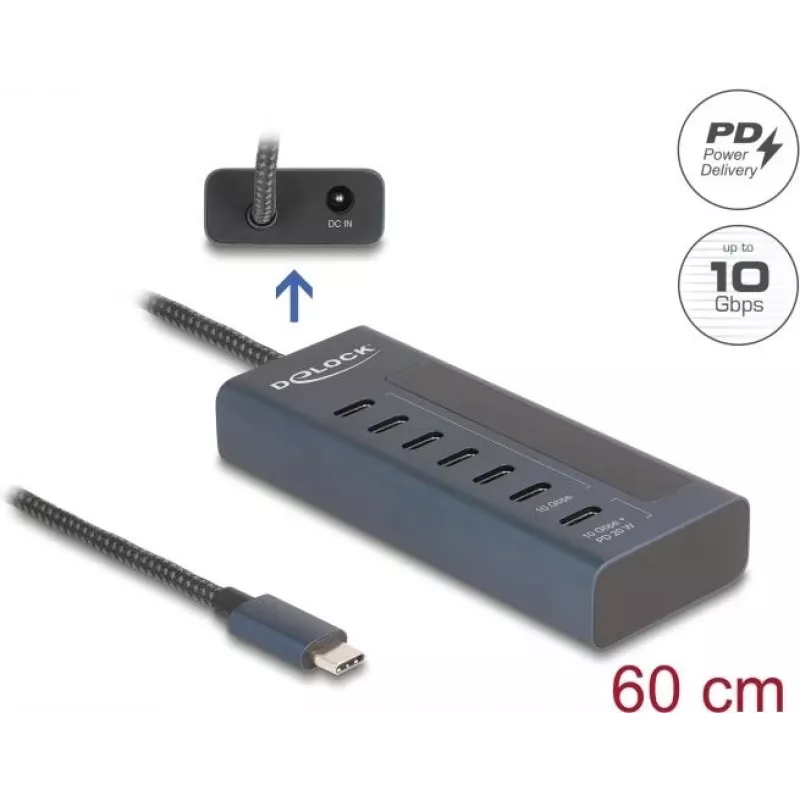

The DeLOCK USB Hub 3.2 Gen 1 Type-C (model 64288) is a compact seven-port USB‑C hub that connects to a PC or laptop via a USB Type‑C interface. Housed in a durable metal casing and finished in blue, the hub supports data transfers up to 10000 Mbit/s and is compatible with Windows 10, Windows 11, Mac OS X 14.0 Sonoma and Linux Kernel 6.2.

Advantages

The hub provides seven USB‑C ports for connecting multiple USB devices such as flash drives, card readers and external enclosures. One of the Type‑C ports supports USB Power Delivery (PD) 3.0 and delivers up to 20 W output power while an adjacent LED indicates the current charging power. Data transfer rates of up to 10 Gbps are supported on the data ports. The compact metal enclosure offers a small footprint suitable for desks and mobile use.

Suitable for

• Expanding USB‑C connectivity on laptops and PCs
• Connecting USB flash drives, card readers and external drives
• Charging smartphones and other small devices via USB‑C PD (up to 20 W)
• Workstations requiring multiple USB‑C data ports

Key specifications

• Manufacturer: DELOCK
• Model: 64288
• Host interface: USB 3.2 Gen 1 (Type‑C)
• Hub interfaces: USB 3.2 Gen 1 Type‑C, data up to 10 Gbps
• Ports quantity: 7 × USB‑C
• Power delivery: USB‑C PD 3.0 port, up to 20 W output
• LED display: indicates current charging power
• Compatible OS: Windows 10, Windows 11, Mac OS X 14.0 Sonoma, Linux Kernel 6.2
• Colour: Blue
• Dimensions (W×D×H): 39 × 99 × 17 mm
• Housing: Metal
• Note: DisplayPort Alternate Mode (DP Alt Mode) not supported — no video output

How to use

Connect the hub to a PC or laptop using the built‑in USB Type‑C plug. Insert USB‑C devices into any of the seven ports to enable data transfer or charging. Use the dedicated USB‑C PD port when charging devices that support USB Power Delivery; observe the LED display to check the current charging power. Ensure the host system supports USB 3.2 Gen 1 to achieve maximum data rates.

Recommendations

Do not expect video output from this hub: DisplayPort Alternate Mode is not supported. For stable operation, connect high‑power devices to the PD port and avoid overloading the hub with multiple high‑current draws simultaneously.
