Delock USB 20 Gbps M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone Function

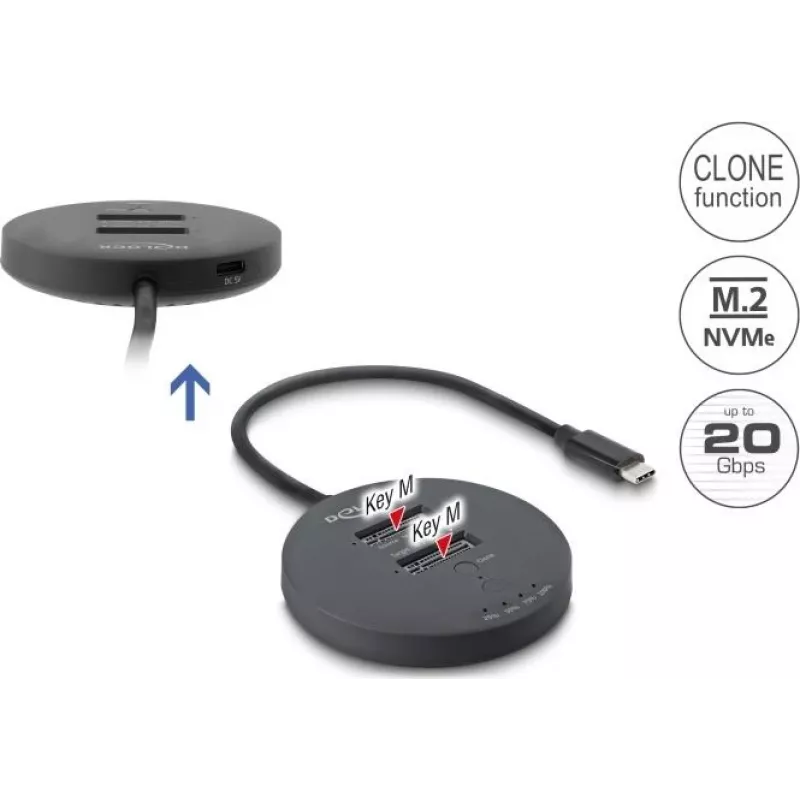

The Delock USB 20 Gbps M.2 Docking Station allows you to connect two M.2 NVMe PCIe SSDs simultaneously via a single USB-C connection. With support for USB 3.2 Gen 2x2 (20 Gbps), it offers high-speed data transfer and includes an offline clone function for easy duplication without a PC.

Advantages

High-speed data transfer up to 20 Gbps; supports offline cloning of SSDs; tool-free installation with thermal pads and rubber fasteners; compact aluminium housing for effective heat dissipation.

Suitable for

• Expanding storage capacity for laptops, desktops, or gaming consoles
• Quick data backup or duplication via one-button clone
• Using NVMe SSDs as external drives with USB-C connectivity

Key specifications

• Host interface: USB 3.2 Gen 2x2 USB Type-C (20 Gbps)
• Internal SSD interface: M.2 NVMe PCIe
• Number of SSD slots: 2
• Supported M.2 form factors: 2280, 2260, 2242, 2230
• Max data transfer rate: 20 Gbps
• Chipset: ASMedia ASM2364 + ASM2806A
• Clone function: offline (PC-less) with LED progress indication
• Power supply: external, 5 V / 4 A
• Material: aluminium housing, plastic cover
• Compatible operating systems: Windows 8.1/10/11, Mac OS 10.15.6+, Linux Kernel 5.8+
• Features: Plug & Play, Hot Swap, Bootable, UASP, TRIM
• Included cables: 1 x USB-C to USB-C (50 cm), 1 x USB-C to USB-A (50 cm)
• Max SSD capacity per slot: up to 4 TB (total 8 TB)

Recommendations

For optimal performance, use NVMe SSDs that support PCIe 3.0 or higher. Ensure your host device supports USB 3.2 Gen 2x2 for full 20 Gbps speed.
