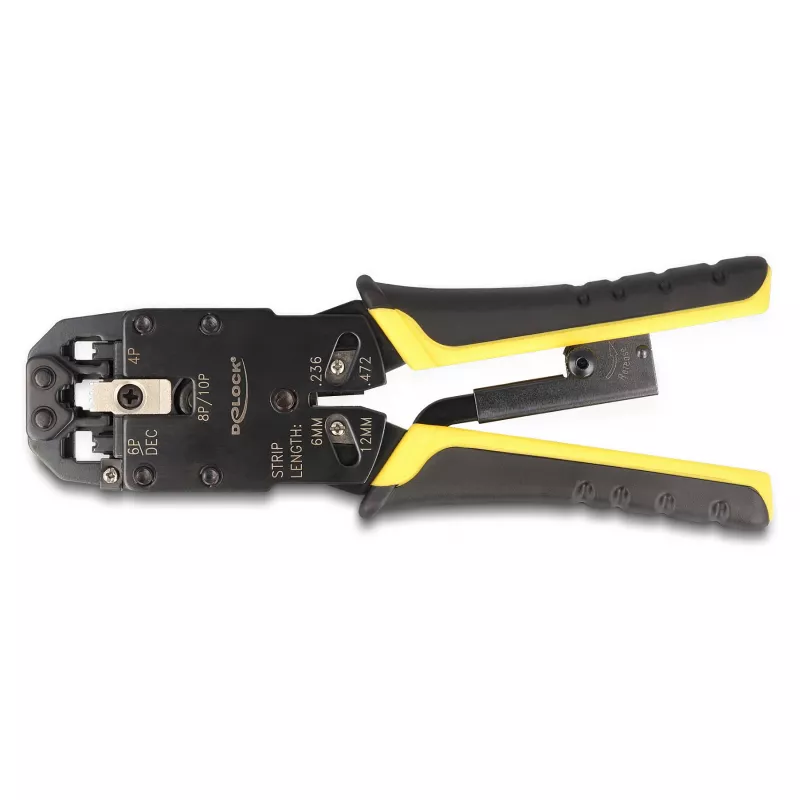

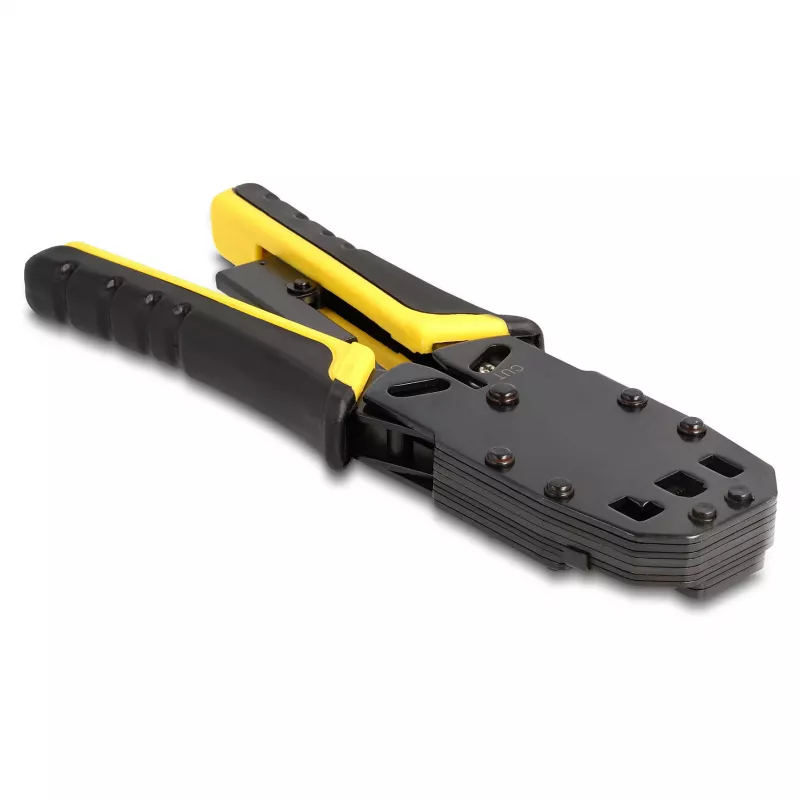

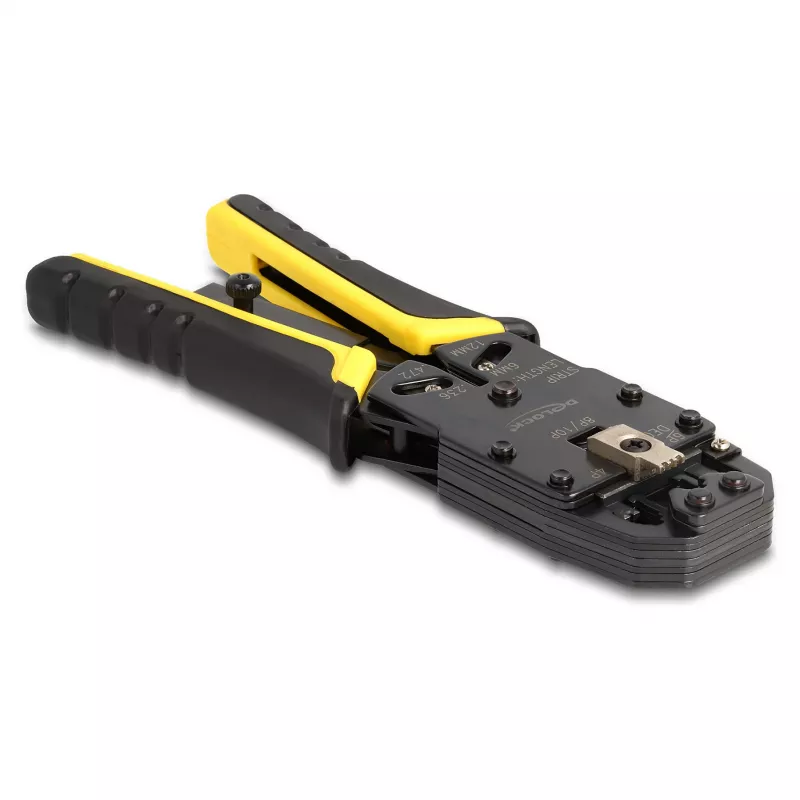

DeLOCK Universal Crimping Tool with wire stripper for 10P 8P 6P 4P modular plugs

The DeLOCK Universal Crimping Tool with wire stripper is designed to install network and telephone cables quickly and reliably into modular plugs. It combines crimping, stripping and cutting functions in a single hand tool and features rubberized handles for a secure grip during use. The tool accepts 10P (RJ50), 8P (RJ45), 6P (RJ12/11) and 4P modular plugs and is suitable for connectors with an offset latch (6/6, 6P6C).

Advantages

This multifunctional plier integrates crimping dies for multiple plug sizes, built-in blades for cable stripping and a cutting edge for conductor trimming, reducing the need for separate tools. Rubberized black and yellow handles improve handling and comfort, and a locking mechanism with six audible locking positions prevents accidental opening or closing during work. The tool dimensions (approx. 200 mm length, 77 mm width, 18 mm height) and weight (0.514 kg) make it robust yet portable for field and workshop use.

Suitable for

Key specifications

How to use

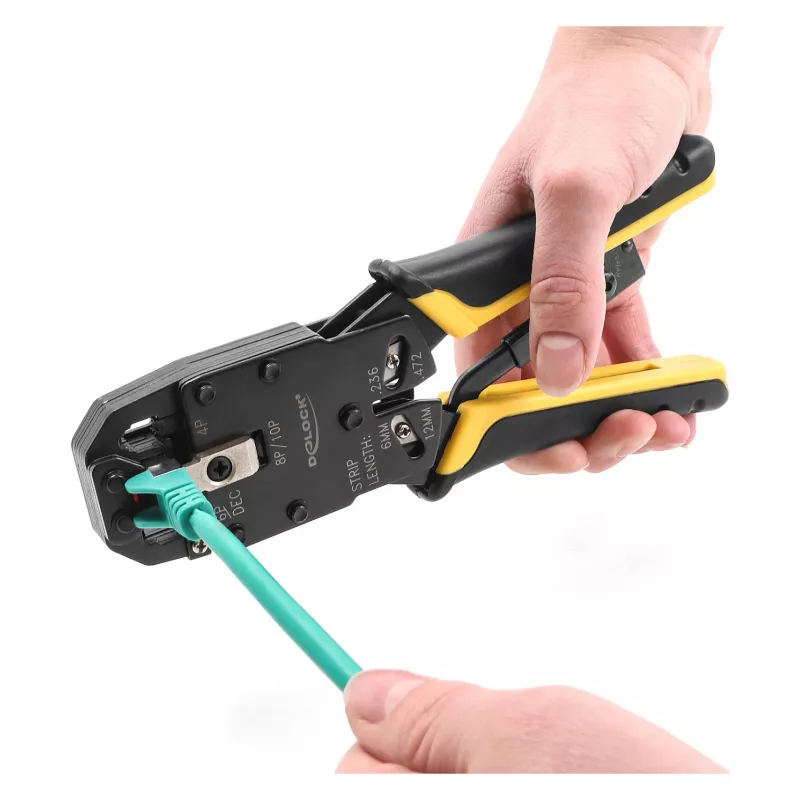

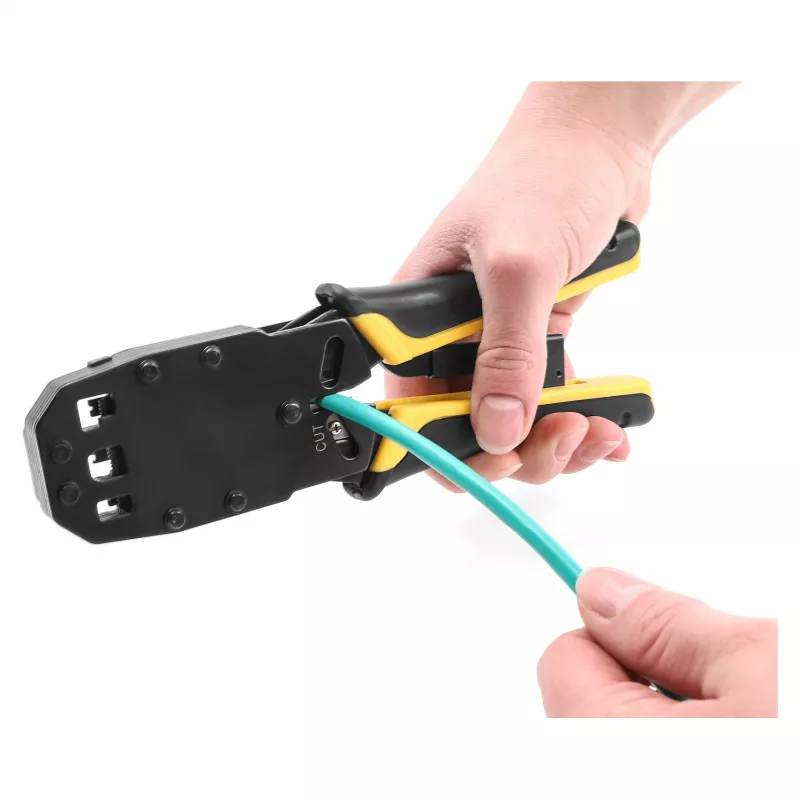

Select the appropriate crimping die for the modular plug size, insert the prepared plug and cable into the die, and squeeze the handles firmly to crimp. Use the integrated blades to strip the cable jacket and trim the conductors to the correct length before inserting into the plug. The locking mechanism keeps the handles closed when not in use; release or open the tool by disengaging the lock or using the release screw on the handle as required.

Recommendations

For reliable connections, ensure conductors are correctly arranged and fully inserted into the modular plug before crimping. Do not apply excessive force beyond the intended crimping action and keep blades clean and free of debris to maintain stripping performance.
