Crimping tool DeLOCK 90561

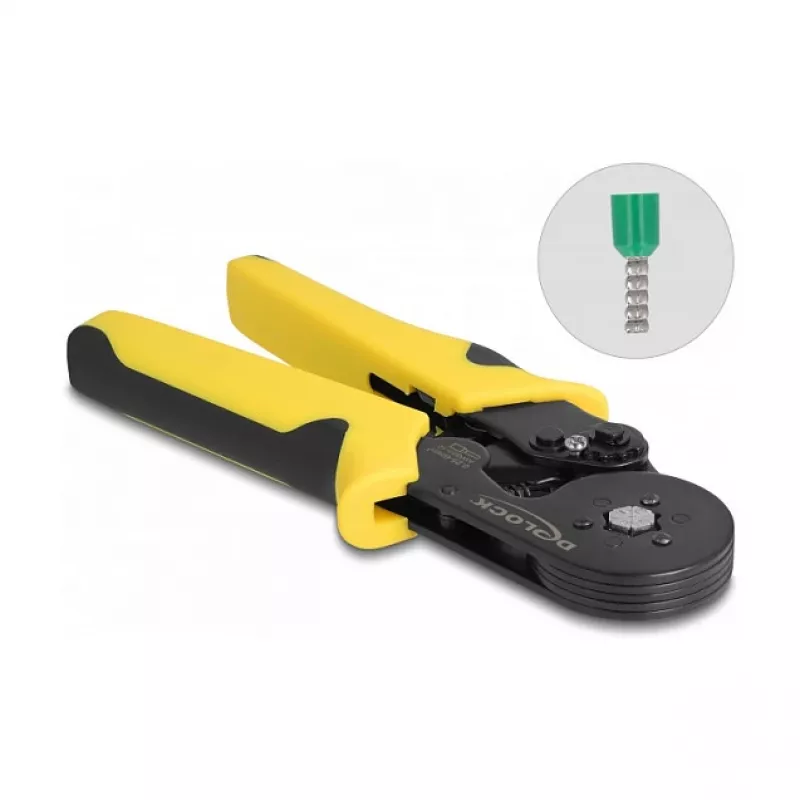

The DeLOCK 90561 crimping tool is designed for crimping wire end ferrules from 0.25 to 6 mm². Compact and robust, the tool measures approximately 172 mm × 73 mm × 18 mm and weighs 0.382 kg. Its black-and-yellow finish improves visibility and the ergonomic handles provide comfortable handling during repetitive tasks.

Advantages

The hexagonal crimp profile produced by this tool applies pressure evenly from six sides, producing a secure and high-quality connection of the ferrule to the cable end. An integrated locking mechanism with three audible positions prevents accidental opening or closing of the pliers. The ergonomic handle shape improves control and reduces hand fatigue during extended use.

Suitable for

Key specifications

How to use

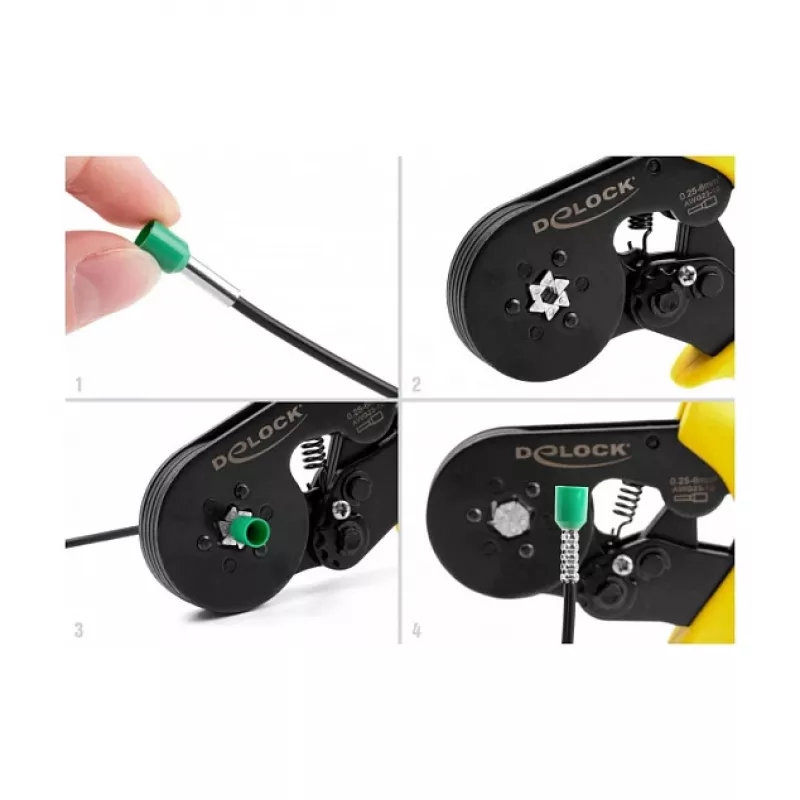

Insert the prepared wire with the ferrule into the correct crimping jaw for the ferrule size, position the ferrule fully, then squeeze the handles until the tool clicks through the locking positions. After the third audible lock position the pliers will release automatically when the handles are fully compressed. Verify the ferrule is seated firmly on the conductor before applying electrical load.

Recommendations

Use the tool only for the specified ferrule range (0.25–6 mm²). Keep handles clean and free of oil to maintain grip. Inspect the crimp and repeat if the ferrule is not seated correctly. Store in a dry place to avoid corrosion.
