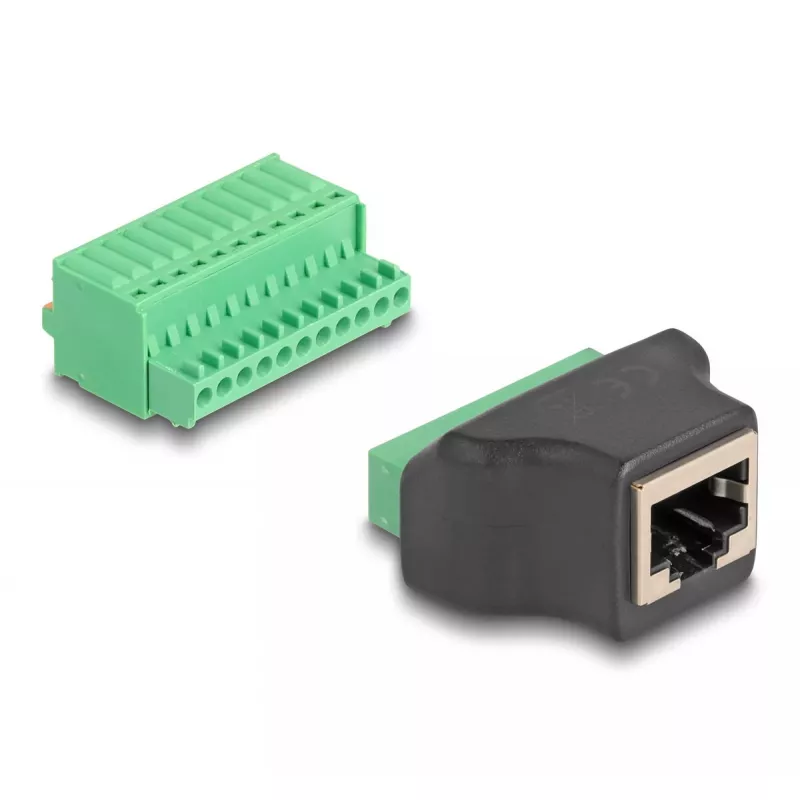

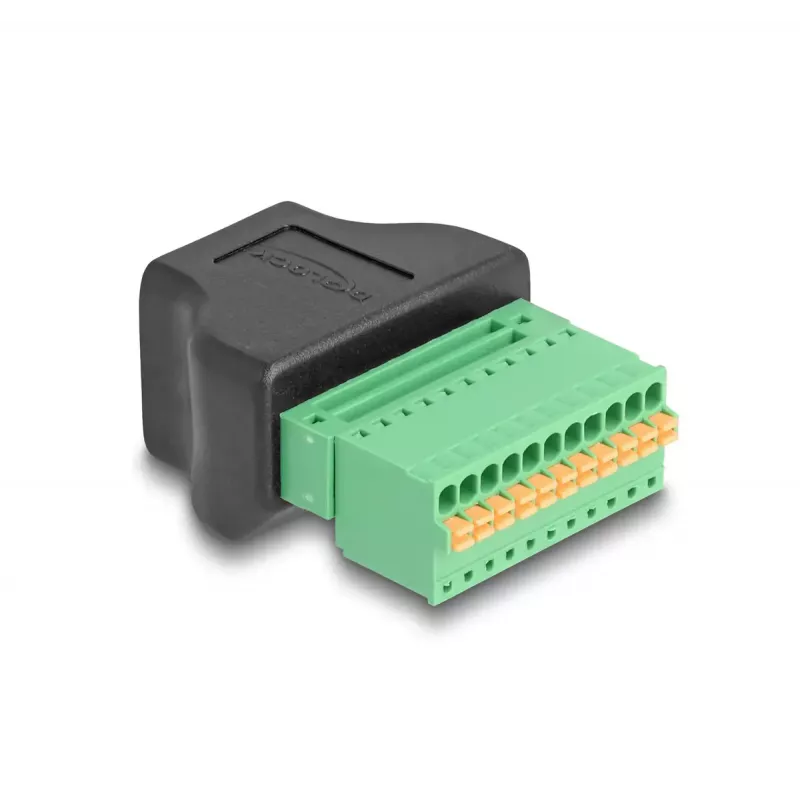

DeLOCK RJ50 female to Terminal Block Adapter with push-button 11 pin terminal block

The DeLOCK RJ50 female to Terminal Block Adapter provides a compact solution for connecting network devices with an RJ50 interface to an 11‑pin terminal block. The adapter combines an RJ50 female connector and a push‑button terminal block that accepts strands with stripped ends, enabling tool-free wiring for a range of applications.

Advantages

The push‑button 11‑pin terminal block allows quick, secure connections of stranded conductors without additional tools. The compact design with a standard RJ50 female connector ensures compatibility with devices using RJ50 interfaces. The adapter’s colour coding (black housing with green terminal block) helps with identification during installation.

Suitable for

• Connecting devices with RJ50 ports to field wiring or control panels
• Prototyping and temporary network or control connections
• Industrial or CCTV installations requiring multi‑pin signal wiring

Key specifications

• Connector 1: RJ50 (female)
• Connector 2: 11‑pin terminal block with push buttons
• Product colour: Black housing, green terminal block
• Brand: DELOCK
• MPN: 66244
• EAN: 4043619662449

How to use

Strip the insulation from the wire ends to the recommended length, press the corresponding push button on the terminal block, insert the stripped conductor into the terminal, and release the button to secure the wire. Plug the RJ50 connector into the device’s RJ50 port. Verify each connection for correct wiring and mechanical stability before powering the system.

Recommendations

Use stranded wires of the appropriate gauge for the terminal block and avoid exceeding rated current and voltage for the connected equipment. Ensure correct pin mapping between the RJ50 connector and the 11 pins to prevent signal misrouting.
