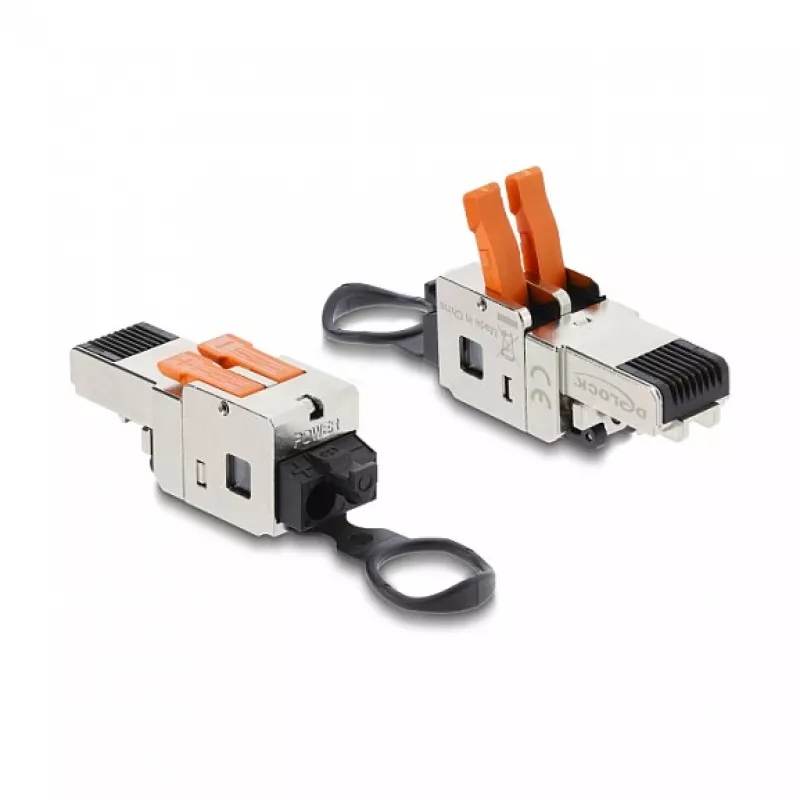

DELOCK RJ45 plug with clamp lock 2 pin +/- tool-free, composite power connector, male, black/stainless steel

This RJ45 plug by DELOCK is a tool-free composite power connector with a male RJ45 interface designed for two-pole power wiring. It accepts solid or flexible conductors with a cross-section of 1–4 mm² and is finished in black with stainless-steel elements. The connector is supplied as a single unit and is intended for field installations and repairs where a quick, compact power termination in an RJ45 form factor is needed.

Advantages

The clamp lock mechanism allows quick, tool-free connection and secure retention of the stripped conductor ends. A black plastic ring provides a quick-release function for mating with a standard RJ45 socket. The metal and plastic construction offers a compact, durable solution for power connections using an RJ45-style housing.

Suitable for

When it may not be suitable

This plug is intended specifically for two-pole power wiring and is not designed for multi-conductor Ethernet data applications. It is not suitable for conductors outside the specified 1–4 mm² cross-section range, nor for installations that require built-in overcurrent protection or sealed/watertight enclosures.

Key specifications

How to use

Pull both clamp levers upwards, insert the stripped conductor ends into the corresponding openings for + and −, then push the clamps back down to lock the wires in place. Use the black plastic ring to engage or release the plug from an RJ45 socket. No tools are required for clamping the conductors.

What to consider before purchase

Recommendations

Strip conductors to the appropriate length so the metal cores fully enter the clamp openings; ensure clamps are fully closed to maintain reliable contact. Avoid using the connector where IP-rated sealing or in-line overcurrent protection is required.
