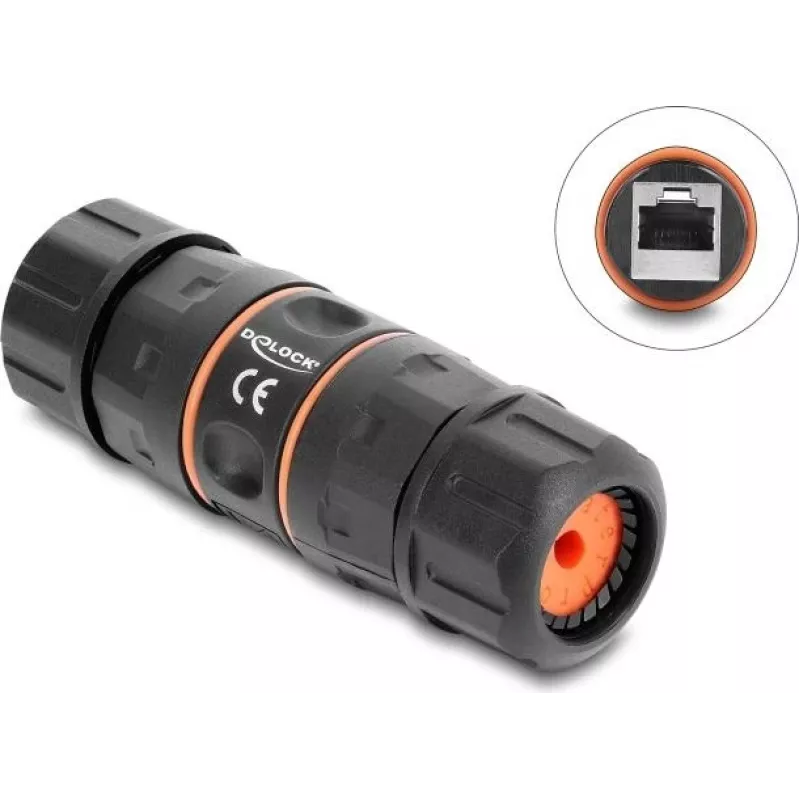

Delock RJ45 Female to RJ45 Female Cable Connector Cat.6A with M23.5 x 1.5 mm Thread Short Design IP68 Dust and Waterproof

This Delock RJ45 female to RJ45 female cable connector is designed for reliable and robust network connections in demanding environments. With Cat.6A performance, it supports 10 Gigabit Ethernet and a bandwidth of up to 500 MHz. The connector features a short construction and an M23.5 x 1.5 mm thread for secure panel mounting. Its IP68 rating ensures dust and waterproof protection, making it ideal for industrial, outdoor, and harsh environments. The nickel-plated brass housing and gold-plated contacts provide excellent corrosion resistance and reliable signal transmission.

Advantages

• IP68 dust and waterproof for outdoor and industrial use
• Cat.6A supports 10 Gigabit Ethernet and 500 MHz bandwidth
• Short design saves space in tight installations
• M23.5 x 1.5 mm thread for secure panel mounting
• Robust nickel-plated brass housing with gold-plated contacts

Suitable for

• Industrial network connections
• Outdoor Ethernet installations
• Harsh environment applications
• Panel-mounted couplers

Key specifications

• Connector type: RJ45 female to RJ45 female
• Network standard: Cat.6A (Category 6A)
• Shielding: FTP (Foiled Twisted Pair) / Shielded
• IP rating: IP68
• Mounting type: Panel mount
• Thread size: M23.5 x 1.5 mm
• Design: Short construction
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Housing material: Nickel-plated brass
• Contact plating: Gold-plated
• Operating temperature: -20 °C to 85 °C
• Installation hole diameter: Approx. 23.5 mm
• Colour: Metallic

Recommendations

For optimal performance, use with Cat.6A or higher rated cables. Ensure proper sealing of the connector in outdoor installations to maintain IP68 protection.
