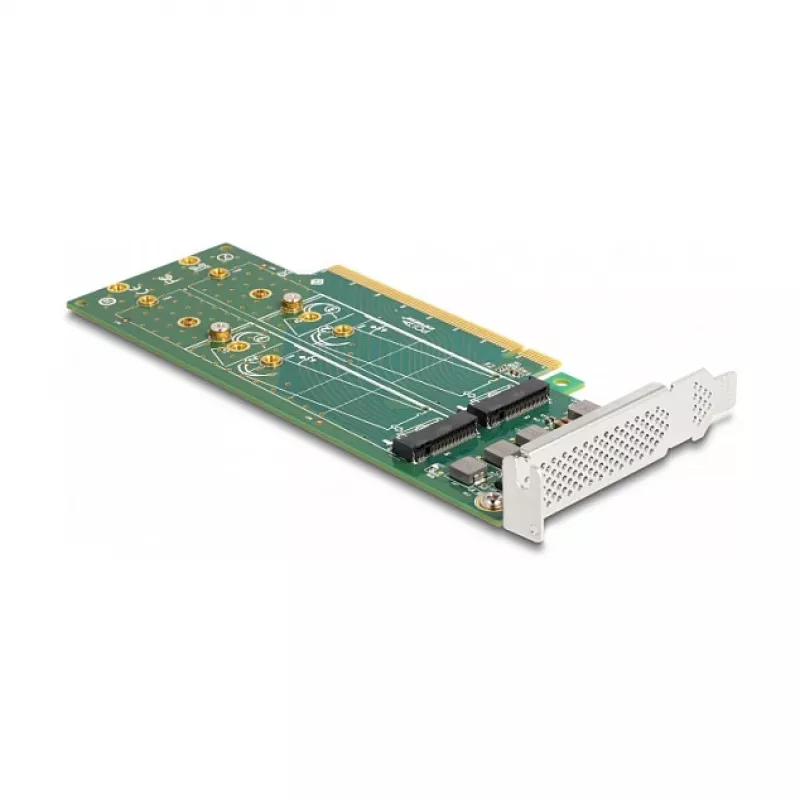

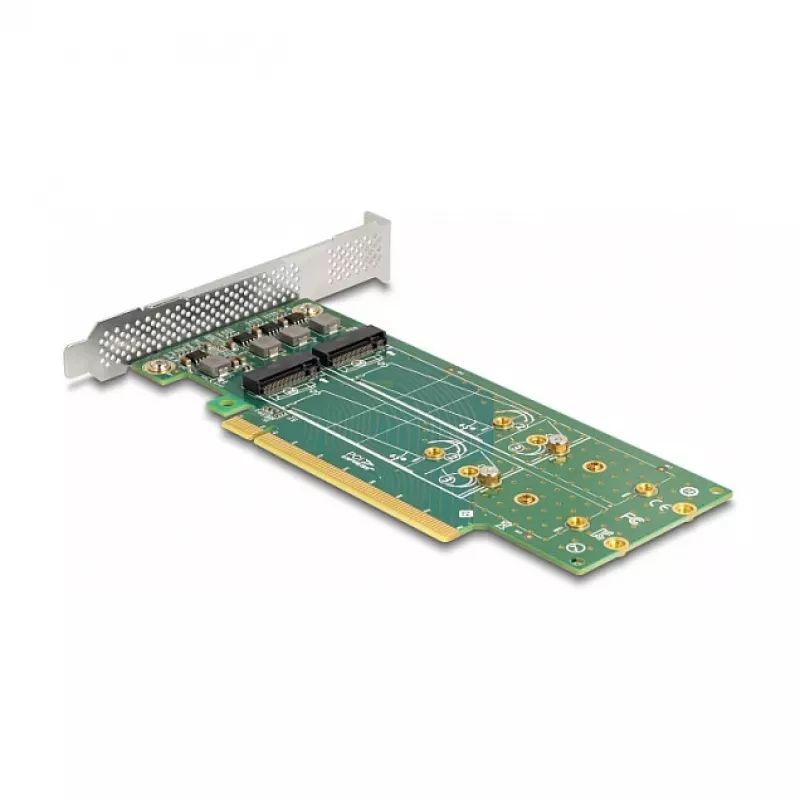

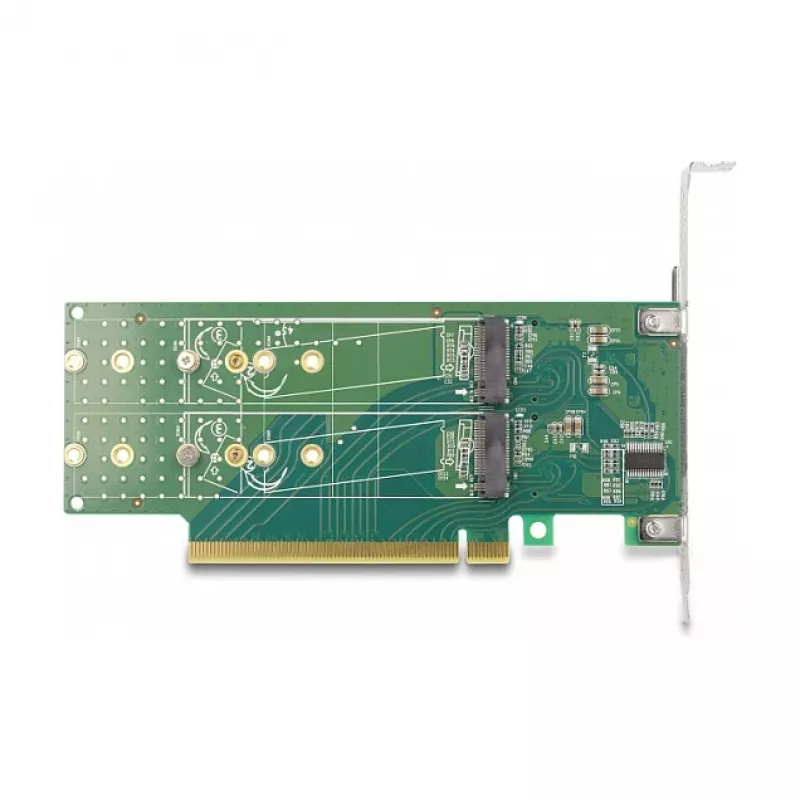

DeLOCK PCI Express 4.0 x16 Card to 4 x internal NVMe M.2 Key M 110 mm

This PCI Express 4.0 x16 card from DELOCK provides four internal NVMe M.2 Key M slots to expand PC storage. It supports M.2 22110, 2280 and 2260 form factors and connects via the host PCIe interface. The card is intended for installation into a PCIe x16 slot and has a metallic finish.

Advantages

The card allows connection of up to four NVMe M.2 SSDs on a single PCIe x16 slot, supporting modern M.2 formats for flexible storage expansion. Its compatibility with PCIe 4.0 enables high-bandwidth transfer when used with a compatible motherboard and SSDs. The low-profile metallic design fits standard PC cases and the internal output interface uses M.2 Key M sockets for direct NVMe drives.

Suitable for

Key specifications

How to use

Install the card into an available PCIe x16 slot on the motherboard. Insert up to four M.2 NVMe SSDs into the M.2 Key M sockets and secure them according to the motherboard or card mounting points. Ensure the system BIOS/UEFI and operating system support NVMe devices. Configure drives in the OS or RAID controller software if required.

Recommendations

To use more than one M.2 slot simultaneously, enable PCIe bifurcation (slot splitting) in the motherboard BIOS/UEFI so the PCIe x16 lane is divided for multiple ports; without bifurcation only the first M.2 slot will function. Verify motherboard support for PCIe 4.0 bifurcation and update firmware if needed.
