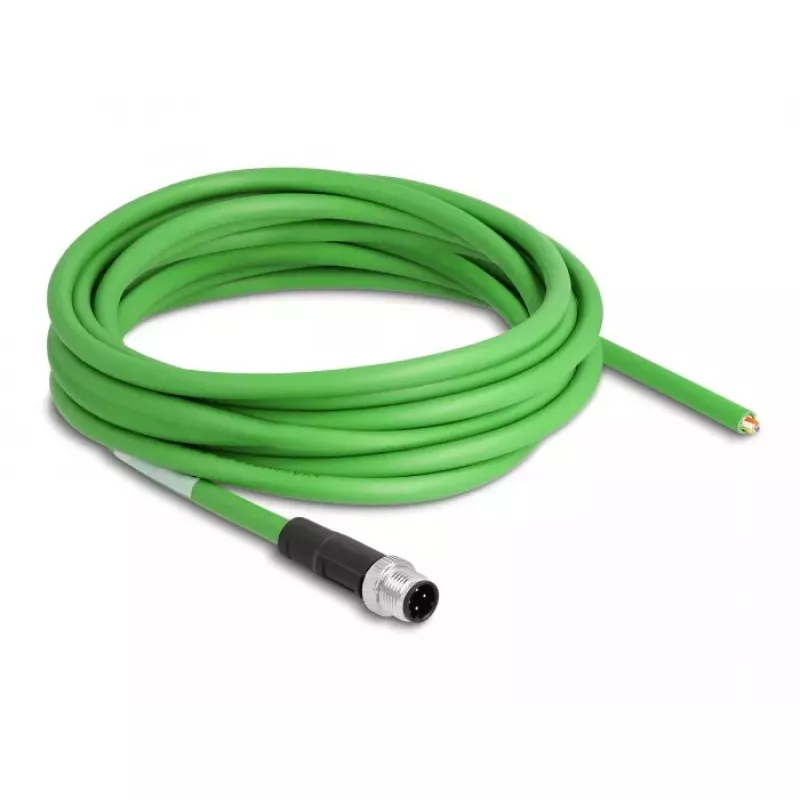

DeLOCK Network cable M12 4 pin D-coded open wire ends TPU 5 m

This industrial Ethernet cable by DELOCK connects devices with M12 connectors and features a 4‑pin D‑coded interface with open wire ends for direct connection to devices or distribution boxes. The 5 m length allows flexible placement in machine control and automation environments while supporting reliable data transmission in demanding industrial settings.

Advantages

The TPU cable jacket provides high flexibility and mechanical durability suitable for drag chain applications and areas with frequent movement. The cable is resistant to oil and UV exposure, meeting industrial requirements for long‑term operation. Open wire ends allow easy custom termination and integration into existing wiring systems.

Suitable for

• Machine control systems
• Industrial automation networks
• Connection to distribution boxes and terminal panels
• Drag chain installations and moving machinery

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 87850
• EAN: 4043619878505
• Connector: M12, 4‑pin, D‑coded
• Ends: Open wire ends
• Cable jacket material: TPU (thermoplastic polyurethane)
• Length: 5 m
• Properties: Oil resistant, UV resistant, suitable for drag chains

How to use

Prepare the open wire ends by stripping the insulation to the required length, then terminate them according to the target device or distribution box wiring scheme. Securely fix the M12 connector to the corresponding port on the mating device, observing the D‑coding orientation. Route the cable to avoid sharp bends and secure it in the drag chain or cable trays as needed.

Recommendations

For reliable long‑term operation, verify compatibility of pinout and shielding with connected devices before final installation, and avoid exposure to temperatures or chemicals outside the TPU cable specifications.
