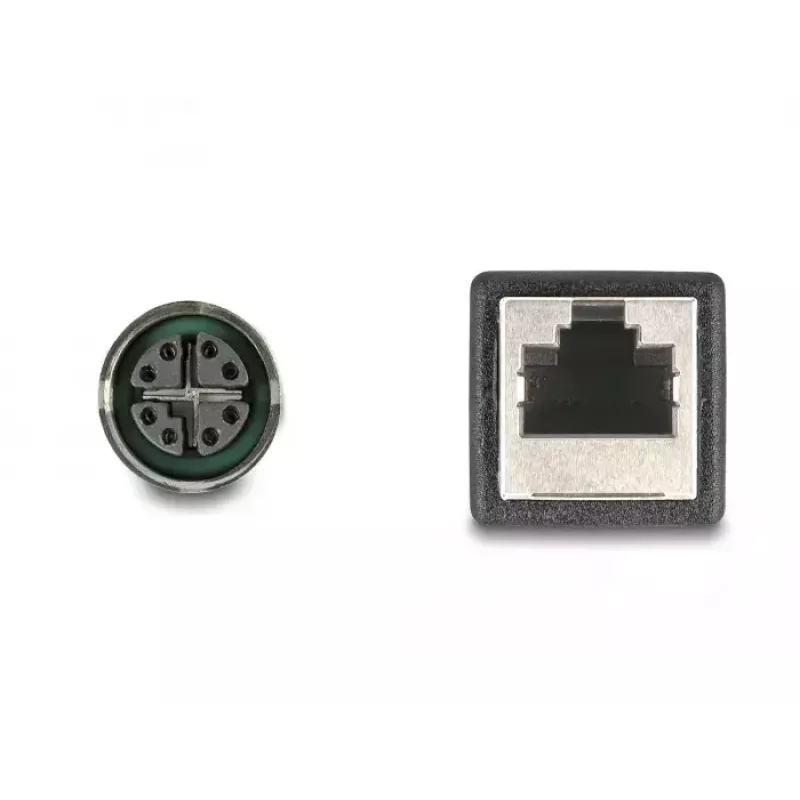

DeLOCK M12 Adapter Cable X-coded 8 pin female to RJ45 female 50 cm

The DeLOCK M12 Adapter Cable X-coded 8 pin female to RJ45 female 50 cm is an industrial interface cable designed to connect devices with an M12 X-coded 8-pin female connector to equipment with an RJ45 female port. With a 50 cm length and rugged construction, the cable supports reliable data transmission in industrial environments such as machine control and automation systems.

Advantages

The adapter cable provides a compact and robust connection between M12 X-coded interfaces and standard RJ45 ports, reducing the need for additional converters. Its X-coded 8-pin M12 connector supports high-speed signal transmission while the short 50 cm length minimises cable clutter. The DeLOCK cable is intended for industrial use and offers secure mating and a stable electrical connection.

Suitable for

• Connecting sensors, actuators or field devices with M12 X-coded 8-pin female connectors to network equipment with RJ45 female ports
• Machine control and PLC interfaces in industrial automation
• Factory-floor Ethernet links where an M12 to RJ45 transition is required

Key specifications

• Brand: DELOCK
• Model / MPN: 60070
• EAN: 4043619600700
• Connector A: M12 X-coded 8 pin female
• Connector B: RJ45 female
• Length: 50 cm
• Category: Cable interface and gender adapters

How to use

Align the M12 X-coded 8-pin female connector with the mating male M12 X-coded plug and hand-tighten the coupling nut until secure. Plug the RJ45 female connector into the corresponding male RJ45 plug. Verify correct seating and, if applicable, secure any additional strain relief or mounting provided by the equipment. Use the cable within specified environmental and electrical conditions of connected devices.

Recommendations

Use this adapter in industrial Ethernet applications where a direct M12 X-coded to RJ45 connection is required. Avoid mechanical stress, excessive bending, and exposure to environments beyond the devices' rated protection. Confirm compatibility with network speed and signalling standards of connected equipment before installation.
