DeLOCK M.2 Card to 2 x Serial RS-232 DB9 PCIe 2.1

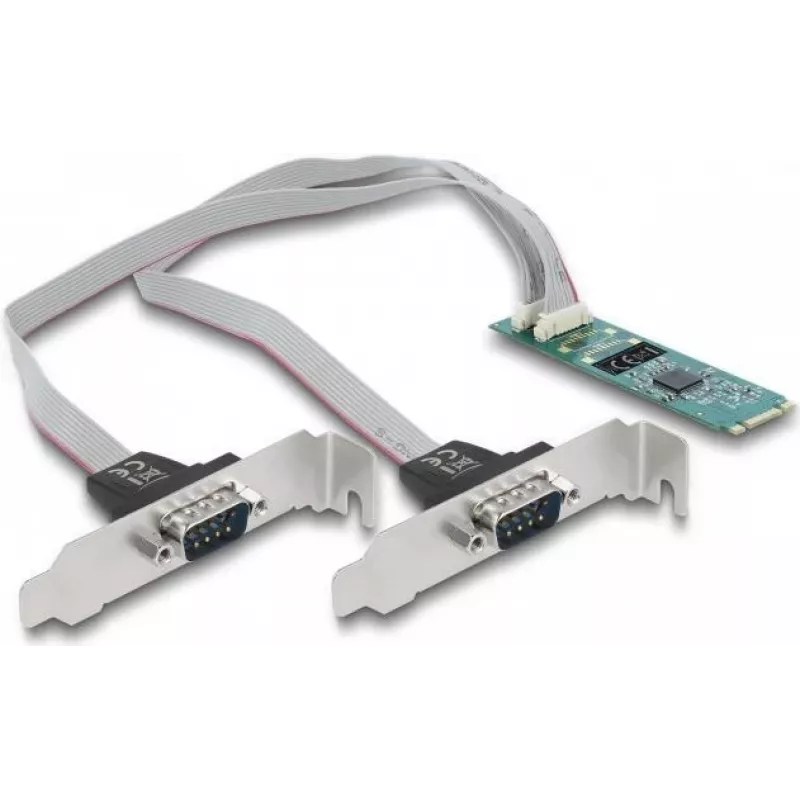

The DeLOCK M.2 Card to 2 x Serial RS-232 DB9 (MPN 95270) is an internal expansion card that provides two external RS-232 serial ports via a PCIe 2.1 compatible M.2 interface. The compact card is supplied with both standard and low-profile slot brackets and RS-232 cables for installation in various computer cases and supports connection of legacy serial equipment to modern systems.

Advantages

The card offers two DB9 RS-232 ports on an M.2 PCIe 2.1 form factor, allowing integration of serial devices without occupying a full-size PCI slot. It includes standard and low-profile brackets and RS-232 cables for flexible installation. The design supports a wide range of serial devices and is compatible with common Windows and Server operating systems.

Suitable for

Key specifications

How to use

Install the M.2 card into a compatible M.2 PCIe slot on the motherboard, secure the chosen slot bracket (standard or low-profile) to the case, and connect the supplied RS-232 cables from the card’s internal connector to the external DB9 brackets. After assembly, connect serial devices to the external DB9 ports and install any required drivers for your Windows or Server operating system.

Recommendations

Ensure the motherboard has an available M.2 PCIe slot that supports add-in cards and verify driver compatibility with your operating system before installation. Use the supplied brackets and cables for reliable external port mounting and secure cable routing to prevent strain on connectors.
