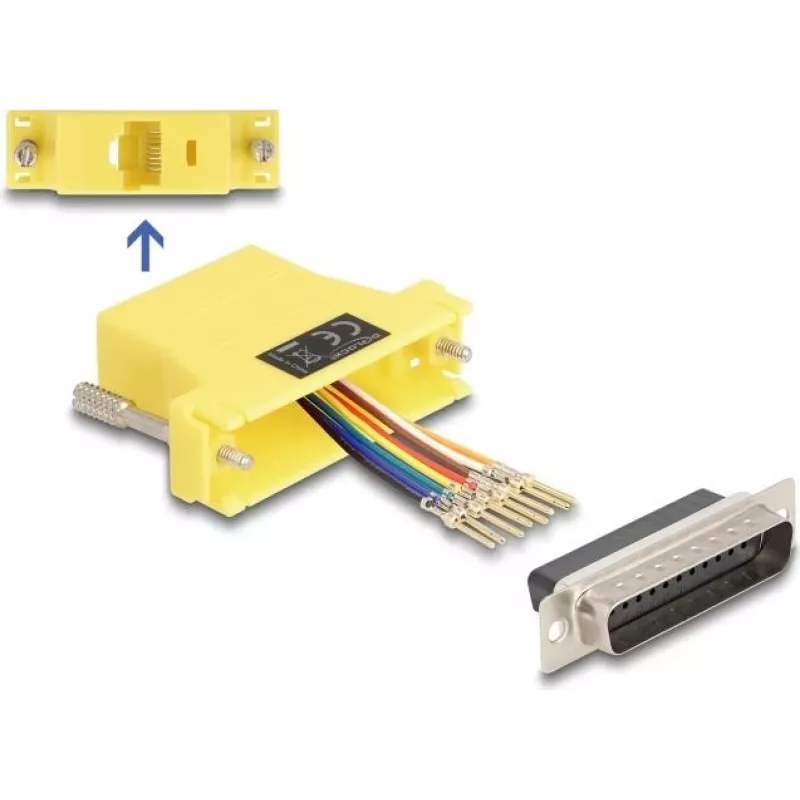

DeLOCK D-Sub 25 pin female to RJ45 female Assembly Kit yellow VGA RJ-45

This Delock adapter allows expansion of a serial interface using a standard Cat.5 / 5e / 6 cable. The D-Sub 25 pin female to RJ45 female assembly kit provides a VGA host interface and an RJ-45 output in a yellow housing. The connector enables individual pin assignment by inserting the cable conductor into the desired hole and locking it into the housing for a reliable connection. Product dimensions: 40 mm (W) x 55 mm (D) x 16 mm (H).

Advantages

The assembly kit supports use of widely available Cat.5 / 5e / 6 cables to extend or adapt a D-Sub 25 serial interface. Individual pin assignment is possible for custom wiring. The compact housing and RJ45 female output simplify integration into systems where space is limited and color coding improves visual identification.

Suitable for (tasks / use cases)

• Extending or relocating a D-Sub 25 serial connection over twisted-pair cable
• Custom pinout wiring for serial or parallel signal routing
• Temporary field wiring and quick repairs using standard RJ45 patch cable
• Applications requiring compact adapter modules with visible color coding

Key specifications

• Brand: DELOCK
• Model / MPN: 67116
• EAN: 4043619671168
• Connector A: D-Sub 25 pin female (VGA host interface)
• Connector B: RJ45 female
• Supported cable types: Cat.5 / 5e / 6
• Color: yellow
• Dimensions: 40 x 55 x 16 mm (W x D x H)

How to use

Prepare the Cat.5 / 5e / 6 cable by stripping the outer jacket and separating the individual conductors. Insert each conductor into the chosen hole of the D-Sub 25 connector according to the required pin assignment. Press the conductor into place until it locks into the housing. After wiring, secure the assembled connector in the device or panel and plug a matching RJ45 cable into the RJ-45 female output to complete the connection.

Recommendations

For reliable signal transmission, use shielded or high-quality Cat.5e / Cat.6 cable where appropriate and verify pin assignment before powering connected equipment. Ensure conductors are fully seated and locked to avoid intermittent connections.
