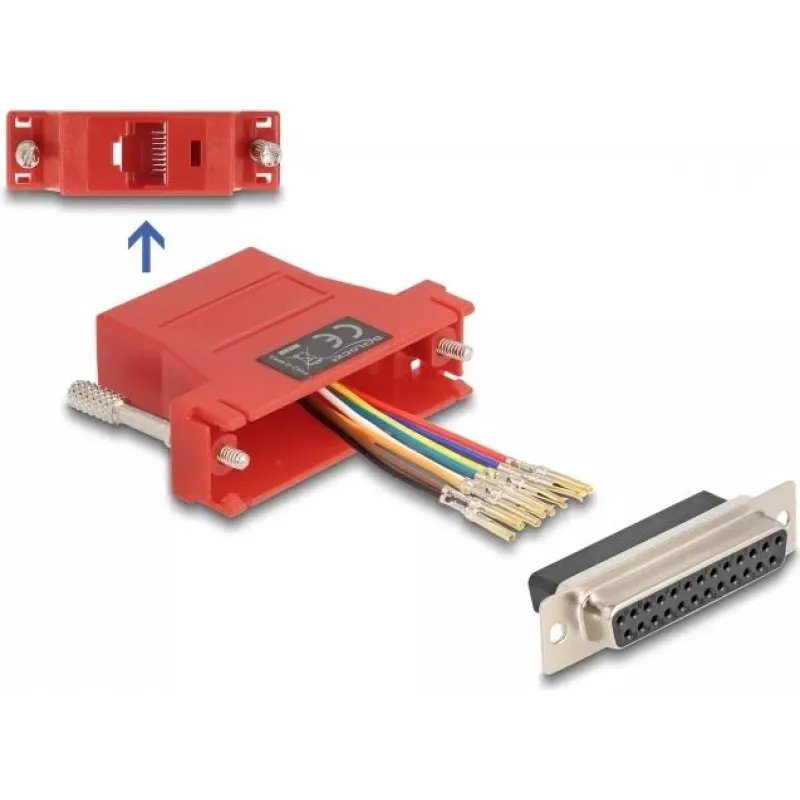

DeLOCK D-Sub 25 pin female to RJ45 female Assembly Kit red VGA RJ-45

This DeLOCK adapter converts a D-Sub 25 pin female (VGA) connector to an RJ45 female connector, allowing a serial interface to be extended using a Cat.5 / 5e / 6 cable. The compact assembly kit (40 × 55 × 16 mm) is supplied as a red housing with an RJ45 output and a D-Sub 25 female host interface and is intended for custom pin assignment by the installer.

Advantages

The kit enables flexible pin assignment so any required serial signal mapping can be implemented over standard network cable. Its compact size and simple assembly make it convenient for space‑limited installations. The red housing provides clear visual identification.

Suitable for

• Extending serial D-Sub 25 connections over Cat.5 / 5e / 6 cable
• Custom pin mapping between D-Sub 25 and RJ45
• Installation scenarios where compact adapter modules are required

Key specifications

• Brand: DELOCK
• Model / MPN: 67118
• EAN: 4043619671182
• Connector A: D-Sub 25 pin female (VGA host interface)
• Connector B: RJ45 female (output)
• Housing color: red
• Dimensions: 40 mm (W) × 55 mm (D) × 16 mm (H)
• Cable type (required): Cat.5 / 5e / 6

How to use

Assemble the adapter according to the supplied kit instructions. Terminate a Cat.5 / 5e / 6 cable to the RJ45 connector and insert the wire ends into the desired holes of the D-Sub 25 connector according to the chosen pin assignment. Ensure each wire is fully seated and the connector locks into the housing. Finally, connect the D-Sub 25 female to the VGA/serial host device and the RJ45 to the corresponding cable run.

Recommendations

Verify the pinout required by the connected devices before wiring. Use quality Cat.5e or Cat.6 cable for reliable signal transmission and keep cable runs within recommended lengths for the specific serial protocol in use.
