DeLOCK 95268 Internal RJ-45 Adapter Mini PCI Express 2.5 Gbit/s

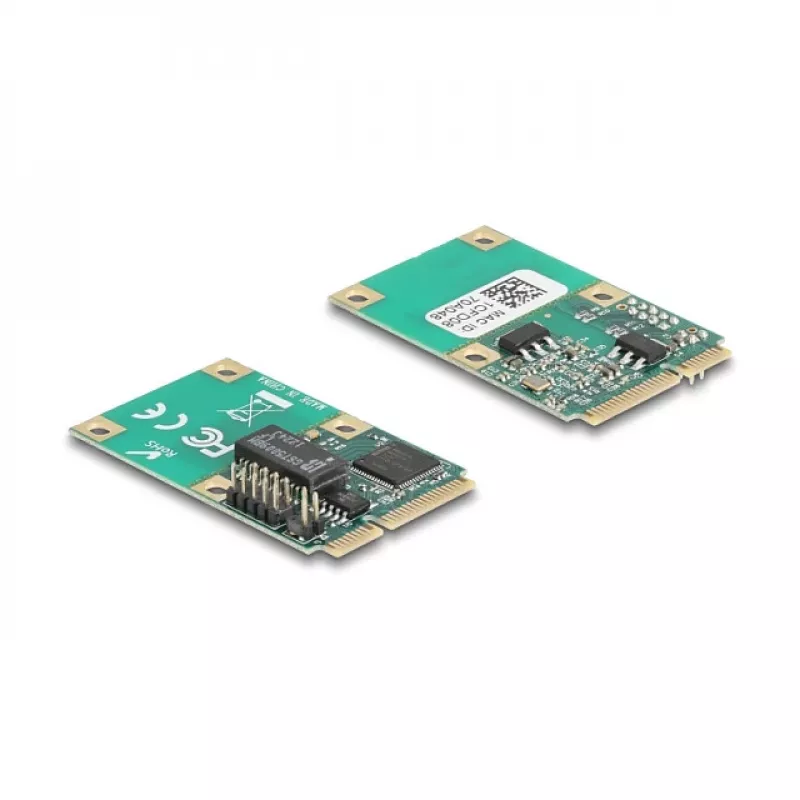

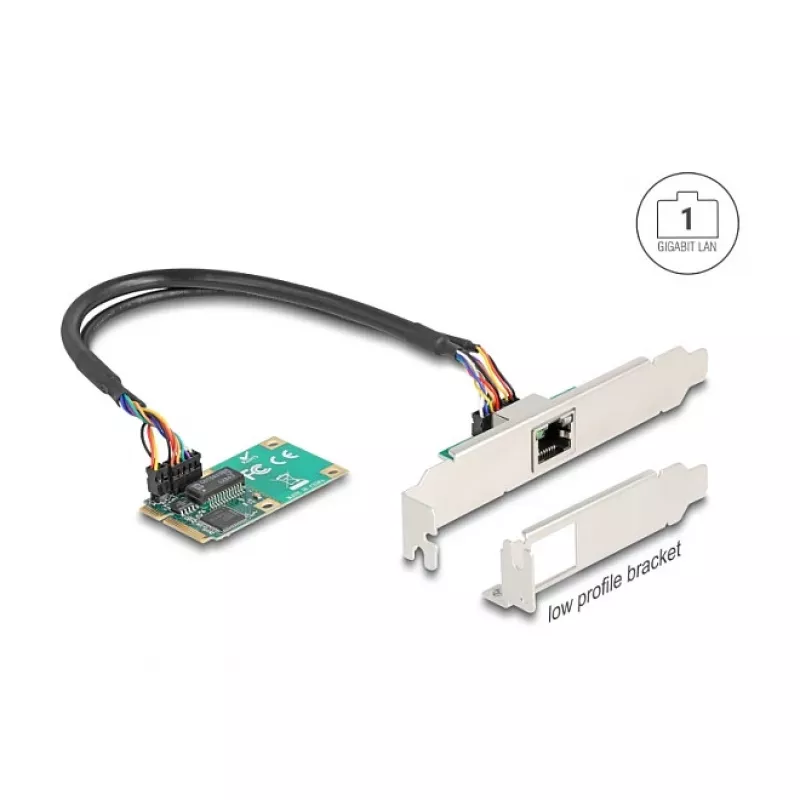

The DeLOCK 95268 is an internal Mini PCI Express adapter that adds one Gigabit RJ-45 network interface to a compatible system. The module supports data transfer rates up to 2.5 Gbit/s and can be installed using the slot bracket so the RJ-45 connector is accessible from the chassis exterior. The PCB is perforated so the card can be shortened from full size to half size to fit different Mini PCIe slots.

Advantages

This internal RJ-45 adapter uses a Mini PCI Express host interface for compact integration in desktop or embedded systems. It supports higher-than-Gigabit speeds up to 2.5 Gbit/s for improved network throughput compared with standard 1 Gbit connections. The bracketed output makes the Ethernet port externally accessible while keeping the module installed inside the chassis.

Suitable for

Key specifications

How to use

Install the DeLOCK 95268 into an available Mini PCIe slot on the motherboard, or use the slot bracket to route the RJ-45 connector to the chassis opening. If required, break the perforated section to shorten the card to half-size before installation. Connect a network cable to the external RJ-45 port; ensure system drivers for the adapter are installed or available for your operating system version.

Recommendations

Use a high-quality Cat5e or better Ethernet cable to achieve 2.5 Gbit/s performance. Verify driver availability for your operating system and confirm that the Mini PCIe slot provides the necessary lanes and power for network operation.
