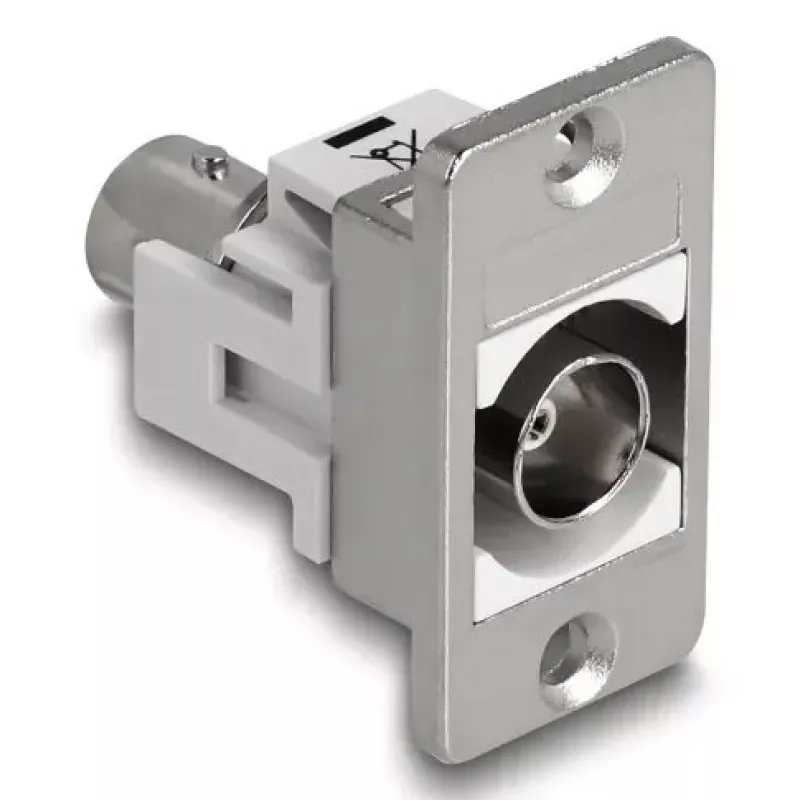

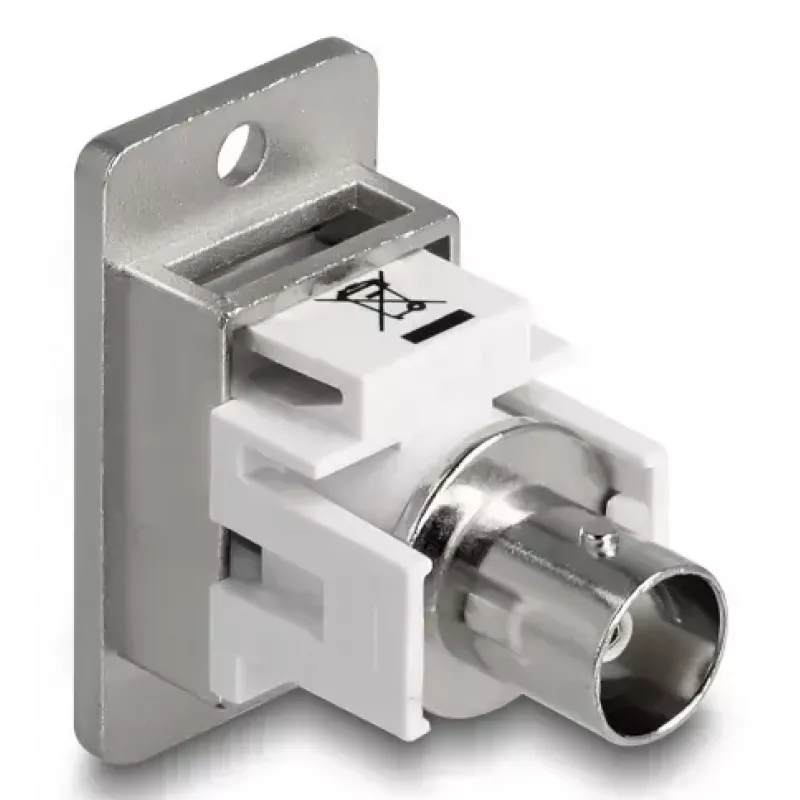

DeLOCK 90880 BNC Socket Outlet Silver White 50 Ω

The DeLOCK 90880 BNC Socket Outlet is a panel-mount BNC connector with 50 Ω input impedance, designed for secure installation in a housing using screws. The compact housing combines plastic and zinc construction and is finished in silver white, making the outlet suitable for installations where a durable, low-profile BNC connection is required.

Advantages

The BNC socket offers a standardized 50 Ω impedance for reliable signal transmission and a screw-mount design for secure fixation in panels or enclosures. Its compact dimensions (19 mm × 32.5 mm × 35.5 mm) and metal/plastic housing provide a balance of mechanical strength and lightweight construction. The silver white finish ensures a neutral appearance compatible with many installations.

Suitable for

Key specifications

How to use

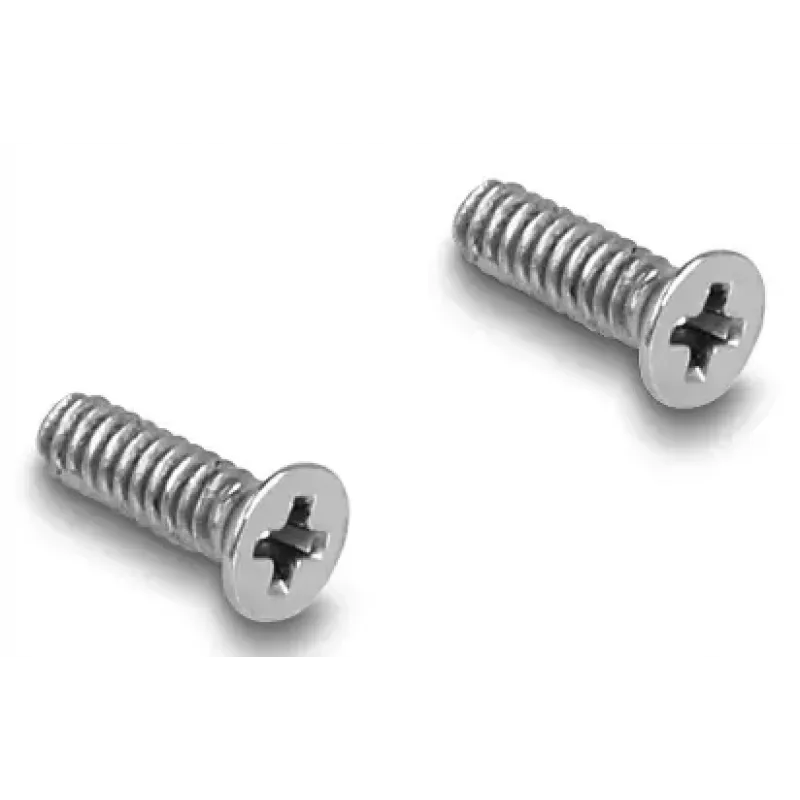

Cut a matching cut-out in the panel or housing and position the DeLOCK 90880 BNC socket in place. Secure the connector using the provided screw holes to ensure stable mechanical fixation. After mounting, connect a BNC cable by inserting the cable's BNC plug into the socket and locking it in place with the bayonet coupling. Verify signal continuity and impedance compatibility with the connected equipment before regular operation.

Recommendations

Use the connector in environments that match its 50 Ω impedance specification and ensure screws are tightened to avoid mechanical stress on the housing. For best signal performance, use quality BNC cables and avoid excessive bending near the connector.
