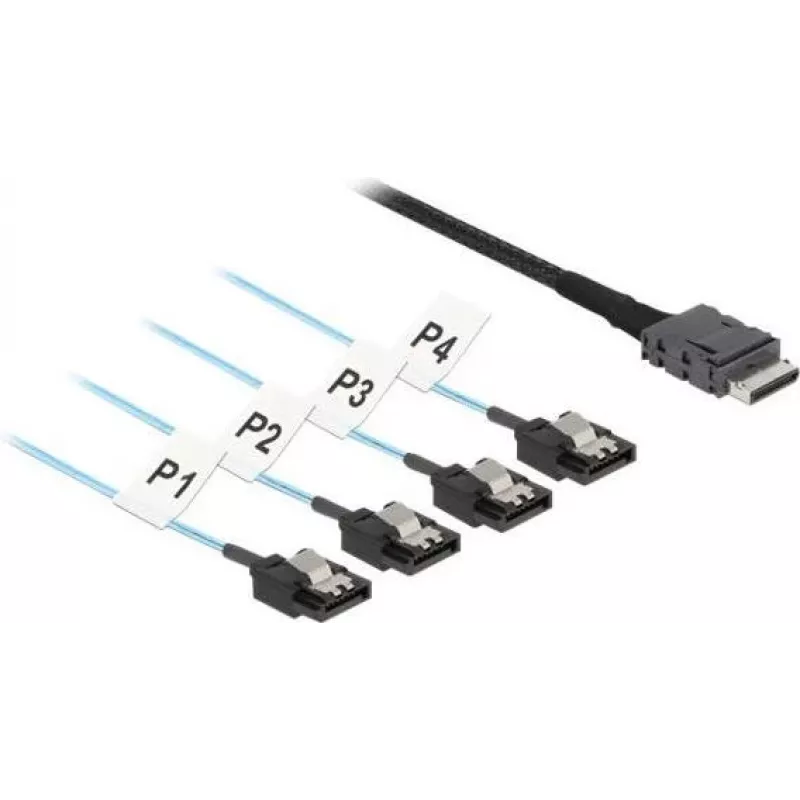

DeLOCK 85468 SAS Cable 0.5m 12 Gbit/s Black OCuLink SFF-8611 to SATA

The DeLOCK 85468 is a 0.5 m OCuLink (SFF-8611) to four SATA 7‑pin cable designed for internal PC use. It enables connection of a controller or host with an OCuLink SFF-8611 port to up to four SATA drives, supporting data transfer rates up to 12 Gbit/s. The cable is black and supplied in a polybag.

Advantages

This cable supports high-speed 12 Gbit/s data transfer and combines one OCuLink SFF-8611 connector with four SATA 7‑pin connectors, enabling a straightforward internal connection between SAS/OCuLink controllers and SATA drives. The SATA connectors include metal clips for a secure snap-in connection and the short 0.5 m length helps reduce cable clutter inside the system.

Suitable for

• Connecting an internal OCuLink (SFF-8611) controller or host to multiple SATA hard drives or SSDs
• Use in desktop workstations, servers or NAS enclosures requiring internal SAS-to-SATA cabling
• Short internal cable runs where 0.5 m length is sufficient

Key specifications

• Cable length: 0.5 m
• Connector 1: 1 x OCuLink (SFF-8611)
• Connector 2: 4 x SATA 7‑pin
• Maximum data rate: 12 Gbit/s
• Colour: Black

How to use

Power off the system before installing the cable. Plug the OCuLink SFF-8611 connector into the corresponding controller or host port. Connect the four SATA 7‑pin connectors to the SATA ports on the internal drives, ensuring each connector snaps in via the metal clip. After all connections are secure, power on the system and verify drive detection in BIOS/OS.

Recommendations

For reliable operation, use the cable for internal connections only and avoid excessive bending or strain. Keep the cable away from heat sources and ensure connectors are fully seated before powering the system.
