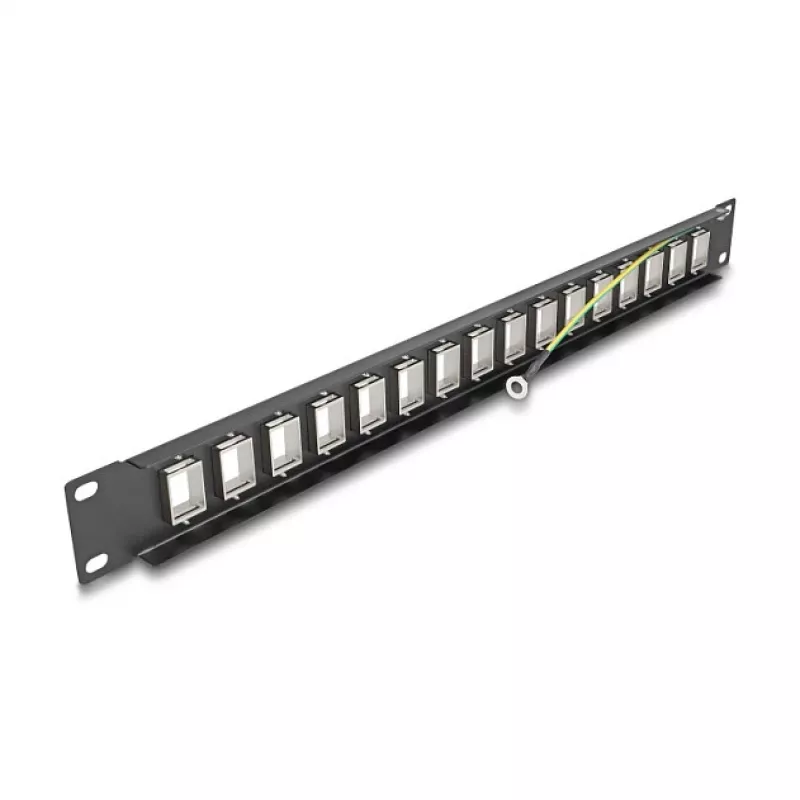

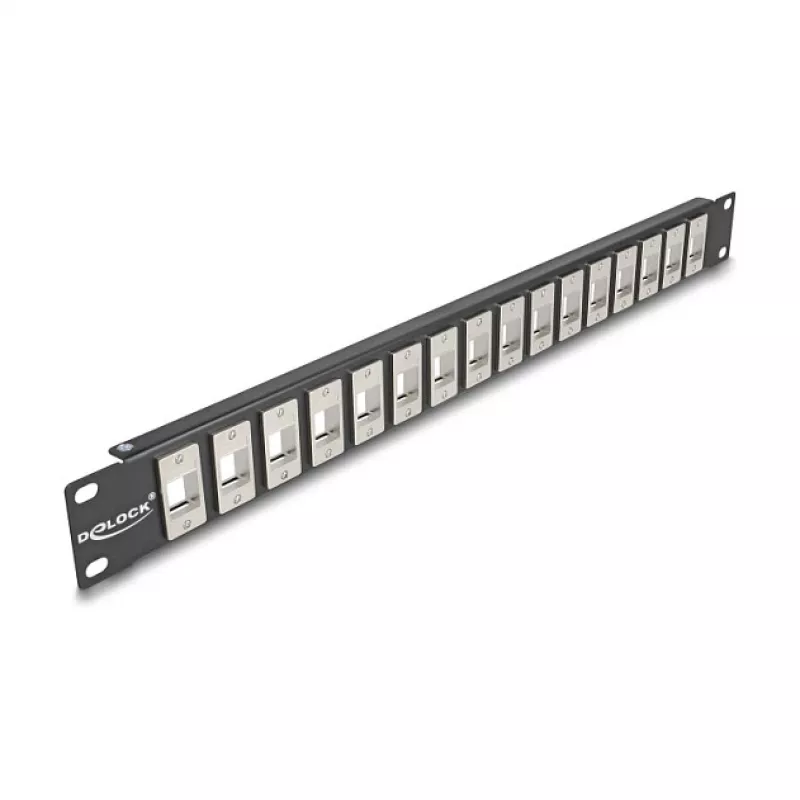

DeLOCK 19 inch Keystone Patch Panel 16 port 1U black

The DeLOCK 19" Keystone Patch Panel 16 port 1U black is a rack-mountable module designed to fit a standard 19" cabinet. It provides 16 keystone-compatible openings for modular jacks and connectors, enabling neat organization and connection of network cabling. The panel's compact dimensions (44 mm width, 482 mm depth, 12 mm height) and black finish suit professional rack installations where space-efficient cable management is required.

Advantages

The patch panel supports up to 16 keystone modules for flexible connector configurations and easy reconfiguration. Its 1U form factor and standardized 19" mounting allow straightforward installation in server racks and network cabinets. The black colour offers a uniform appearance in typical IT environments, and the durable construction ensures stable mounting and reliable alignment of keystone modules.

Suitable for

• Organizing Ethernet, telephone or multimedia keystone jacks
• Small to medium-sized network racks and server cabinets
• Structured cabling installations requiring modular connector options

Key specifications

• Manufacturer: DELOCK
• Model: 66758
• EAN: 4043619667581
• Ports quantity: 16 keystone openings
• Form factor: 1U for 19" rack
• Colour: Black
• Dimensions: 44 mm (W) x 482 mm (D) x 12 mm (H)

How to use

Install the panel into a standard 19" rack or cabinet at a chosen 1U position and secure it with appropriate rack screws. Snap keystone modules into the 16 openings according to the required connector types (e.g., RJ45 jacks, phone jacks, or fibre adapters). Route and terminate cables to the rear side of installed modules and label ports as needed to maintain clear identification and orderly cable management.

Recommendations

For reliable performance, use compatible keystone modules and follow standard cabling practices. Ensure rack mounting hardware is tightened to prevent panel movement and avoid overbending cables when routing to the rear of modules.
