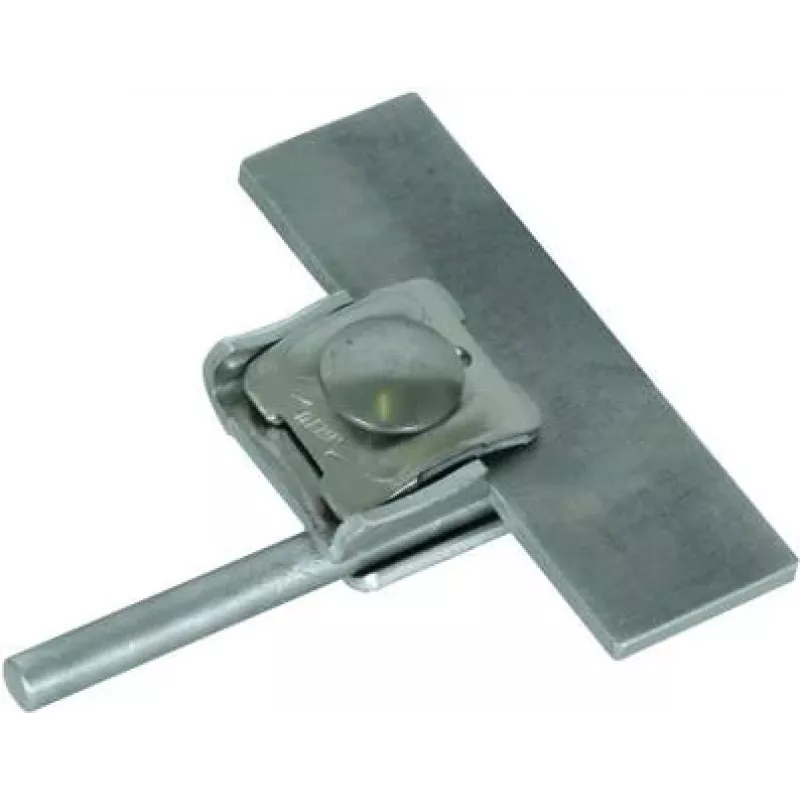

DEHN Seam Clamp 365031 for Rd 8-10 mm, Stainless Steel V2A, 100 kA Lightning Protection

DEHN Seam Clamp 365031 for Rd 8-10 mm, Stainless Steel V2A, 100 kA Lightning Protection
DEHN Seam Clamp 365031 for Rd 8-10 mm, Stainless Steel V2A, 100 kA Lightning Protection
R323
With an impulse current carrying capacity of 100 kA (10/350 µs), the DEHN Seam Clamp 365031 provides a robust connection point for lightning protection and earthing systems on standing seam roofs.OverviewThis seam clamp is engineered for secure attachment of round conductors with diameters from 8 to... Read More
Stock 10 Code 3508187 Brand DEHN Model 365031 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, November 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

With an impulse current carrying capacity of 100 kA (10/350 µs), the DEHN Seam Clamp 365031 provides a robust connection point for lightning protection and earthing systems on standing seam roofs.

Overview

This seam clamp is engineered for secure attachment of round conductors with diameters from 8 to 10 mm to standing seam profiles. Manufactured from stainless steel (V2A / 1.4301), it ensures long-term corrosion resistance and is suitable for use with copper, zinc, titanium zinc, stainless steel, and aluminium roof materials. The clamp meets the requirements of EN 62561-1 and is designed for exterior installation, offering UV resistance and reliable performance across a temperature range of -40°C to +80°C.

What stands out

  • High impulse current capacity: 100 kA (10/350 µs)
  • Corrosion-resistant stainless steel V2A construction
  • Compatible with multiple roof materials
  • Secure screw clamp connection with M8 thread
  • Wide operating temperature range

Technical details

  • Product type: Seam clamp
  • Application: Lightning protection, earthing, equipotential bonding
  • Material: Stainless steel V2A (1.4301)
  • Conductor type: Round conductor
  • Conductor diameter: Rd 8-10 mm
  • Mounting type: For standing seam roofs
  • Impulse current carrying capacity (10/350 µs): 100 kA
  • Standard compliance: EN 62561-1
  • Connection method: Screw clamp (M8)
  • Number of conductors: 1
  • Installation location: Exterior
  • UV resistance: Yes
  • Temperature range: -40°C to +80°C

Our verdict

The DEHN 365031 seam clamp delivers high-performance lightning protection with durable stainless steel construction, making it a reliable choice for standing seam roof installations.

Specifications
Brand
DEHN
Category
Seam Clamp
EAN
4013364055438
Maximum operating current
100 kA
Model
365031
MPN
365031
Product type
Seam Clamp
Test type
EN 62561-1
Weight
0.05 kg
