R2,396
PN850MThe DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.PN850MNATIVE ATX3.1FUTURE PROOFWith the ability to provide twice th... Read More
Stock 2 Code 301253 Brand Deepcool Model R-PN850M-FC0B-JGEU Warranty 5 Years

Shipping & Returns

Estimated delivery Tuesday, October 20
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
PN850M
The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.

PN850M
NATIVE ATX3.1

FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

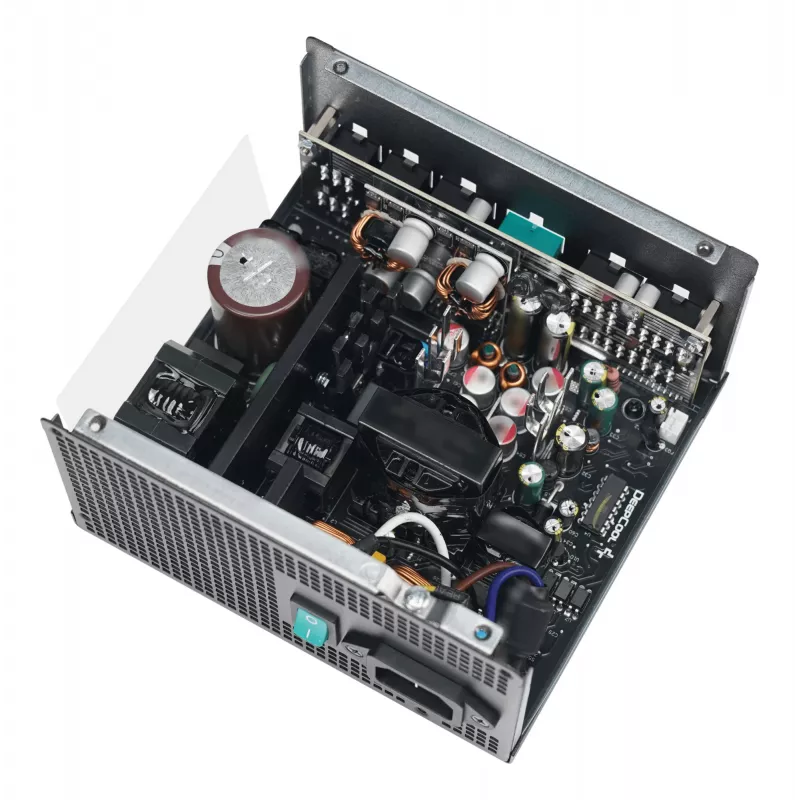

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER

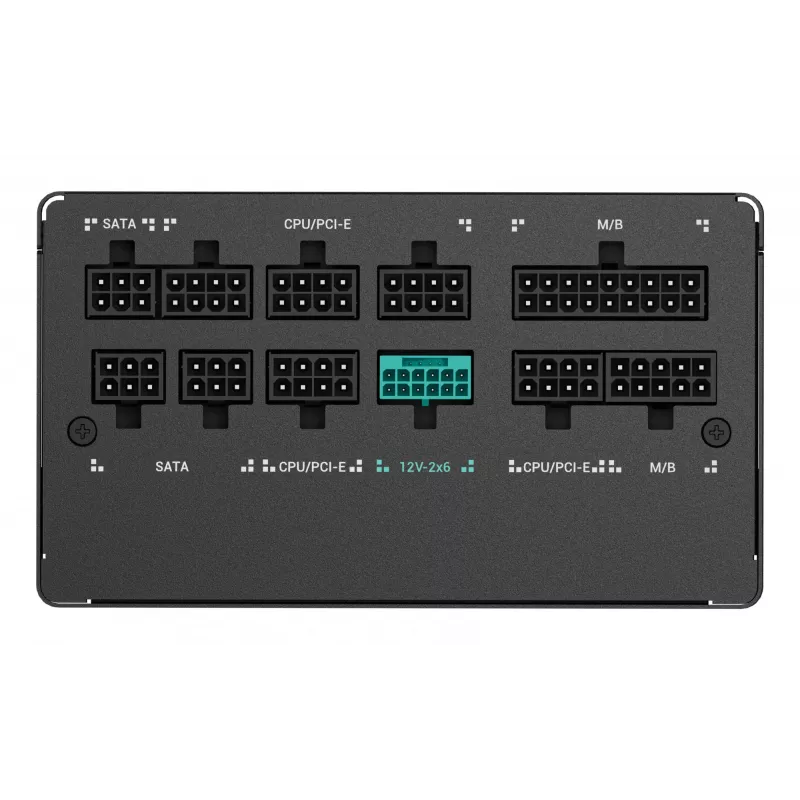

Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850M provides up to 600W for modern GPUs.

DYNAMIC FDB FAN

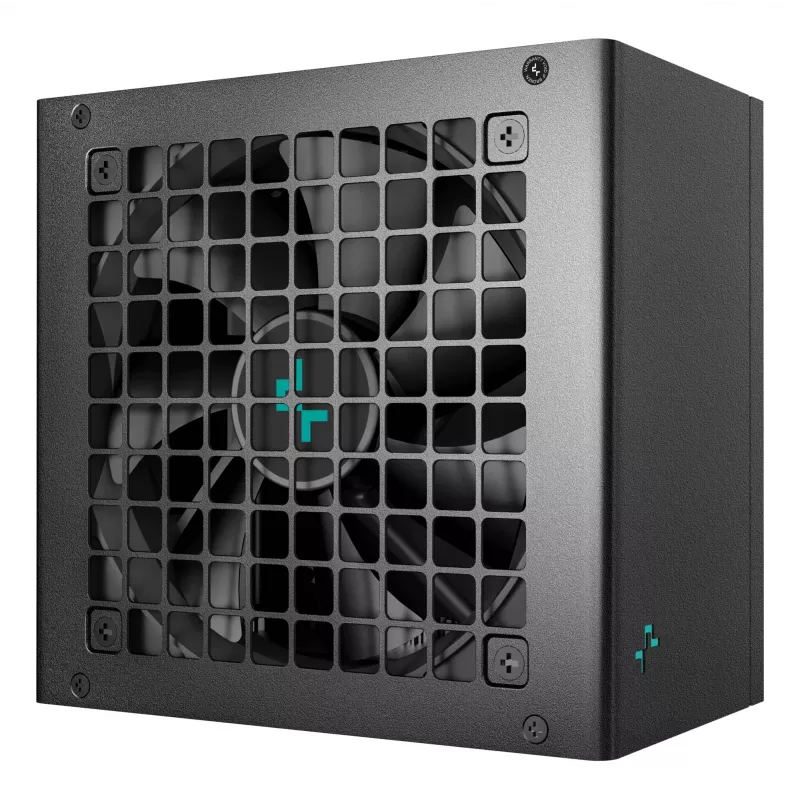

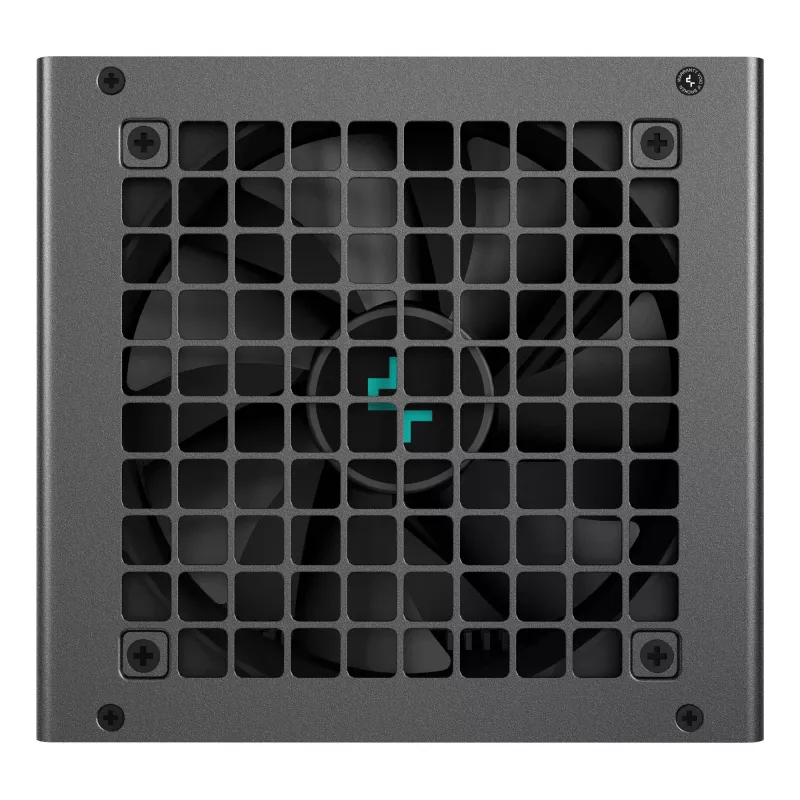

The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND
The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

EXCELLENT COVERAGE
The PN850M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Gamer Storm PN850M. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,570,690,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

Key Highlights
  • 850 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active 12 cm
  • Black
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
ATX power connector (20+4 pin)
Yes
ATX version
3.1
Bearing technology
FDB
Cable tie(s) included
Yes

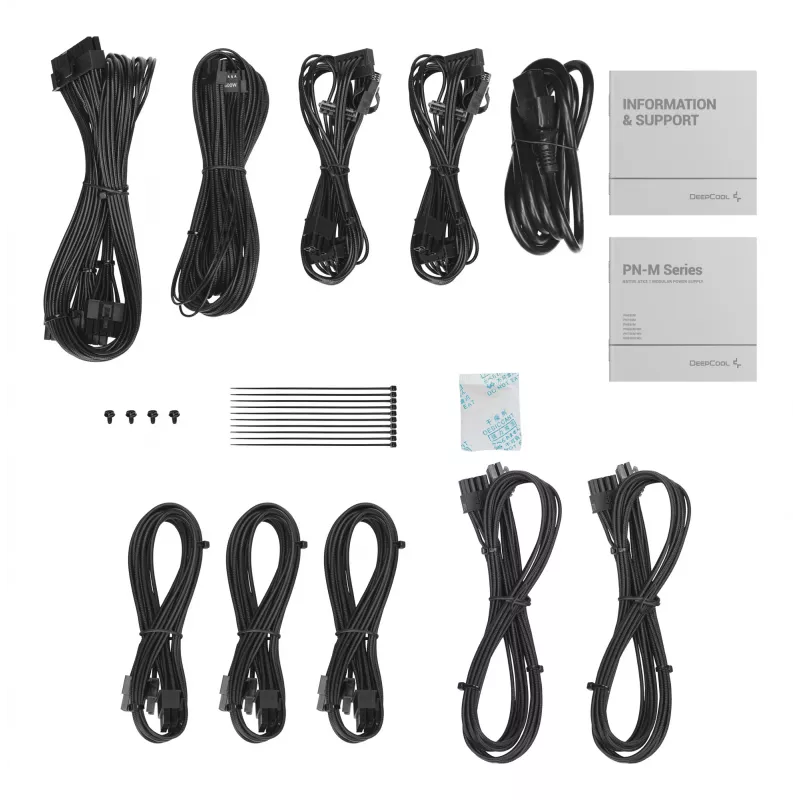

Cables included
AC
Cabling type
Fully-Modular
Combined power (+12V)
846 W
Combined power (+3.3V)
110 W
Combined power (+5V)
110 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Compliance certificates
CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Cooling type
Active
CPU power cable length
70 cm
CPU power connector (4+4 pin)
Yes
Depth
140 mm
Efficiency
90%
Fan diameter
12 cm
Fan location
Top
Height
86 mm
Hold time
16 ms
Input current
10 - 5 A
Max output current (+12V)
70.5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Mean time between failures (MTBF)
100000 h
Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
8
On/off switch
Yes
Operating temperature (T-T)
0 - 40 °C
Package type
Box
PCI Express power connectors (16-pin)
1
PCI Express power connectors (6+2 pin)
3
Peripheral (Molex) power cable length
930 mm
Peripheral (Molex) power connectors (4-pin)
2
Power Factor Correction (PFC) type
Active
Power Good signal delay range
100 - 150 ms
Power protection features
No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
450,570,690,810 mm
Sustainability certificates
ErP, Triman
Sustainability compliance
Yes
Total power
850 W
Width
150 mm
