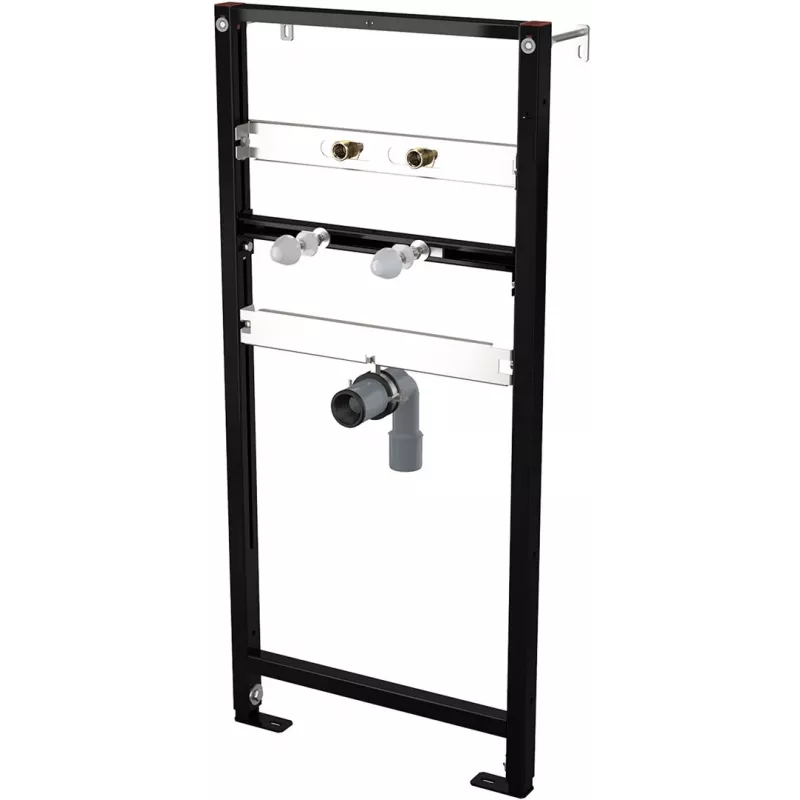

DEANTE Concealed Frame for Washbasin

The DEANTE Concealed Frame for Washbasin is a robust and versatile installation solution designed for wall-hung washbasins. Engineered for both drywall and solid wall applications, this frame provides exceptional load capacity and adjustability, ensuring a secure and customized fit for your bathroom project.

Advantages

This concealed frame offers a high load capacity of 400 kg, ensuring durability and safety. Its adjustable height and depth (155-235 mm) allow for flexible installation, while the adjustable washbasin mounting spacing (80-380 mm) accommodates various basin sizes. The galvanized steel construction provides excellent corrosion protection, and the included sound-insulating elements minimize noise transmission.

Suitable for

• Wall-hung washbasins in residential and commercial bathrooms
• Drywall and solid wall installations
• Projects requiring a self-supporting frame with integrated water and waste connections

Key specifications

• Brand: DEANTE
• Model: CST_UM01
• Product Type: Concealed Installation Frame
• Frame Material: Galvanized Steel
• Load Capacity: 400 kg
• Height Adjustment: Yes
• Depth Adjustment: Yes (155-235 mm)
• Washbasin Mounting Spacing: Adjustable (80-380 mm)
• Water Connection: G1/2"
• Waste Connection Diameter: DN50
• Installation Type: Drywall or Solid Wall
• Self-supporting: Yes
• Sound Insulation: Yes (includes sound-insulating elements)
• Corrosion Protection: Yes (galvanized finish)
• Included Components: Mounting bolts, waste elbow, reducers, sound insulation elements
• Frame Width: 500 mm
• Frame Height: 1120 mm

Recommendations

For optimal performance, ensure the frame is securely anchored to the wall structure. Professional installation is recommended to guarantee proper alignment and load distribution.
