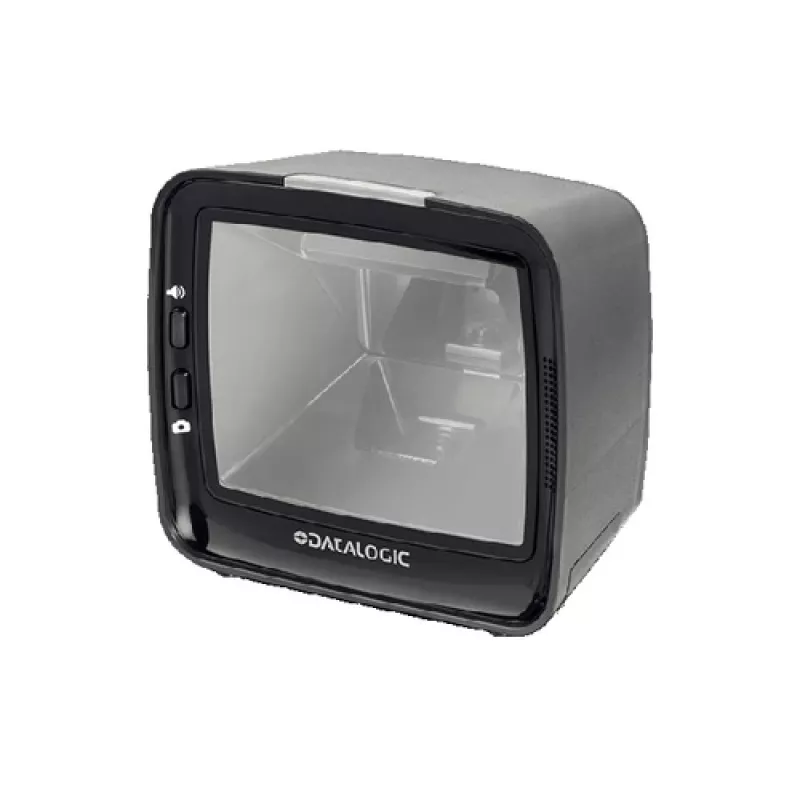

Datalogic Magellan 3410VSi 2D Omnidirectional Presentation Barcode Scanner M3410-010210-07104

The Datalogic Magellan 3410VSi is a high-performance 2D area imager barcode scanner designed for retail checkout, point-of-sale, and hospitality environments. Capable of reading both 1D and 2D barcodes omnidirectionally — including Digimarc barcodes — it streamlines scanning operations with minimal effort and maximum throughput.

Advantages

The Magellan 3410VSi features omnidirectional scanning with a wide 48° H x 37° V field of view, enabling fast and reliable reads from any angle. Datalogic's signature Green Spot technology provides instant visual feedback on successful reads, reducing errors and improving checkout speed. With IP52 dust and water resistance and a drop rating of 1.2 m to concrete, this scanner is built for demanding retail environments. Its support for multiple host interfaces — USB, RS-232, RS-485, and keyboard wedge — makes it easy to integrate with virtually any POS system.

Suitable for

• Retail checkout counters and point-of-sale stations requiring high-speed omnidirectional scanning
• Grocery and supermarket environments where both 1D and 2D barcodes must be read reliably
• Hospitality and ticketing applications needing fast, accurate presentation scanning

Key specifications

• Brand: Datalogic
• Model: Magellan 3410VSi
• MPN: M3410-010210-07104
• EAN: 5704174958703
• Scanning Technology: 2D Area Imager
• Scan Pattern: Omnidirectional
• Barcode Symbologies: 1D (linear), 2D (matrix), Digimarc barcodes
• Field of View: 48° H x 37° V
• Depth of Field (UPC 13 mil): 0 to 20.3 cm
• Illumination: Multiple diffused LEDs, 625 nm
• Good Read Indicator: Datalogic Green Spot technology
• Image Capture: Yes (JPEG, BMP)
• Interfaces: USB, RS-232, IBM 46XX (RS-485), keyboard wedge
• Form Factor: Presentation / in-counter
• IP Rating: IP52
• Drop Specification: 1.2 m to concrete
• Operating Temperature: 0 to 40 °C
• Power: 5 VDC
• Colour: Black
• Weight: 0.6 kg
• Dimensions: 152 x 152 x 142 mm

How to use

Mount the Magellan 3410VSi on a counter or integrate it flush into a countertop for in-counter use. Connect via the USB or RS-232 cable to your POS terminal. The omnidirectional scanning window reads items passed in front of it automatically, with the Green Spot confirming each successful read.

Recommendations

The Datalogic Magellan 3410VSi is an excellent choice for high-traffic retail environments that need a reliable, flexible barcode scanner capable of reading all modern barcode formats with minimal cashier effort.
