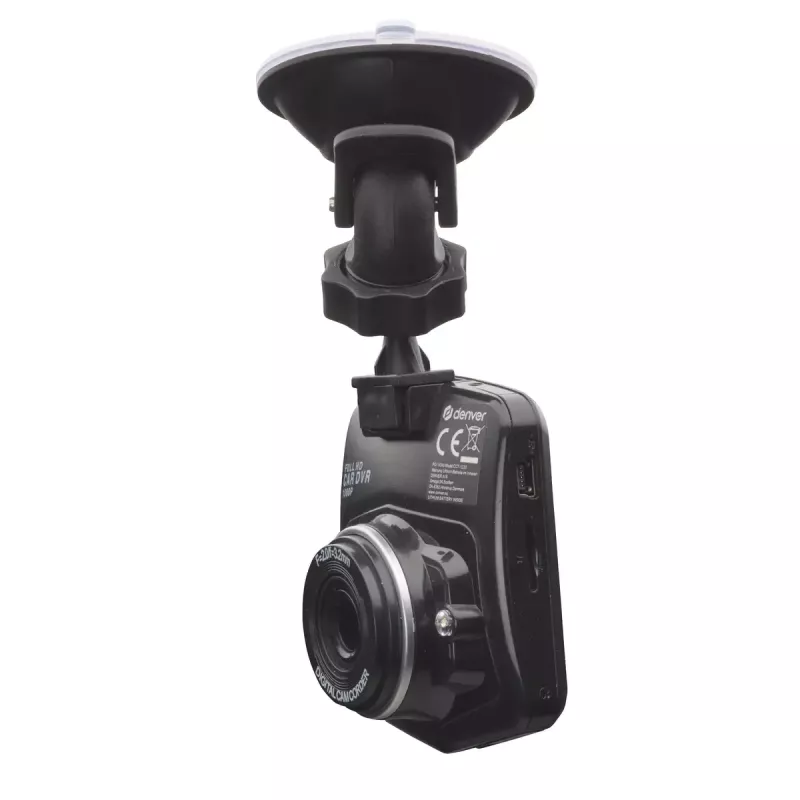

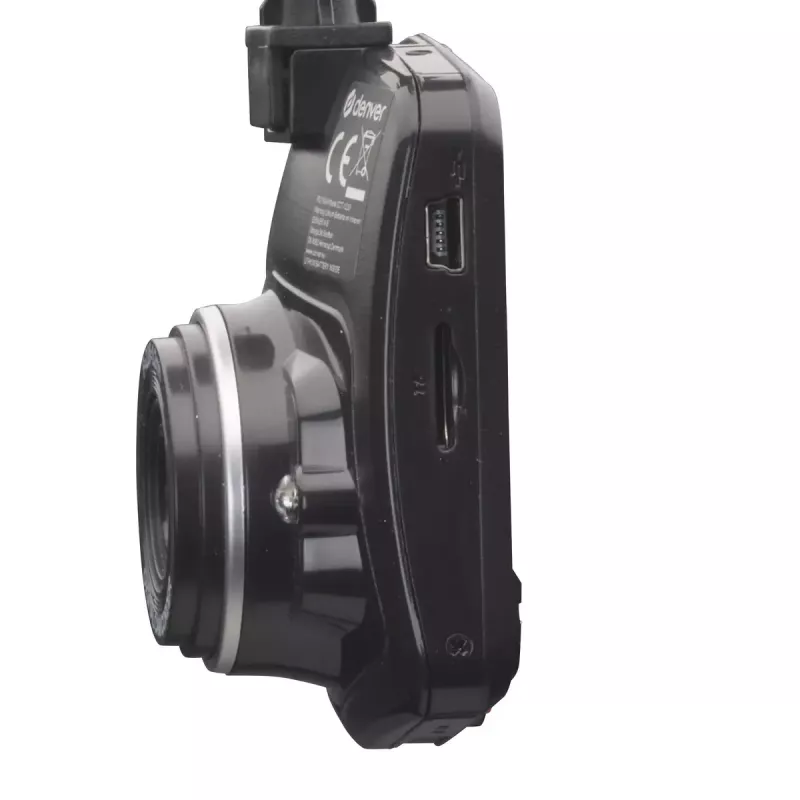

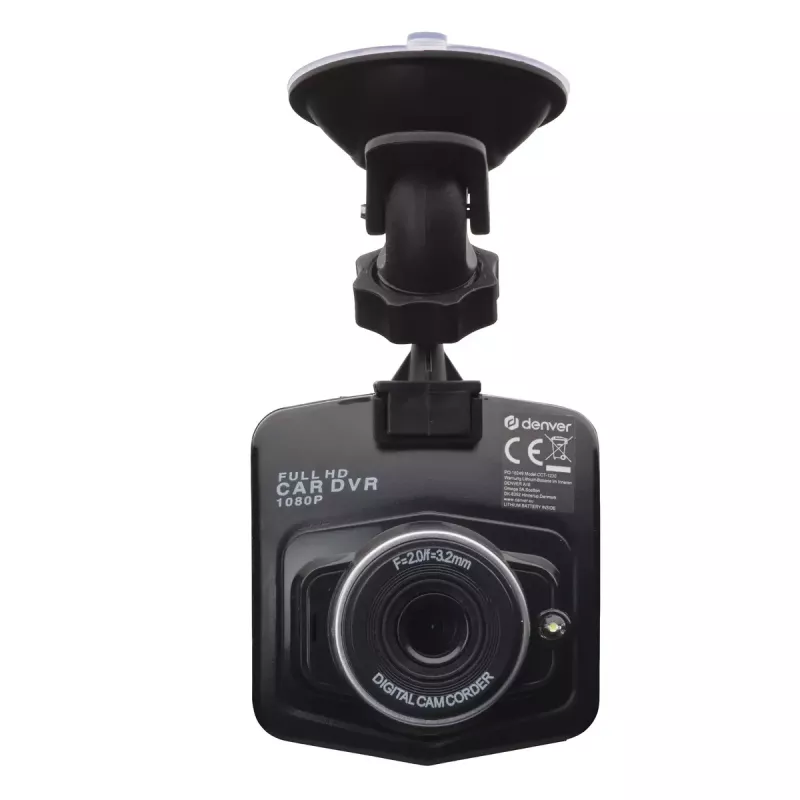

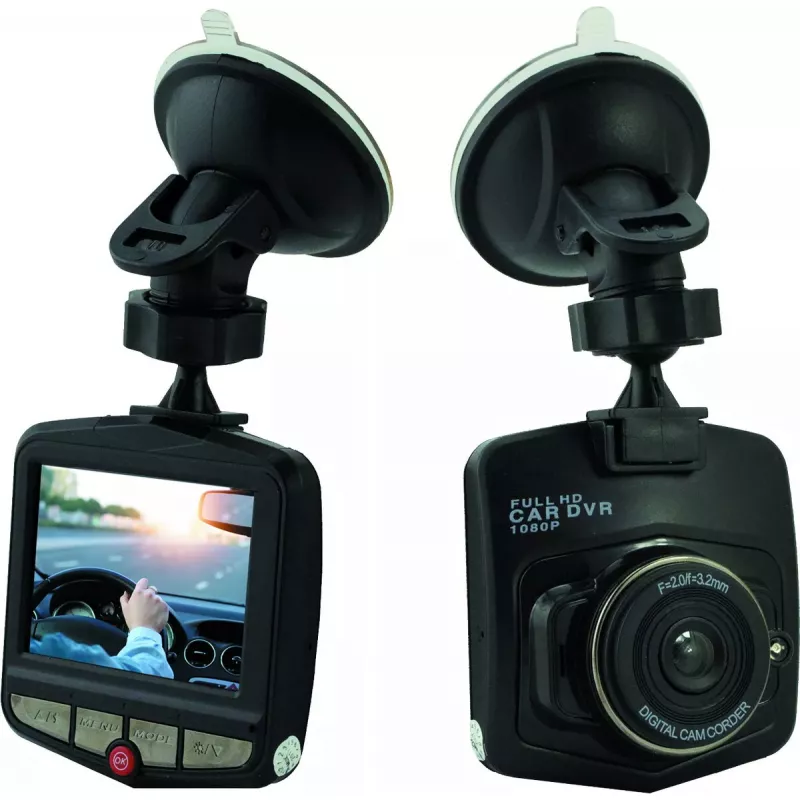

Dashcam Denver CCT-1230

The Denver CCT-1230 dashcam is a compact car video recorder with a 2.4" LCD screen that powers on and off with the vehicle and records driving footage in HD. It captures video at 1280 x 720 (720P) at up to 30 fps with software-interpolated 1080P output, and still images at up to 5MP. The unit includes a built-in microphone and speaker, a 60° viewing angle and supports MicroSD cards up to 32 GB. It is powered by a 180 mAh internal battery and DC power input.

Advantages

The Denver CCT-1230 provides straightforward HD recording with an integrated 2.4" display for live monitoring and playback. Automatic start/stop with the car simplifies operation and reduces the need for manual control. Built-in audio and a speaker allow recording of sound and on-device playback. Its compact black housing and single-camera design make installation unobtrusive.

Suitable for

• Everyday driving and incident recording
• Parking surveillance when connected to vehicle power
• Users needing a simple, compact dashcam with on-screen preview

Key specifications

• Model: Denver CCT-1230
• Video resolution: 1280 x 720 @ 30 fps (720P), 1080P interpolated
• Photo resolution: 5MP / 3MP / 2MP / VGA
• Display: 2.4" LCD
• Viewing angle: 60°
• Storage: MicroSD (TransFlash) up to 32 GB
• Power: 180 mAh battery, DC input
• Audio: Built-in microphone and speaker
• Colour: Black
• Weight: 0.14 kg

How to use

Insert a compatible MicroSD card (up to 32 GB) before first use. Mount the dashcam on the windshield or dashboard within the driver’s view so the 60° lens covers the road ahead. Connect the device to the vehicle’s 12V power outlet or rely on the internal battery for short-term use. The camera will start and stop recording automatically with the vehicle’s power; use the on-screen menu and buttons to adjust resolution, enable audio recording, or play back recorded footage on the 2.4" display.

Recommendations

For reliable continuous operation, use a high-quality MicroSD card formatted in the device and keep the dashcam connected to vehicle power during extended drives. Periodically check recorded files and format the card to maintain recording performance. Clean the windshield area in front of the lens to ensure clear footage.
