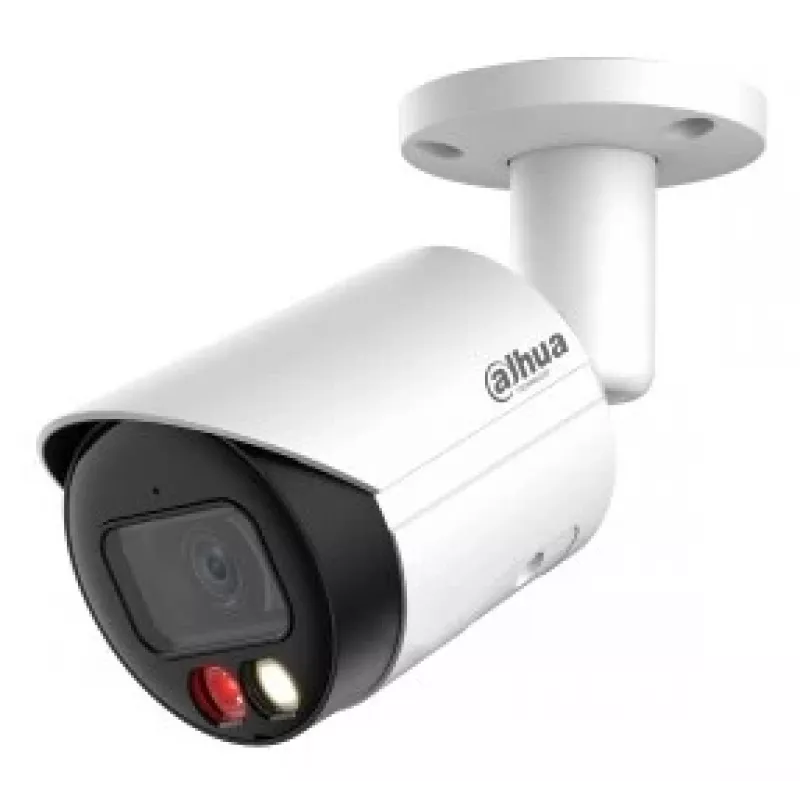

Dahua WizSense IPC-HFW2549S-S-IL-0360B 5MP Bullet IP Camera with 3.6mm Lens

The Dahua WizSense IPC-HFW2549S-S-IL-0360B is a high-performance 5MP bullet IP camera designed for indoor and outdoor surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 2960 x 1668 resolution at 20 fps. Equipped with a fixed 3.6mm lens (80° horizontal FOV) and warm LED full-color night vision up to 30m, this camera ensures clear imaging even in low light. Powered by WizSense AI, it supports SMD 4.0 and perimeter protection (tripwire, intrusion) for intelligent detection. The IP67-rated housing withstands harsh weather, and flexible ceiling/wall mounting makes it suitable for various environments.

Advantages

Full-color night vision with warm LEDs eliminates the need for external illuminators. AI-based SMD 4.0 reduces false alarms by distinguishing humans and vehicles. H.265 compression saves bandwidth and storage. Built-in microphone adds audio monitoring. PoE support simplifies installation with a single cable.

Suitable for

• Perimeter security for commercial buildings
• Retail stores and warehouses
• Residential outdoor surveillance
• Parking lots and entrances

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Resolution: 5MP (2960x1668) @ 20fps
• Lens: 3.6mm fixed, 80° H-FOV
• Night vision: Warm LED, up to 30m
• Compression: H.265/H.264/MJPEG
• Smart features: SMD 4.0, tripwire, intrusion
• Storage: Micro SD up to 256GB
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100 Mbps
• Power: 12V DC / PoE (802.3af), max 6.2W
• Protection: IP67
• Operating temp: -40°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector. Pair with Dahua NVR for full AI functionality. Ensure micro SD card is Class 10 or higher.
