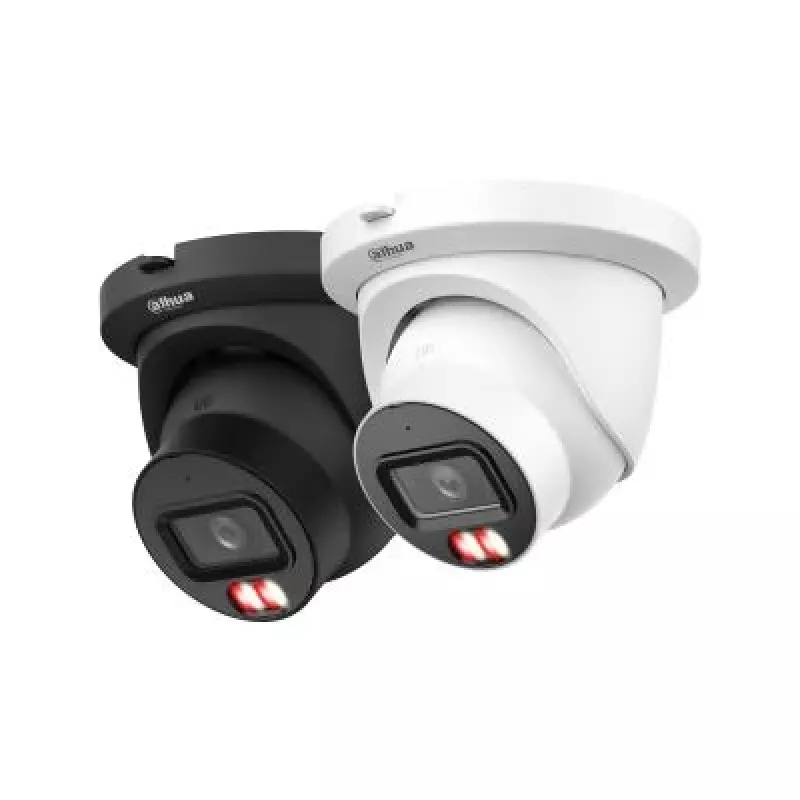

DAHUA WizSense 5 Series 8MP Eyeball Network Camera, 2.8mm Fixed Lens, Black, IPC-HDW5859TM-ASE-IL-0280B-BLACK

The DAHUA IPC-HDW5859TM-ASE-IL-0280B-BLACK is a high-performance 8MP eyeball network camera from the WizSense 5 Series, designed for professional surveillance applications. Featuring a 1/1.8" 8 Megapixel progressive CMOS sensor, it delivers crisp 3840×2160 resolution at 25/30 fps. With a 2.8mm fixed lens providing a 111° horizontal field of view, this camera is ideal for wide-area monitoring. Advanced AI capabilities include Perimeter Protection, SMD 4.0, Face Detection, and People Counting, ensuring intelligent event detection. The camera supports H.265 compression for efficient bandwidth and storage, and offers 120 dB True WDR for clear imaging in challenging lighting conditions. Built with a metal housing, it is rated IP67 for weather resistance and IK10 for vandal resistance, making it suitable for outdoor use. Power can be supplied via 12V DC or PoE (802.3af), and it includes a built-in microphone, audio I/O, alarm I/O, and a micro SD card slot (up to 256 GB).

Advantages

This camera combines high-resolution imaging with intelligent AI analytics, reducing false alarms and improving security efficiency. Its robust metal construction and IP67/IK10 ratings ensure durability in harsh environments. The 2.8mm lens offers a wide viewing angle, perfect for covering large areas with fewer cameras. H.265 compression saves storage space without compromising quality.

Suitable for

• Perimeter protection for commercial and industrial sites
• Retail stores and warehouses requiring wide-area surveillance
• Outdoor monitoring of parking lots, entrances, and perimeters
• Smart city applications such as traffic and public space monitoring

Key specifications

• Sensor: 1/1.8" 8MP progressive CMOS
• Max Resolution: 3840×2160 (8MP) at 25/30 fps
• Lens: 2.8mm fixed, FOV H: 111°
• IR Distance: Up to 50m (164ft)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• WDR: 120 dB True WDR
• AI Features: Perimeter Protection, SMD 4.0, Face Detection, People Counting
• Audio: Built-in mic, 1ch in/out
• Alarm: 1ch in/out
• Storage: Micro SD up to 256GB
• Power: 12V DC / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Material: Metal
• Color: Black

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is rated for continuous recording. The camera is best paired with a DAHUA NVR for full AI functionality.
