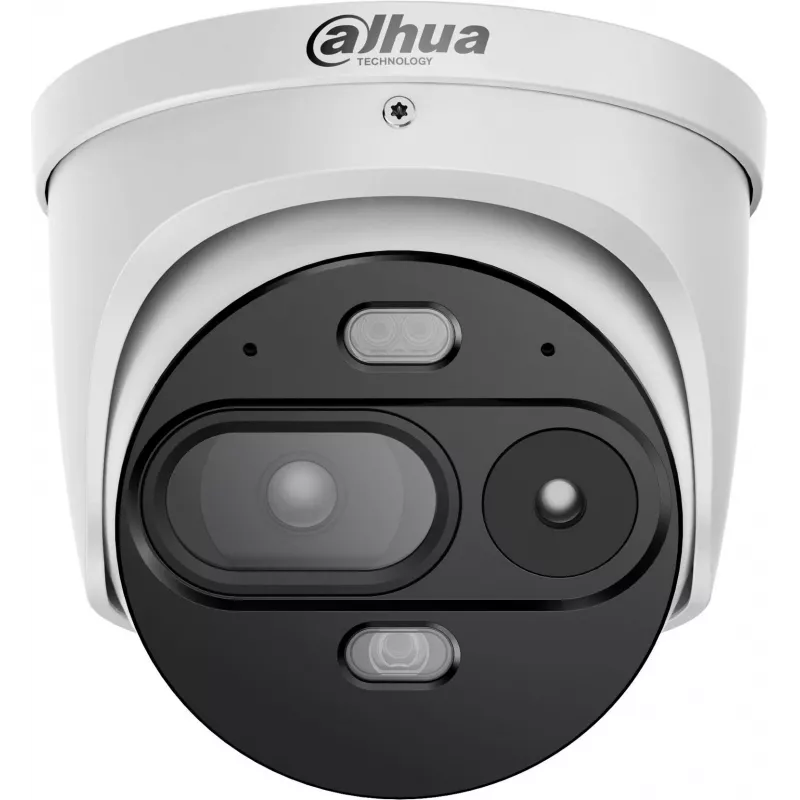

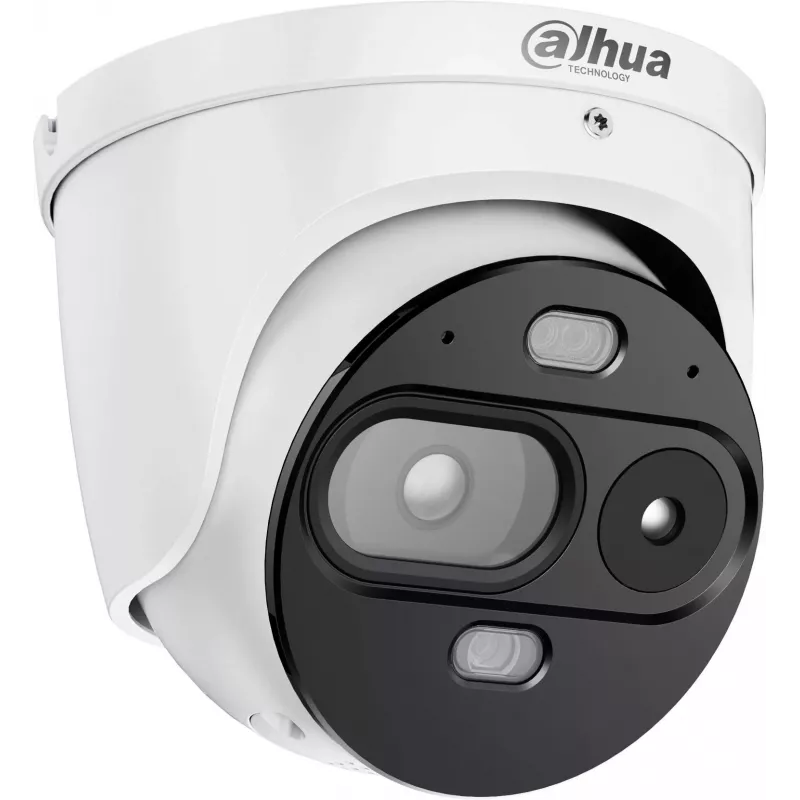

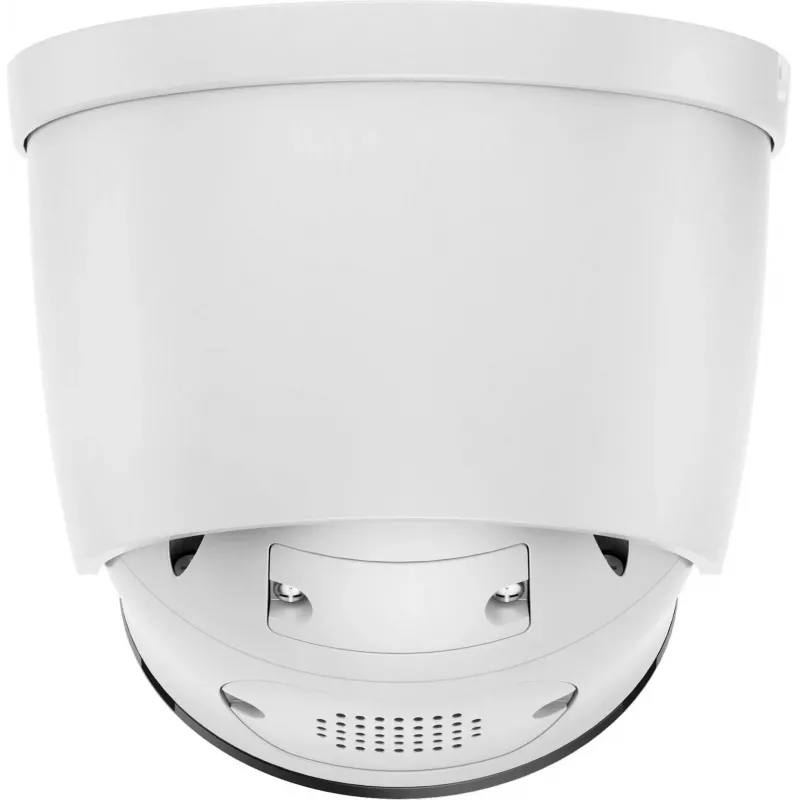

Dahua TPC-DF1241-TB7F6-DW-S8-V1 Thermal IP Camera with Temperature Measurement, 256x192 Thermal + 4 MP Optical

The Dahua TPC-DF1241-TB7F6-DW-S8-V1 is a hybrid thermal and optical IP camera designed for temperature measurement and advanced perimeter protection. It combines a 256 × 192 thermal sensor with a 4 MP optical camera, enabling radiometric temperature monitoring from -20°C to +650°C and AI-driven classification of humans and vehicles.

Key features

• Thermal camera: 256 × 192 px, uncooled VOx microbolometer, 7 mm lens, 8–14 μm spectral range, NETD ≤25 mK @ f/1.0
• Optical camera: 4 MP (2688 × 1520), 1/1.8" CMOS, 6 mm lens, F1.6, H: 59.9°, V: 34.7°
• Temperature measurement: -20°C to +650°C, accuracy ±2°C or ±2%, low/high/auto modes, 21 points/lines/areas simultaneously
• Thermal detection: human up to 292 m, vehicle up to 894 m, heat source up to 86 m
• AI analysis: human/vehicle classification, line crossing, intrusion, smoke and cigarette smoking detection
• Two-way audio, built-in microphone and speaker, sound and light alarm (white light, red-blue alarm lights)
• IR illuminator up to 50 m, white light illuminator up to 30 m
• microSD card support up to 256 GB
• IP67 housing
• Power: PoE (802.3af) or 12–24 V DC

Specifications

• Brand: Dahua
• MPN: TPC-DF1241-TB7F6-DW-S8-V1
• Device type: Hybrid thermal + optical IP camera (radiometric)
• Thermal resolution: 256 × 192 px
• Pixel size: 12 μm
• Thermal lens: 7 mm
• Thermal field of view: H: 24.0°, V: 18.0°
• Optical resolution: 4 MP (2688 × 1520)
• Optical sensor: 1/1.8" CMOS
• Optical lens: 6 mm, F1.6
• Optical field of view: H: 59.9°, V: 34.7°
• Minimum illumination: 0.05 lux (color), 0.005 lux (B/W), 0 lux (IR on)
• WDR: 120 dB
• BLC/HLC: Yes
• Noise reduction: 2D NR, 3D NR
• Defog: Electronic
• Day/night: Auto (ICR), color, B/W
• Electronic shutter: 1 s – 1/30,000 s
• DORI (optical): Detection 82.8 m, Observation 33.1 m, Recognition 16.6 m, Identification 8.3 m
• IR illuminator: up to 50 m
• White light illuminator: up to 30 m
• Digital zoom: 16×
• Color palettes: 18 modes
• Human detection (thermal): up to 292 m
• Human recognition: up to 73 m
• Human identification: up to 36 m
• Vehicle detection (thermal): up to 894 m
• Vehicle recognition: up to 224 m
• Vehicle identification: up to 112 m
• Temperature measurement: Yes (radiometric)
• Temperature range: -20°C to +650°C
• Temperature measurement modes: Low: -20°C to +150°C, High: 100°C to +650°C, Auto: -20°C to +650°C
• Temperature accuracy: ±2°C or ±2%
• Measurement modes: 21 points, 21 lines, 21 areas simultaneously
• Minimum measurement distance: 3 m
• Maximum measurement distance: 11.7 m
• Heat source detection: Yes, max. distance 86 m
• Hot/cold spot tracking: Yes
• Perimeter protection (IVS): Yes
• IVS functions: Line crossing, intrusion
• Object classification: Human/vehicle
• Smoke detection: Yes
• Cigarette smoking detection: Yes, max. distance 11 m
• Call detection: Yes, max. distance 10 m
• Video compression: H.265, H.264H, H.264
• Audio compression: G.711a, G.711u, PCM, AAC
• Image format: JPEG
• Two-way audio: Yes
• Built-in microphone and speaker: Yes
• Sound alarm: Yes
• Light alarm: White light, red-blue alarm lights
• Network port: 1 × RJ45 10/100 Mbps
• Alarm inputs: 2
• Alarm outputs: 2
• Audio input: 1
• Audio output: 1
• RS-485: 1
• Power output: 12 V DC, ≤0.15 A
• Local storage: microSD up to 256 GB
• Recording modes: microSD card, FTP
• Fusion mode: Yes
• PIP (Picture in Picture): Yes
• Supported protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, IEEE 802.1X
• Compatibility: ONVIF, CGI, Dahua SDK
• Browsers: IE11+, Chrome 65+, Firefox 65+
• Max. users: 20
• Simultaneous connections: up to 12 users
• Power supply: 12–24 V DC or PoE (802.3af)
• Power consumption (typical): [not provided]
