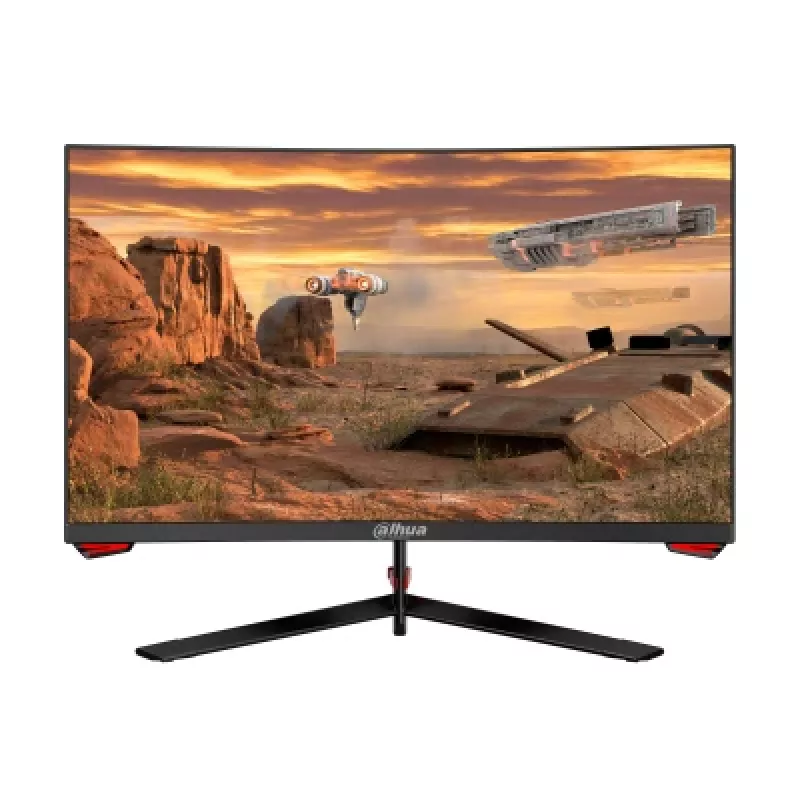

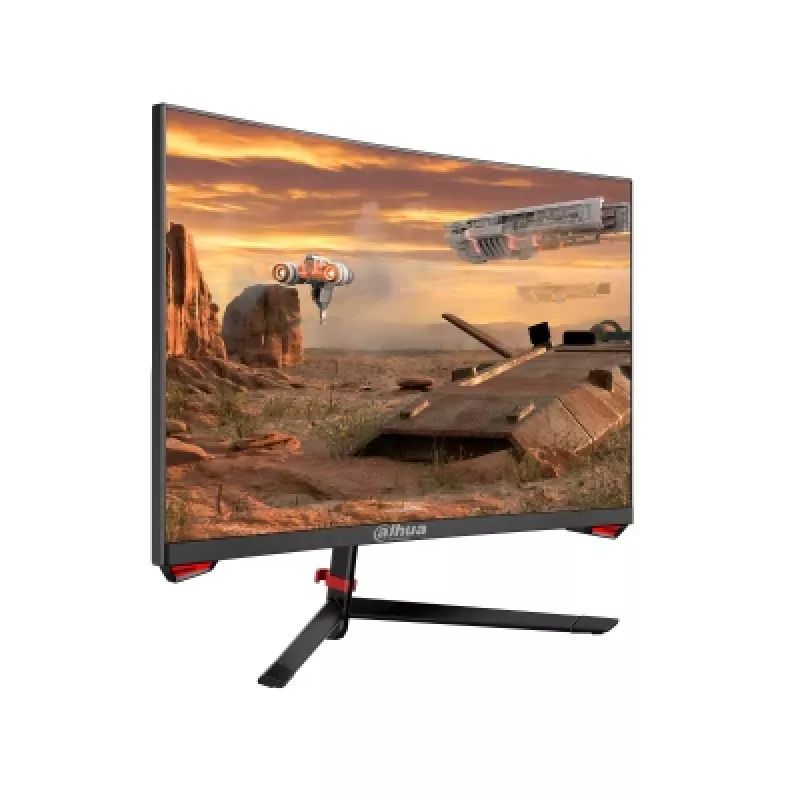

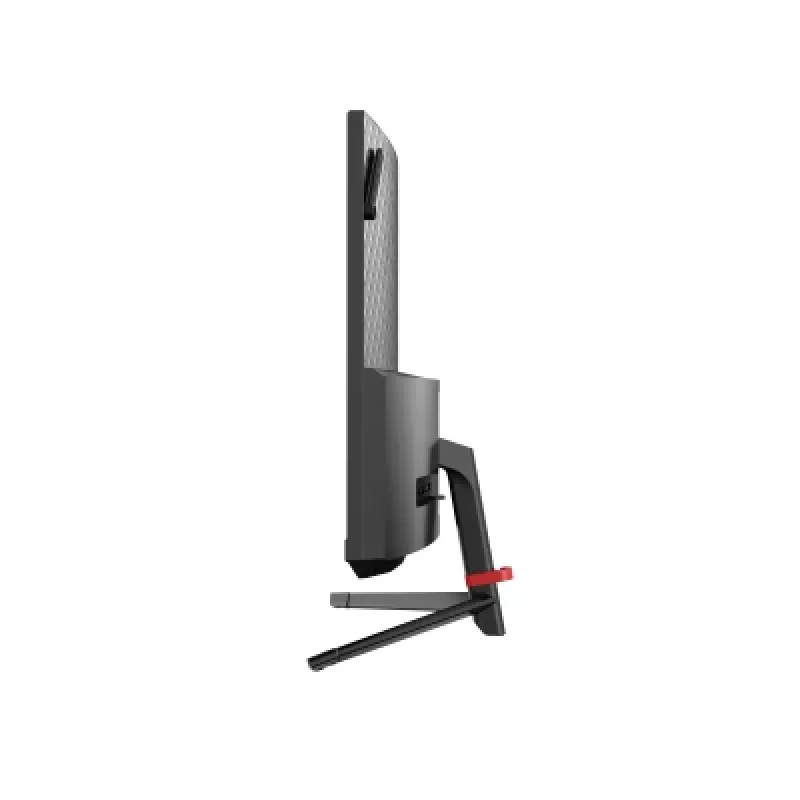

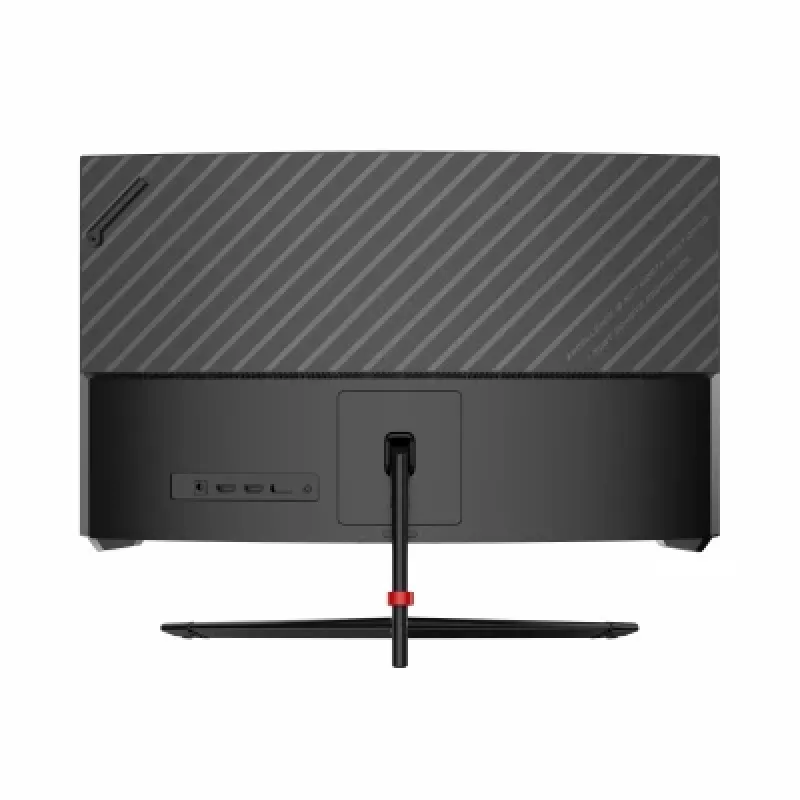

Dahua Technology LM24-E230C computer monitor 59.9 cm (23.6 inch) 1920 x 1080 pixels Full HD LED Black

The Dahua Technology LM24-E230C is a 23.6-inch Full HD LED monitor with a native resolution of 1920 x 1080 and a VA panel. The screen offers a 16:9 aspect ratio and a curved shape that improves perceived immersion for general-purpose computing, surveillance monitoring and office tasks. With a 1 ms response time and wide 178° horizontal and vertical viewing angles, the display maintains clarity and colour consistency from off-centre positions. The monitor is finished in black and supports VESA mounting for flexible placement options.

Advantages

The LM24-E230C combines a fast 1 ms response time with a high typical contrast ratio of 3000:1, delivering clear motion rendering and deep blacks useful for video playback and image inspection. Typical brightness of 250 cd/m² provides adequate luminance for most indoor lighting conditions. Energy characteristics are tuned to efficiency class E (SDR) with a measured consumption of 17 kWh per 1000 hours, which helps manage operating costs in continuous-use environments. The curved VA panel and wide viewing angles ensure consistent visuals across a range of seating positions.

Suitable for

• Office productivity and multi-window desktop work
• Surveillance monitoring and control room displays
• Video playback, conferencing and multimedia content
• General home computing and study setups

Key specifications

• Display diagonal: 23.6 inches
• Display resolution: 1920 x 1080 (Full HD)
• Panel type: VA
• Display technology: LED
• Aspect ratio: 16:9
• Response time: 1 ms
• Typical contrast ratio: 3000:1
• Typical brightness: 250 cd/m²
• Viewing angles: 178° horizontal / 178° vertical
• Screen shape: Curved
• VESA mounting: supported
• Built-in speakers: none
• Built-in USB hub: none
• Colour: Black
• Energy efficiency class (SDR): E
• Energy consumption (SDR) per 1000 hours: 17 kWh

How to use

Place the monitor on a stable desk surface or attach it to a VESA-compatible mount using the supplied mounting holes. Connect the display to a compatible video source using an appropriate cable supported by your source device. Adjust display settings such as brightness, contrast and colour temperature through the on-screen menu to match ambient lighting and viewing preferences. For multi-monitor setups, configure the operating system display settings to arrange and scale screens as required.

Recommendations

For optimal viewing, position the centre of the curved screen at eye level and maintain a viewing distance of approximately one to two arm lengths. Reduce eye strain by setting brightness to match room lighting and enabling periodic breaks during extended use. When used in surveillance or control-room applications, consider mounting height and angle to maximise visibility across operator positions.
