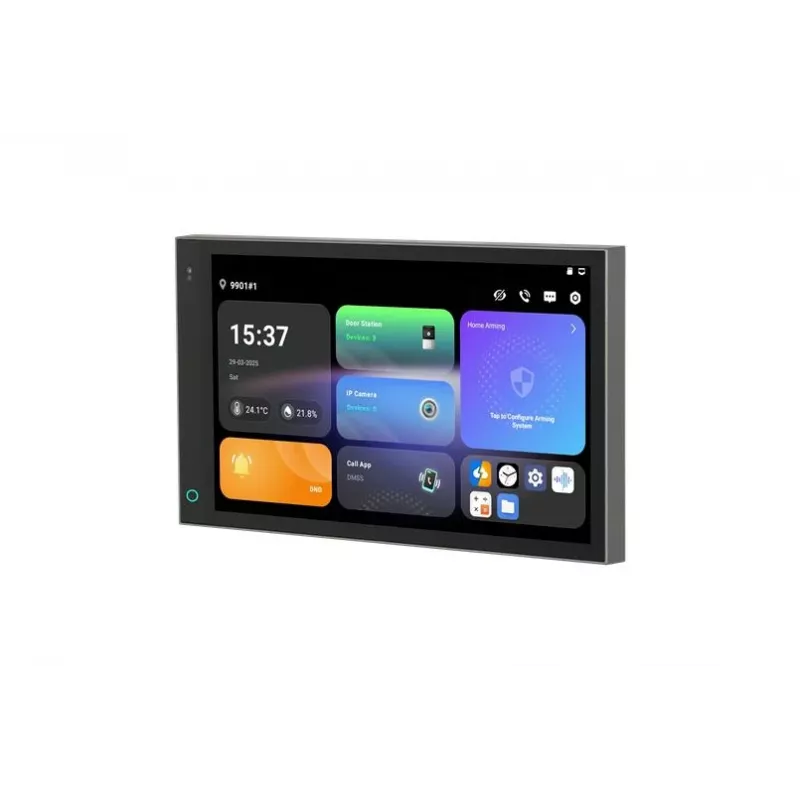

DAHUA SCP3024A-B 7-Inch IP Control Panel LCD Monitor with Joystick and Touchscreen

The DAHUA SCP3024A-B stands apart from conventional control panels by integrating a 3-axis joystick, mechanical keys, and a responsive touchscreen into a single 7-inch TFT LCD interface. Built on embedded Linux, it delivers direct, low-latency command over Dahua DVRs, NVRs, IP cameras, PTZ cameras, and video walls — without the complexity of a full workstation.

Highlights

• 7-inch TFT LCD with 800 x 480 resolution for crisp monitoring and menu navigation
• Triple control methods: 3-axis joystick, mechanical keys, and touchscreen
• Extensive connectivity: 1x RJ45 10/100Mbps Ethernet, 2x RS232, 1x RS485, 2x USB 2.0
• Supports TCP/IP, UDP, RTSP, HTTP, HTTPS, SNMP, and P2P protocols
• Robust aluminum alloy and ABS plastic housing in black
• Wide operating temperature range: -10°C to +55°C

In daily use

Security operators will appreciate the panel's immediate response when switching camera feeds or adjusting PTZ presets. The joystick offers precise pan/tilt/zoom control, while the touchscreen simplifies alarm acknowledgment and video wall layout changes. Dual RS232 and RS485 ports allow integration with legacy matrix switchers or access control systems, and the two USB ports support firmware updates and peripheral connections. Powered by a standard DC 12V/3A supply with typical consumption of just 15W, it runs cool and quiet in 24/7 control rooms.

Full specifications

• Display: 7-inch TFT LCD, 800 x 480 resolution
• Control methods: 3-axis joystick, mechanical keys, touchscreen
• Ethernet: 1x RJ45 10/100Mbps
• Serial: 2x RS232, 1x RS485
• USB: 2x USB 2.0
• Operating system: Embedded Linux
• Protocols: TCP/IP, UDP, RTSP, HTTP, HTTPS, SNMP, P2P
• Power supply: DC 12V/3A
• Power consumption: 15W typical
• Operating temperature: -10°C to +55°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Housing material: Aluminum alloy and ABS plastic
• Colour: Black
• Supported devices: Dahua DVRs, NVRs, IP cameras, PTZ cameras, video walls
• Functions: PTZ control, video wall management, alarm management, user management

Final note

For centralized monitoring and rapid PTZ response in professional security environments, the SCP3024A-B offers a reliable, all-in-one control surface that matches Dahua's ecosystem perfectly.
