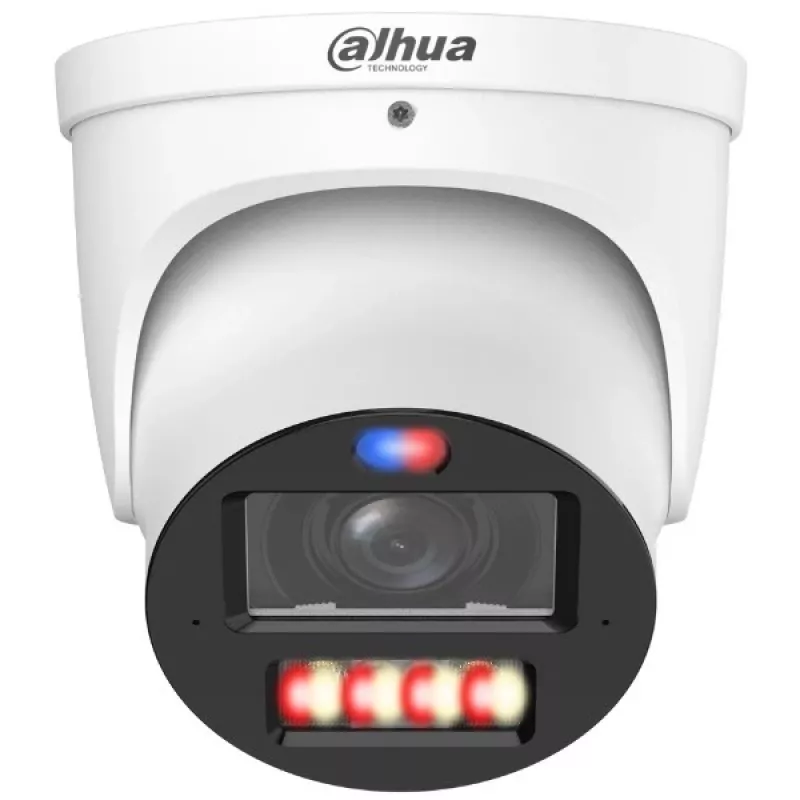

DAHUA IPC-HDW3649H-ZAS-PV-2712-PRO 6MP IR WizMind Network Dome Camera with Active Deterrence

The DAHUA IPC-HDW3649H-ZAS-PV-2712-PRO is a high-performance 6MP IR WizMind network dome camera designed for advanced security and active deterrence. Featuring a motorized varifocal lens, dual illuminators, and intelligent AI analytics, this camera delivers exceptional image quality and reliable surveillance in various environments.

Advantages

With 6MP resolution at 20fps, the camera captures crisp and detailed footage. The motorized varifocal lens (2.7-12mm) allows flexible field of view adjustment. Active deterrence with red/blue flashing light and siren helps prevent incidents. Built-in AI features like SMD 4.0 and perimeter protection reduce false alarms. IP67 weatherproof rating ensures durability outdoors.

Suitable for

• Perimeter security for commercial and residential properties
• Parking lots, warehouses, and retail stores
• Areas requiring active deterrence and real-time alerts

Key specifications

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 6MP (3072x2048) at 20fps
• Lens: Motorized varifocal 2.7-12mm, F1.5
• Horizontal FOV: 102°-39°
• Illumination: Dual IR/White Light up to 50m
• Active Deterrence: Red/Blue flashing light and siren
• Audio: Built-in mic and speaker, audio in/out
• Alarm: 1-in, 1-out
• Video Compression: H.265/H.264/MJPEG
• AI: SMD 4.0, Perimeter Protection
• Storage: Micro SD slot up to 256GB
• Network: RJ-45 10/100 Base-T
• Power: 12V DC / PoE (802.3af)
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or 12V DC power supply. Ensure the micro SD card is high endurance for continuous recording. The camera is compatible with DAHUA NVRs and third-party ONVIF systems.
