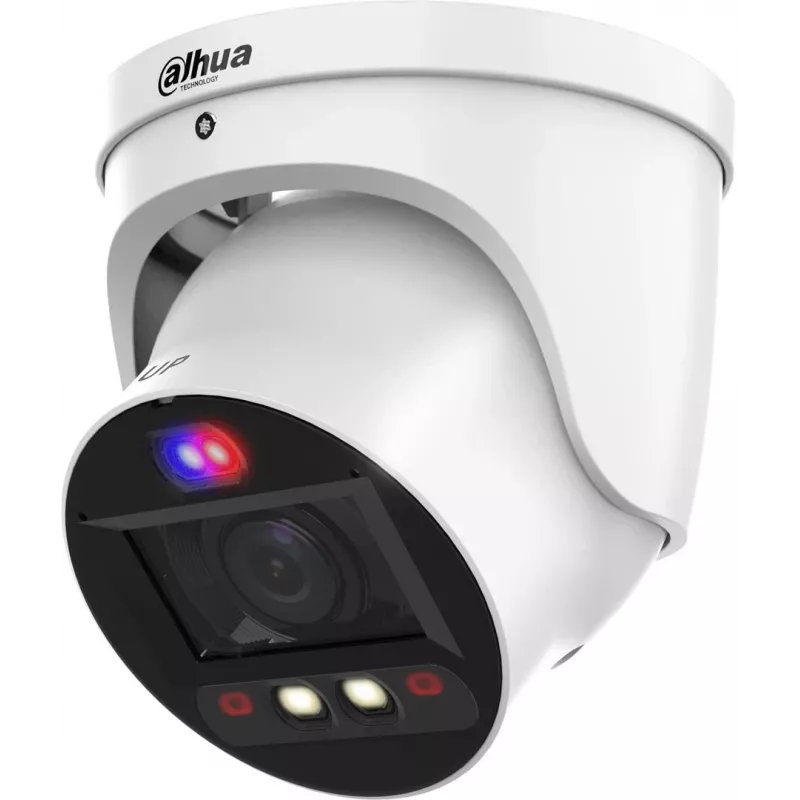

Dahua IPC-HDW3549H-ZAS-PV-S5 5MP Full-Color Active Deterrence IP Camera

The Dahua IPC-HDW3549H-ZAS-PV-S5 is a high-performance 5MP IP camera featuring TIOC 3.0 technology, designed for advanced security with full-color night vision and active deterrence. This camera delivers crisp 5MP resolution at 20 fps, ensuring detailed surveillance in various environments.

Advantages

Equipped with a 1/2.7" CMOS sensor and a 2.8mm fixed lens, this camera provides a 104° horizontal field of view. The built-in warm light illuminates up to 30 meters, enabling full-color imaging even in complete darkness. Active deterrence includes red and blue flashing lights and a siren to scare off intruders. AI features like perimeter protection and SMD 4.0 reduce false alarms.

Suitable for

• Residential properties requiring 24/7 color surveillance
• Commercial premises needing active deterrence
• Outdoor areas with harsh weather conditions (IP67 rated)

Key specifications

• Image Sensor: 1/2.7" 5MP Progressive CMOS
• Max Resolution: 5MP (2960 x 1668) at 20 fps
• Lens: 2.8mm fixed, F1.0
• Night Vision: Full-color with warm light up to 30m
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Audio: Built-in mic and speaker, two-way talk
• Active Deterrence: Red & blue flashing lights, siren
• AI: Perimeter protection, SMD 4.0, Quick Pick, AI SSA
• WDR: 120dB True WDR
• Storage: Micro SD card slot up to 256GB
• Network: 1x RJ-45 10/100Base-T
• Power: 12V DC or PoE (802.3af)
• Protection: IP67, metal + plastic housing
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is high endurance for continuous recording.
