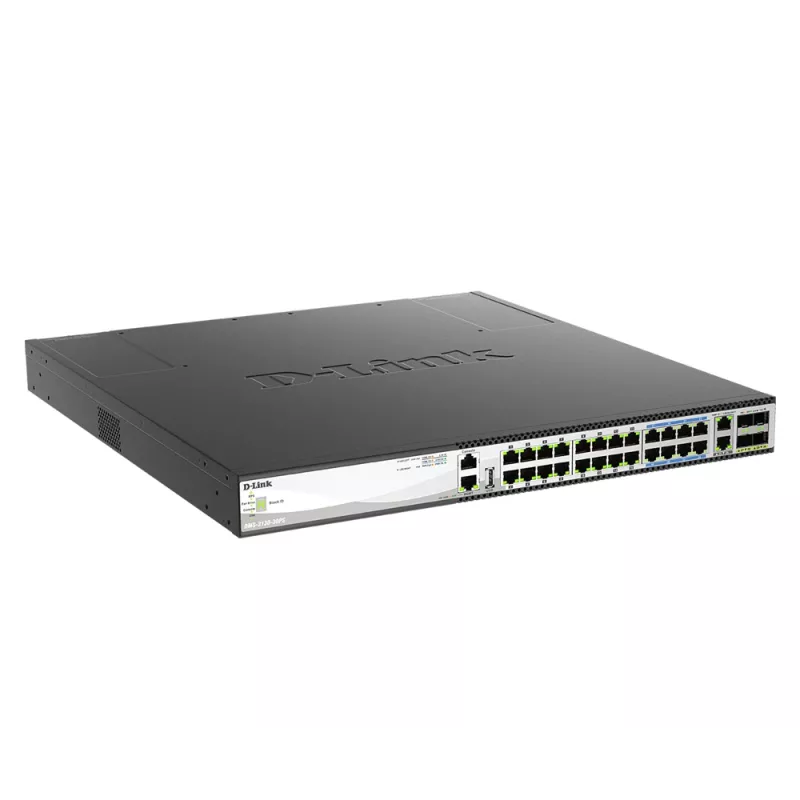

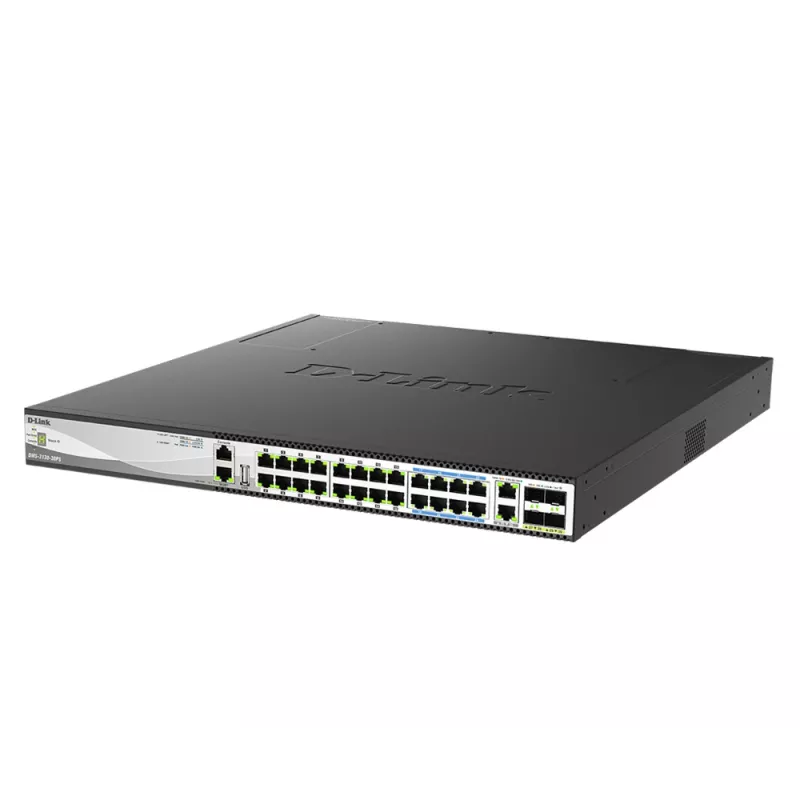

D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
60 mo.
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
R56,130
The D-Link DMS-3130-30PS is a managed Layer 3 switch designed for high-performance network environments. It provides two 10G Ethernet RJ-45 ports, Power over Ethernet capability, and a switching capacity of 400 Gbit/s. The unit supports a wide range of networking standards for advanced traffic contr... Read More
Stock 1 Code 1395452 Brand D-LINK Model DMS-3130-30PS Warranty 5 Years

Shipping & Returns

Estimated delivery Monday, October 12
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The D-Link DMS-3130-30PS is a managed Layer 3 switch designed for high-performance network environments. It provides two 10G Ethernet RJ-45 ports, Power over Ethernet capability, and a switching capacity of 400 Gbit/s. The unit supports a wide range of networking standards for advanced traffic control, link aggregation, QoS and security features, making it suitable for aggregation, distribution and core roles in medium to large networks. The product comes in a black metal chassis and is intended for rack or cabinet mounting in server rooms and network closets.

Advantages

The switch combines 10G Ethernet connectivity with PoE support, enabling both high-speed uplinks and powered devices from a single platform. As a managed L3 device, it supports routing and advanced network segmentation while offering a high switching capacity to handle large volumes of traffic. Compliance with multiple IEEE networking standards ensures interoperability with existing infrastructure and simplifies deployment in mixed-vendor environments.

Suitable for

  • Data center aggregation and top-of-rack uplinks
  • Enterprise distribution layer and campus networks
  • Powering access points, IP phones and cameras via PoE
  • High-throughput links between switches or servers

Key specifications

  • Switching capacity: 400 Gbit/s
  • Ports: 2 × 10G RJ-45 Ethernet (100/1000/10000)
  • Switch type: Managed Layer 3
  • PoE: Supported (Power over Ethernet capability)
  • Supported networking standards: IEEE 802.11ad, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1p, IEEE 802.11d, IEEE 802.1s, IEEE 802.1AX, IEEE 802.3x, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x
  • Colour: Black
  • Weight: 6.54 kg

How to use

Install the D-Link DMS-3130-30PS in a standard equipment rack and connect power according to site electrical practices. Use the 10G RJ-45 ports for uplinks to aggregation or core switches and connect PoE-powered devices to supported ports. Access the management interface via the console port or network management protocols to configure IP routing, VLANs, link aggregation, QoS and security policies. Ensure firmware is up to date before putting the switch into production.

Recommendations

Place the switch in a temperature-controlled rack environment and use appropriate surge protection. For networks that require redundancy and high availability, combine link aggregation and routing protocols supported by the device. When deploying PoE devices, verify total PoE budget and budget allocation per port to prevent power overloads.

Key Highlights
  • Data center aggregation and top-of-rack uplinks
  • Enterprise distribution layer and campus networks
  • Powering access points, IP phones and cameras via PoE
  • High-throughput links between switches or servers
  • Switching capacity: 400 Gbit/s
  • Ports: 2 × 10G RJ-45 Ethernet (100/1000/10000)
  • Switch type: Managed Layer 3
  • PoE: Supported (Power over Ethernet capability)
  • Supported networking standards: IEEE 802.11ad, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1p, IEEE 802.11d, IEEE 802.1s, IEEE 802.1AX, IEEE 802.3x, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x
  • Colour: Black
  • Weight: 6.54 kg
Specifications
10G Ethernet (copper) ports quantity
2
10G support
Yes
AC input voltage
100 - 240
Access Control List (ACL)
Yes
Access Control List (ACL) egress
512
Access Control List (ACL) ingress
2048
Authentication
Guest VLAN
Authentication type
RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports quantity
2
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Certification
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC
Console port
RJ-45
Depth
250 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping
DoS attack prevention
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Fast leave
Yes
Flow control support
Yes
Forwarding rate
298 Mpps
GARP VLAN Registration Protocol (GVRP)
Yes
Heat dissipation
413.73 BTU/h
Height
250 mm
IGMP entries
1024
IGMP snooping
Yes
Jumbo frames
9000
Jumbo frames support
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
32768 entries
Mean time between failures (MTBF)
487153 h
MLD entries
64
Multicast support
Yes
Networking standards
IEEE 802.11ad, IEEE 802.1ag, IEEE 802.3ah, IEEE 802.1p, IEEE 802.11d, IEEE 802.1s, IEEE 802.1AX, IEEE 802.3x, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x
Noise level
54 dB
Number of fans
3 fan(s)
Number of queues
8
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90
Operating temperature (T-T)
0 - 50
Packet buffer memory
4 MB
Packet filtering
L3
Physical stacking (units)
9
Port mirroring
Yes
Power connector
AC-in jack
Power consumption (max)
1211.5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
16
Power over Ethernet (PoE) power per port
60 W
Power source
AC
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR), Weighted random early detection (WRED), Strict Priority Queue (SPQ)
Redundant power supply (RPS) support
Yes
Root protection
Yes
Routing protocols
OSPFv2, RIPng, OSPFv3, RIP-1, RIP-2
Safety
CB, cUL, BSMI, CCC
sFlow
Yes
SFP module slots quantity
24
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Static port security
Yes
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-40 - 70
Surge protection
Yes
Surge protection voltage
6 kV
Switch layer
L3
Switch type
Managed
Switching capacity
400 Gbit/s
System event log
Yes
Total Power over Ethernet (PoE) budget
960 W
USB 2.0 ports quantity
1
Virtual LAN features
Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, Voice VLAN, Multicast VLAN, Private VLAN
Virtual stacking (units)
32
VLAN support
Yes
Web-based management
Yes
Weight
6.54 kg
Width
440 mm

Leaflet

Open Leaflet
