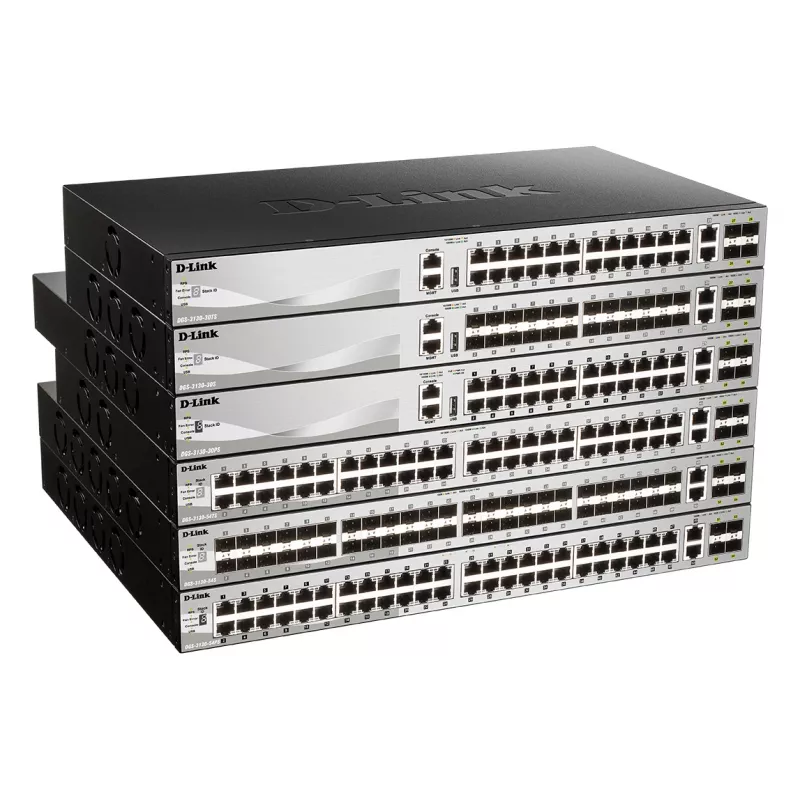

D-Link DGS-3130-30TS/E network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey

D-Link DGS-3130-30TS/E network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
60 mo.
D-Link DGS-3130-30TS/E network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
R16,459
D-Link DGS-3130-30TS/E, Managed, L3, Gigabit Ethernet (10/100/1000) D-Link DGS-3130-30TS/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address ta... Read More
Stock 2 Code 341288 Brand D-LINK Model DGS-3130-30TS/E Warranty 5 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

D-Link DGS-3130-30TS/E, Managed, L3, Gigabit Ethernet (10/100/1000)

D-Link DGS-3130-30TS/E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 168 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack

Key Highlights
  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G support 10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 16384 entries Switching capacity: 168 Gbit/s
  • Access Control List (ACL)
  • Stackable
  • DC
Specifications
10G Ethernet (copper) ports quantity
2
10G support
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Access Control List (ACL)
Yes
Access Control List (ACL) egress
512
Access Control List (ACL) ingress
2048
ARP inspection
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
BPDU filtering/protection
Yes
Certification
FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
Depth
250 mm
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping
Fiber optic connector
SFP+
Flow control support
Yes
Forwarding rate
125 Mpps
Head-of-line (HOL) blocking
Yes
Heat dissipation
103.59 BTU/h
Height
44 mm
IGMP snooping
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Jumbo frames
9000
Jumbo frames support
Yes
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address table
16384 entries
Mean time between failures (MTBF)
388361 h
MIB support
RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
Noise level
47 dB
Number of fans
1 fan(s)
Number of VLANs
4000
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 50 °C
Packet buffer memory
2 MB
Physical stacking (units)
9
Port mirroring
Yes
Power connector
AC-in jack
Power consumption (max)
30.36 W
Power over Ethernet (PoE)
No
Power source
DC
Product colour
Grey
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
Redundant power supply (RPS) support
Yes
Routing protocols
RIP
SFP+ module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Switch layer
L3
Switch type
Managed
Switching capacity
168 Gbit/s
USB 2.0 ports quantity
1
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Virtual stacking (units)
32
VLAN support
Yes
Web-based management
Yes
Weight
3.2 kg
Width
440 mm

Leaflet

Open Leaflet
