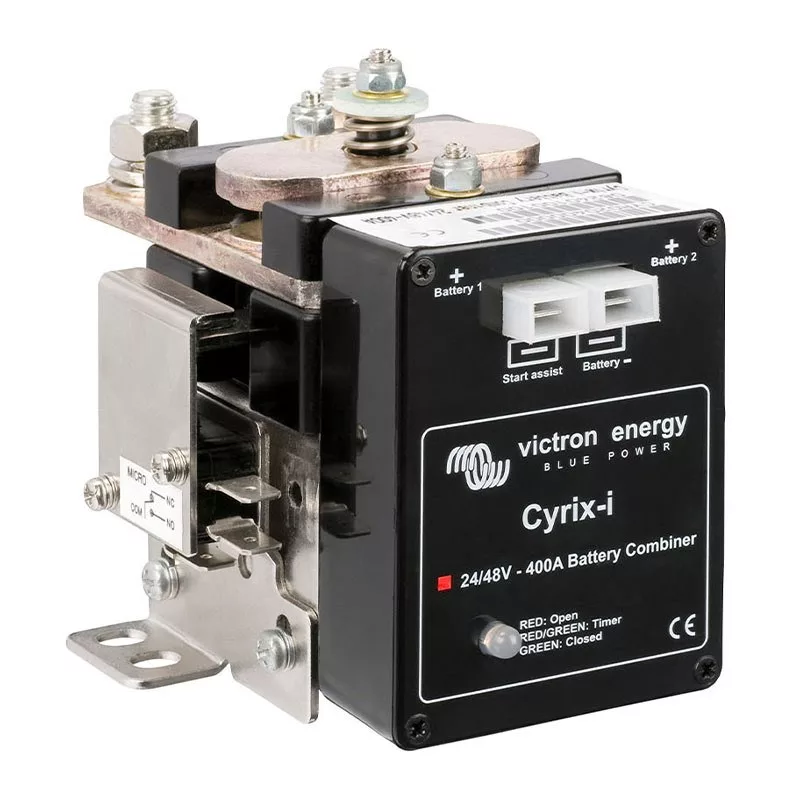

Cyrix-i 24/48V-400A Intelligent Combiner

The Cyrix-i 24/48V-400A intelligent combiner is a high-performance battery combiner designed for automatic connection and disconnection of battery banks in 24V and 48V DC systems. With a continuous current rating of 400A and a peak rating of 600A for 5 seconds, it ensures reliable power management for demanding applications.

Advantages

This intelligent combiner offers bidirectional operation, allowing current to flow in both directions when connected. It features a start assist/manual control auxiliary input for flexible system integration. The IP54 protection rating makes it suitable for harsh environments, while the LED status indicator provides clear operational feedback.

Suitable for

• Marine and RV power systems
• Off-grid solar installations
• Industrial battery management
• Emergency power systems

Key specifications

• Nominal System Voltage: 24V / 48V DC
• Continuous Current: 400A
• Peak Current: 600A (5 seconds)
• Operating Voltage Range: 18 - 60V DC
• Connect/Disconnect Delay: 10 seconds
• Protection Rating: IP54
• Operating Temperature: -40 to +60°C
• Power Terminal Size: M10
• Mounting Type: Surface Mount

Recommendations

For optimal performance, ensure proper cable sizing and fuse protection according to the system voltage and current requirements. The combiner is designed for surface mounting in a dry location, though it can withstand splashes due to IP54 rating.
