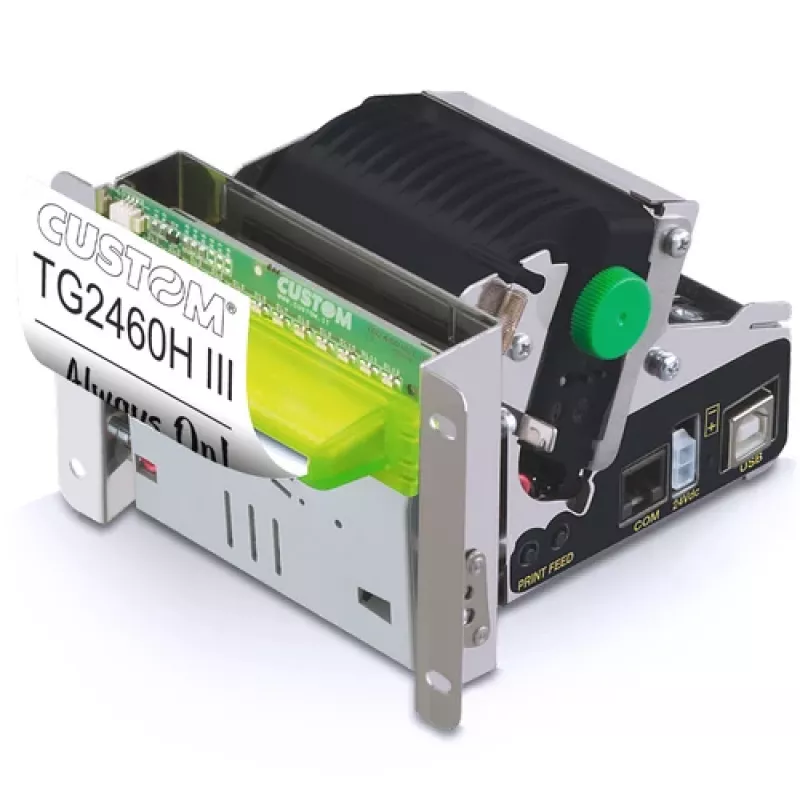

Custom PRINTER TG2460HIII USB RS232 CUTTER

The Custom TG2460HIII is a high-performance direct thermal kiosk printer engineered for unattended self-service environments. Unlike generic desktop printers, its panel-mount design and automatic partial-cut cutter make it ideal for integration into kiosks, ticketing machines, and retail automation systems. With a print speed of 150 mm/s and 200 dpi resolution, it delivers crisp receipts and tickets quickly, while the robust cutter rated for 1,000,000 cuts ensures long-term reliability.

Highlights

• Direct thermal printing at 200 dpi (8 dots/mm) for sharp text and barcodes.
• Fast output up to 150 mm/s, reducing customer wait times.
• Automatic partial-cut cutter with a lifespan of 1,000,000 cuts.
• Dual connectivity: USB 2.0 Full Speed and RS232 serial for flexible integration.
• Supports 60 mm paper width with external roll diameter up to 80 mm.
• ESC/POS emulation for easy software compatibility.
• Wide operating temperature range from -20°C to +70°C for harsh environments.
• 2 MB flash memory for storing logos and graphics.

In daily use

In a busy kiosk, the TG2460HIII excels at printing receipts, tickets, or coupons on demand. The paper-end and black-mark sensors prevent misfeeds, while the ticket presence sensor ensures the print is ready before the cutter activates. The partial-cut feature leaves a small uncut portion, so the ticket stays in place until the user takes it, avoiding jams. Its compact panel-mount design fits neatly behind a kiosk faceplate, and the 24V DC power requirement is typical for embedded systems. Drivers for Windows, Linux, Android, and iOS make it easy to integrate with existing software.

Full specifications

• Printing technology: Direct thermal
• Print resolution: 200 dpi (8 dots/mm)
• Print speed: Up to 150 mm/s
• Paper width: 60 mm
• Max paper roll diameter: 80 mm (external)
• Paper thickness: 63 - 85 µm
• Connectivity: USB 2.0 Full Speed, RS232 serial
• Cutter type: Automatic partial cut
• Emulation: ESC/POS compatible
• Power requirement: 24V DC (external power supply required)
• Sensors: Paper end, black mark, ticket presence
• Barcode support: 1D (UPC-A, EAN13, CODE39, CODE128), 2D (QR Code, Data Matrix, PDF417)
• Operating temperature: -20°C to +70°C
• Print head life: 100 km
• Cutter life: 1,000,000 cuts
• Flash memory: 2 MB (for logos/graphics)
• Drivers: Windows, Linux, Android, iOS
• Mounting type: Kiosk / panel mount

Final note

The Custom TG2460HIII combines speed, durability, and easy integration, making it the smart choice for kiosk manufacturers and system integrators seeking a reliable printing solution.
