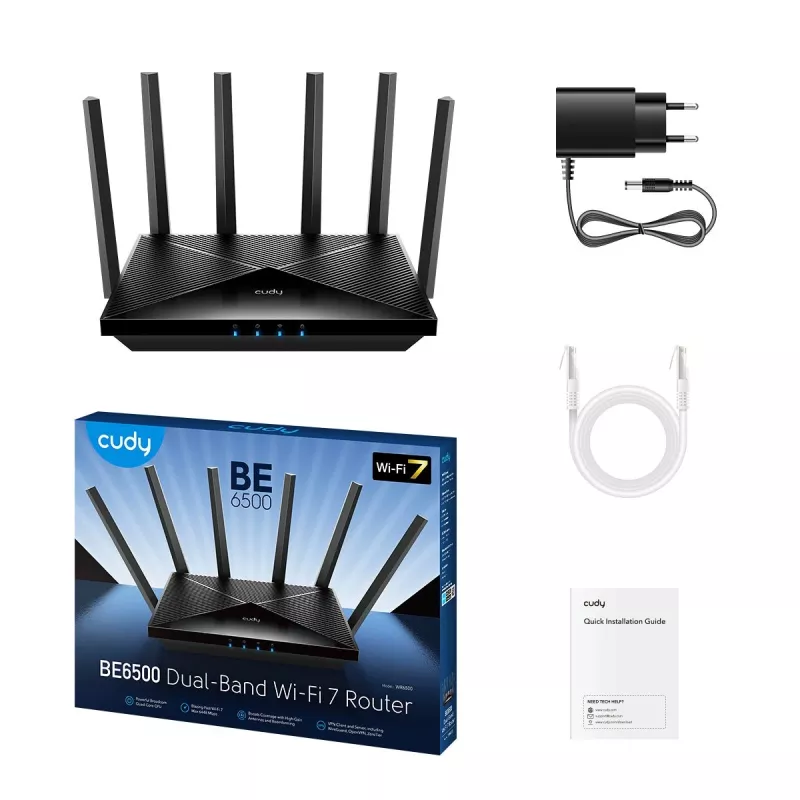

Cudy WR6500H tabletop wireless router — Dual-band 2.4/5 GHz, Wi‑Fi 7 (802.11be), 5765 Mbps, 2.5GbE LAN, 5x RJ-45, 3x3 antennas, black

The Cudy WR6500H tabletop wireless router delivers dual-band Wi‑Fi (2.4 GHz / 5 GHz) with Wi‑Fi 7 (802.11be) support and a combined maximum WLAN throughput up to 5765 Mbps. Designed for home and small office networks, the unit packs a Quad‑Core CPU and 512 MB RAM to handle multiple simultaneous connections, and provides a 2.5 Gigabit Ethernet interface alongside five RJ‑45 LAN ports. The router includes a 3x3 antenna configuration with beamforming to improve signal focus and coverage, and supports modern WPA/WPA2/WPA3 wireless security standards.

Advantages

The WR6500H balances high wireless throughput and wired performance through its Wi‑Fi 7 capability and 2.5GbE interface, enabling faster file transfers and lower-latency online activities. Its multi‑user MIMO and spectrum reuse technologies increase capacity and reduce interference when many devices are active. High‑gain antennas with beamforming help maintain stable connections across extra rooms, while built‑in parental controls and VPN support provide additional network management options.

Suitable for

• High-definition video streaming and media servers
• Online gaming and low-latency applications
• Home and small office networks with many connected devices
• File transfers and backups over wired 2.5GbE or gigabit LAN
• Remote access via VPN and centralized device management

Key specifications

• Wi‑Fi bands: Dual‑band 2.4 GHz and 5 GHz
• Top Wi‑Fi standard: Wi‑Fi 7 (802.11be)
• Maximum WLAN throughput: up to 5765 Mbps
• CPU and memory: Quad‑Core CPU with 512 MB RAM
• Ethernet interfaces: 2.5 Gigabit Ethernet WAN/LAN and five RJ‑45 LAN ports
• Antenna configuration: 3x3 with beamforming support
• Wireless security: WPA, WPA2, WPA3
• Form factor and colour: tabletop router, black
• Weight: approximately 0.58 kg

How to use

Place the router on a flat surface in a central location for best coverage and connect the primary WAN cable to the designated Ethernet port. Power on the device and follow the on‑screen guided setup via the web interface or the Cudy app to configure SSIDs, passwords, and security settings. For optimal wired performance, connect devices that require high throughput to the 2.5GbE port or any of the RJ‑45 LAN ports. Use the app or web UI to adjust parental controls, enable VPN functions, and manage connected devices.

Recommendations

Position antennas upright and avoid placing the router near large metal objects or thick walls to maximize signal reach; update firmware regularly and enable WPA3 where supported for enhanced security.
