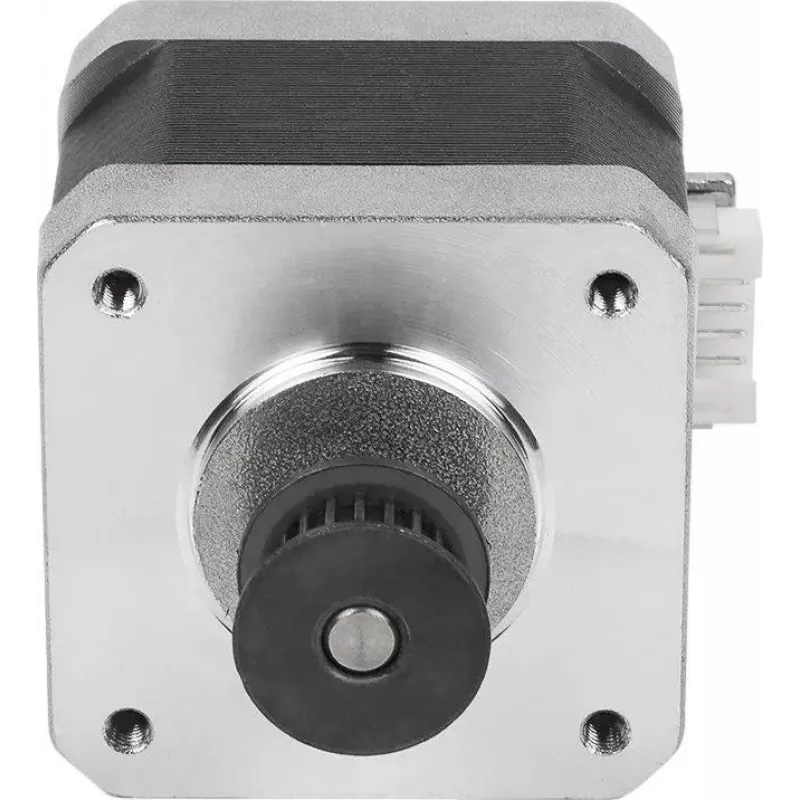

Creality Ender-3 V3 SE Y-Axis Stepper Motor NEMA 17 42-42 3D Printer Part

The Creality Ender-3 V3 SE Y-Axis Stepper Motor is a genuine replacement part designed specifically for the Creality Ender-3 V3 SE 3D printer. This NEMA 17 stepper motor ensures precise and reliable movement along the Y-axis, maintaining the high print quality expected from Creality printers.

Advantages

This motor offers a perfect fit and seamless integration with the Ender-3 V3 SE, thanks to its exact mounting hole spacing (31mm) and D-cut shaft. With a holding torque of 0.35 Nm and a step angle of 1.8°, it provides the accuracy needed for detailed prints. The 4-wire JST-XH connector simplifies installation, making it an ideal replacement for worn or faulty motors.

Suitable for

• Creality Ender-3 V3 SE 3D printer (Y-axis replacement)
• Upgrading or repairing the Y-axis motion system
• Users seeking a direct OEM replacement part

Key specifications

• Motor Type: NEMA 17
• Step Angle: 1.8°
• Number of Phases: 2-Phase
• Rated Voltage: 3.3V
• Rated Current: 1.5A
• Holding Torque: 0.35 Nm (35 N.cm)
• Shaft Diameter: 5mm (D-Cut)
• Body Length: 34mm
• Number of Leads: 4-Wire
• Connector Type: JST-XH 4-Pin
• Mounting Hole Spacing: 31mm
• Resistance per Phase: 2.2 Ω
• Inductance per Phase: 3.8 mH
• Insulation Class: Class B
• Operating Temperature Range: -10°C to 50°C

Recommendations

For best results, ensure your printer firmware is compatible and follow proper installation procedures. This motor is a direct replacement; no modifications are required.
