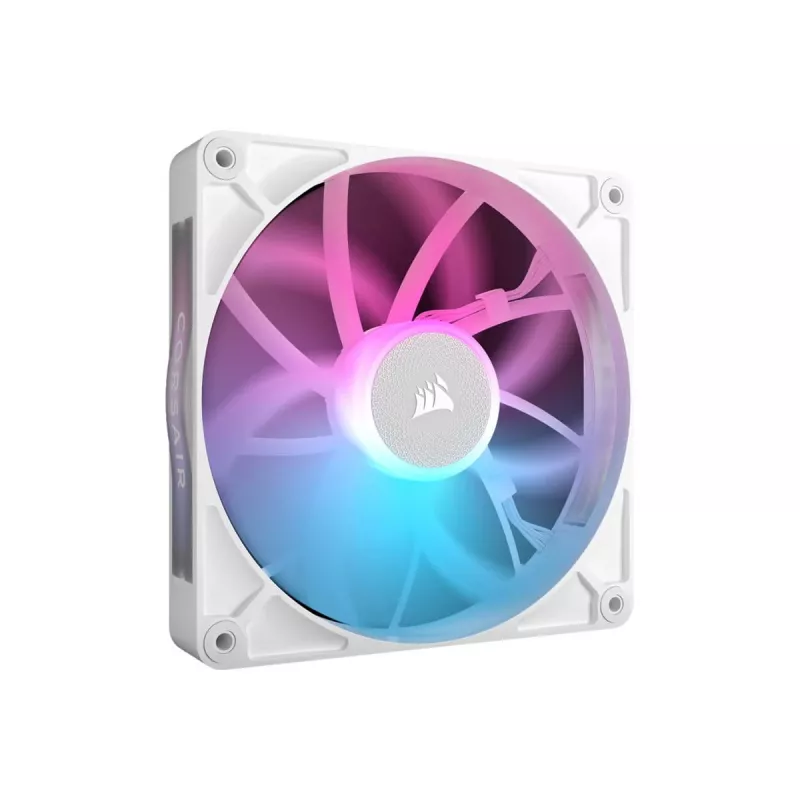

Fan Corsair iCUE LINK RX140 RGB 14 cm White 300-1700 RPM

The CORSAIR iCUE LINK RX140 RGB is a 140 mm system fan designed to deliver high airflow and static pressure for case and radiator cooling while maintaining low noise levels. It features CORSAIR AirGuide technology, an optimized blade profile and fan housing, and a magnetic dome bearing for reduced friction and longer life. The white finish and RGB lighting integrate with iCUE LINK for chained connections and centralized control through CORSAIR iCUE software. The fan operates across a speed range of 300–1700 RPM and is intended for use in desktop PC builds requiring effective cooling and aesthetic lighting.

Advantages

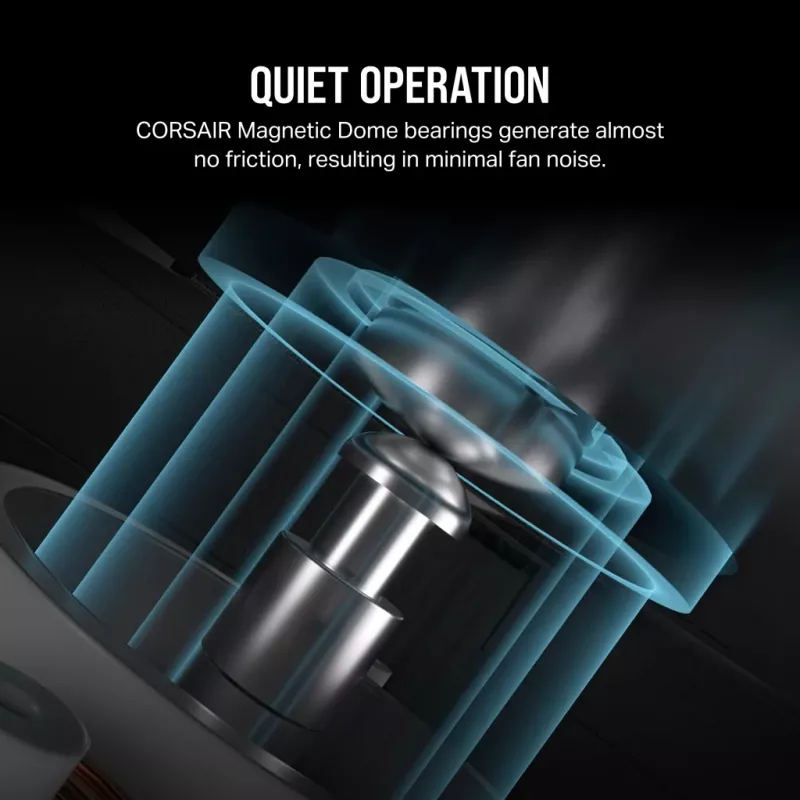

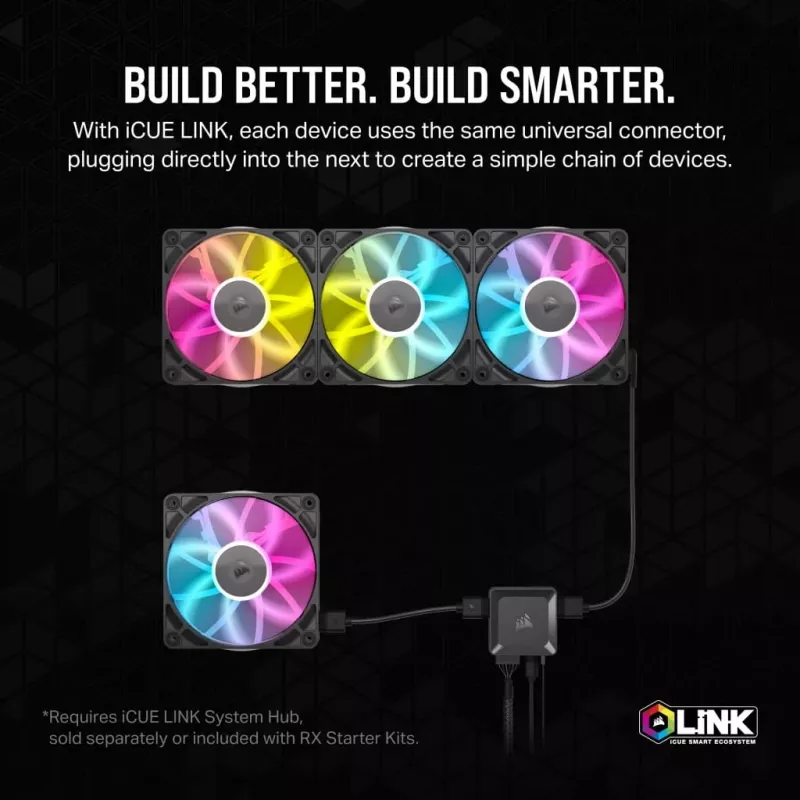

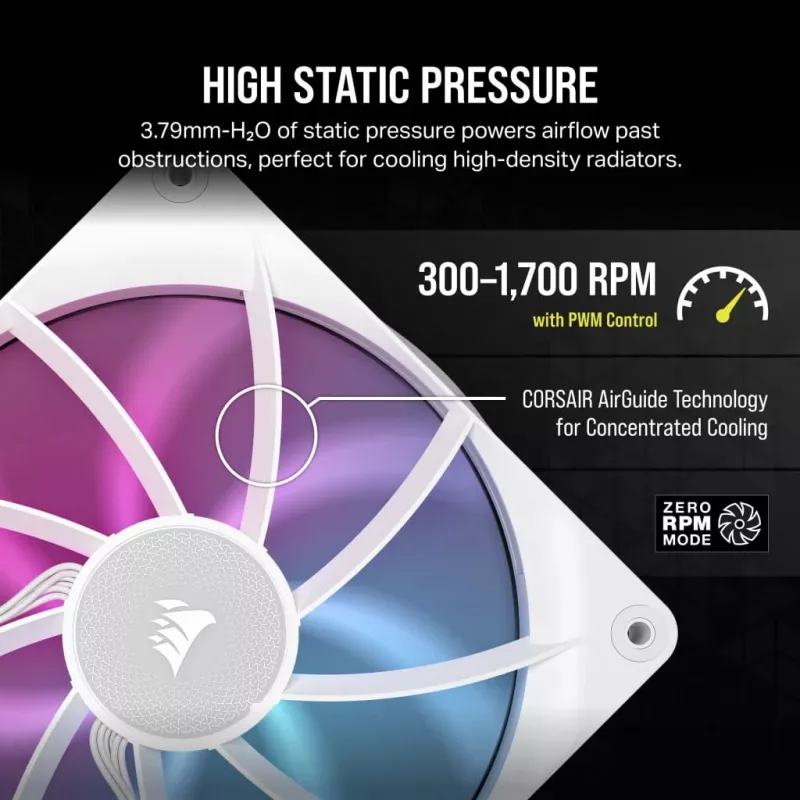

The RX140 RGB balances strong airflow and static pressure to move air efficiently through radiators and obstructions, aided by AirGuide stator vanes that focus exhaust for improved heat dissipation. An optimized blade shape and maximized blade radius inside the housing increase airflow efficiency, while the magnetic dome bearing reduces mechanical noise and friction for quieter operation and improved longevity. iCUE LINK compatibility allows components to connect in a daisy chain using a single connector and enables centralized fan speed and lighting control through CORSAIR iCUE.

Suitable for

• Case cooling in mid-tower and full-tower desktop PCs
• Radiator cooling for liquid CPU/GPU cooling loops
• Builds that require daisy-chained iCUE LINK components and synchronized RGB

Key specifications

• Type: Fan
• Fan diameter: 140 mm
• Speed range: 300–1700 RPM
• Product colour: White
• Bearing: Magnetic dome bearing
• Brand/Model: CORSAIR iCUE LINK RX140 RGB (MPN CO-9051023-WW, EAN 0840006680970)
• Weight: 0.028 kg

How to use

Install the RX140 RGB in your PC case or radiator mounting points using the included QuikTurn screws for quick and secure attachment. Connect the fan to the iCUE LINK chain using the provided connector and link it to other iCUE LINK devices as needed. Use CORSAIR iCUE software to configure fan curves, set target RPM ranges, and customize RGB lighting profiles. Ensure proper airflow direction and orientation relative to other fans and radiator placement for optimal thermal performance.

Recommendations

For radiator installations, position the RX140 to push air directly through the fins and set fan curves in iCUE to balance noise and cooling needs. When chaining multiple iCUE LINK devices, route cables to minimize obstruction of case airflow and verify connections before powering the system.
