CORSAIR Qx RGB Series Icue Link Qx120 RGB 120mmmagnetic Dome RGB Fan Starter Kit

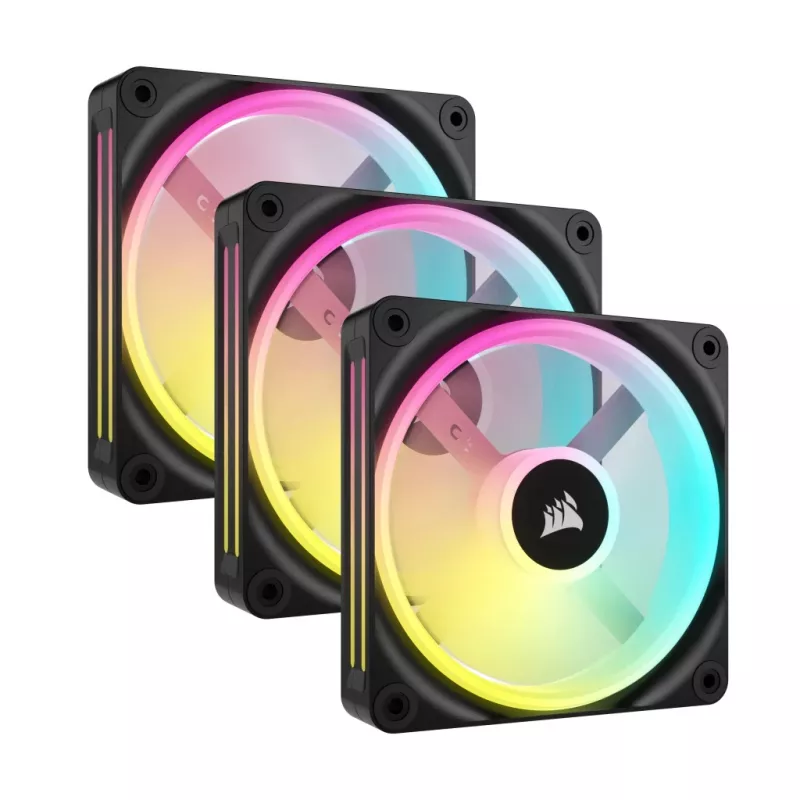

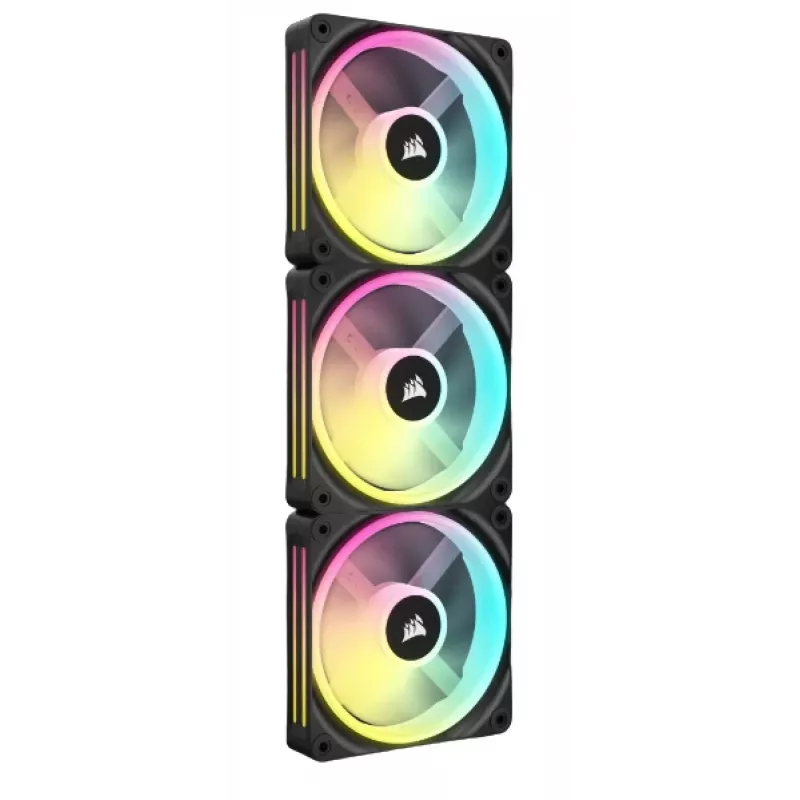

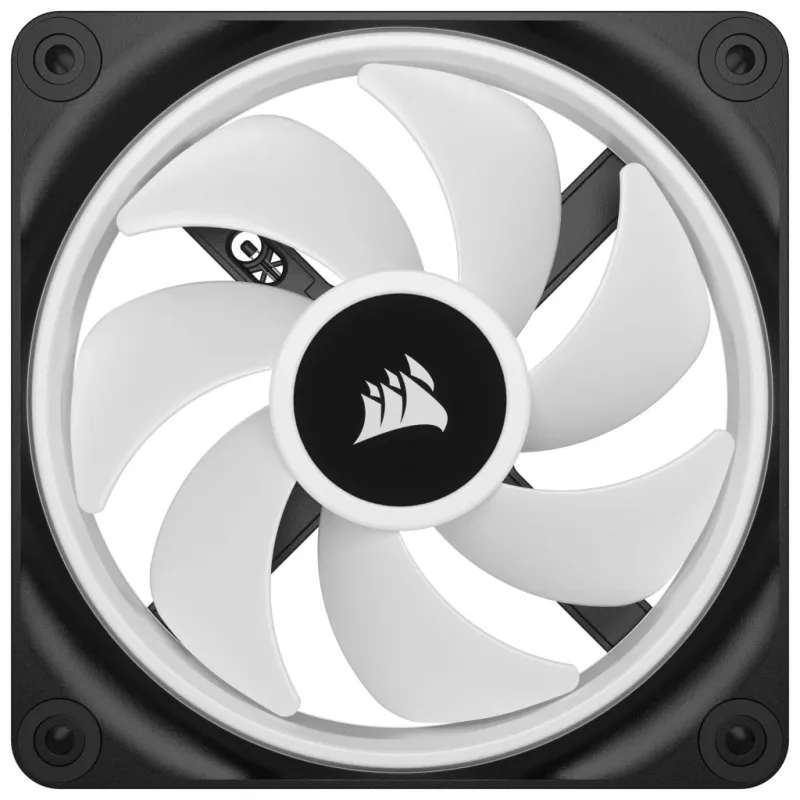

The CORSAIR iCUE LINK QX120 RGB 120mm PWM Fans Starter Kit includes three 120 mm smart fans and an iCUE LINK System Hub for single-cable setup. Each fan integrates two light zones with a total of 34 RGB LEDs and a built-in temperature sensor and MCU for more advanced monitoring and control. Fans operate from 480 to 2,400 RPM with PWM control, provide up to 63.1 CFM airflow and 3.8 mm-H2O static pressure, and support Zero RPM mode for silent low-load operation. The kit uses CORSAIR's iCUE LINK ecosystem to chain components together and simplify cable management while enabling two-way communication through the System Hub.

Advantages

The starter kit reduces cable clutter by using a single connector chain and an included iCUE LINK System Hub, allowing components to detect and configure automatically. Lighting is visible from multiple angles thanks to dual-zone RGB with 34 LEDs per fan and exclusive modes such as Time Warp. Built-in temperature sensors and dedicated MCUs in each fan provide smarter control and integration with CORSAIR iCUE software. Magnetic dome bearings minimize friction for lower noise and longer life, while PWM control delivers precise fan speed from quiet idle to high-performance cooling.

Suitable for

• ATX, microATX and mini-ITX PC cases that accept 120 mm fans
• Custom gaming and workstation builds requiring RGB lighting and temperature-aware cooling
• Systems where cable management and easy component chaining are important
• Users who want software control via CORSAIR iCUE

Key specifications

• Fan diameter: 120 mm
• Speed range: 480–2,400 RPM (PWM)
• Maximum airflow: up to 63.1 CFM
• Maximum static pressure: 3.8 mm-H2O

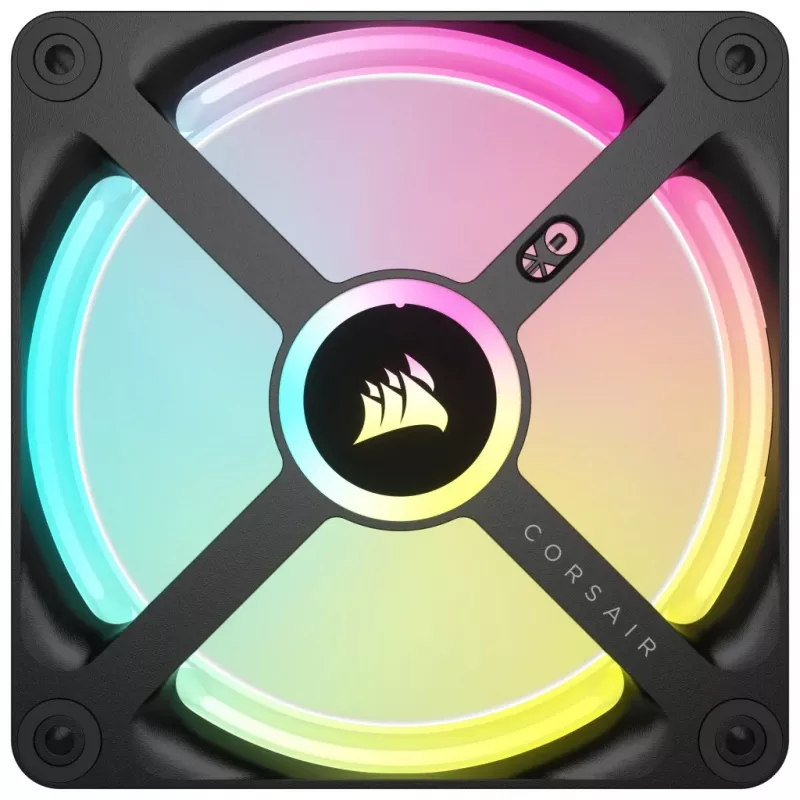

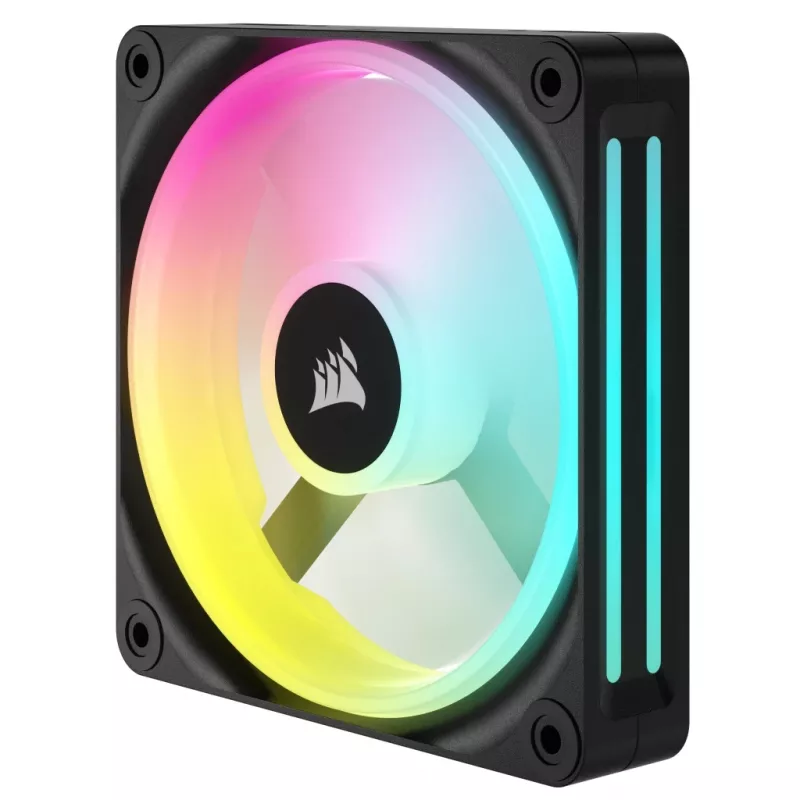

• RGB LEDs: 34 LEDs per fan across two light zones
• Bearing: magnetic dome bearing
• Features: built-in temperature sensor, dedicated MCU, Zero RPM support

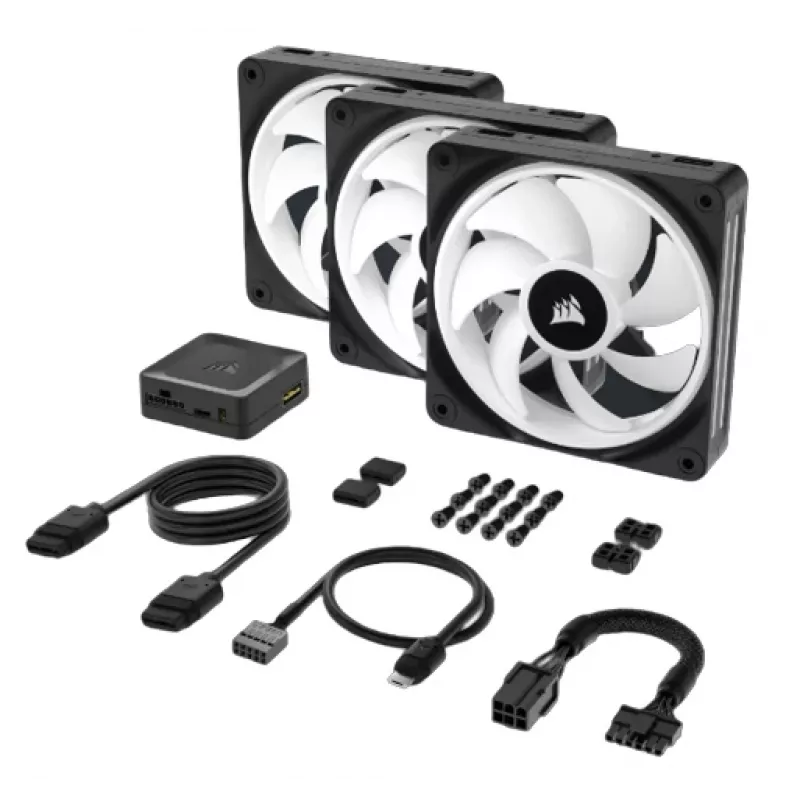

• Includes: three QX120 RGB fans and iCUE LINK System Hub
• Colour: Black
• MPN/EAN: CO-9051002-WW / 0840006697947

How to use

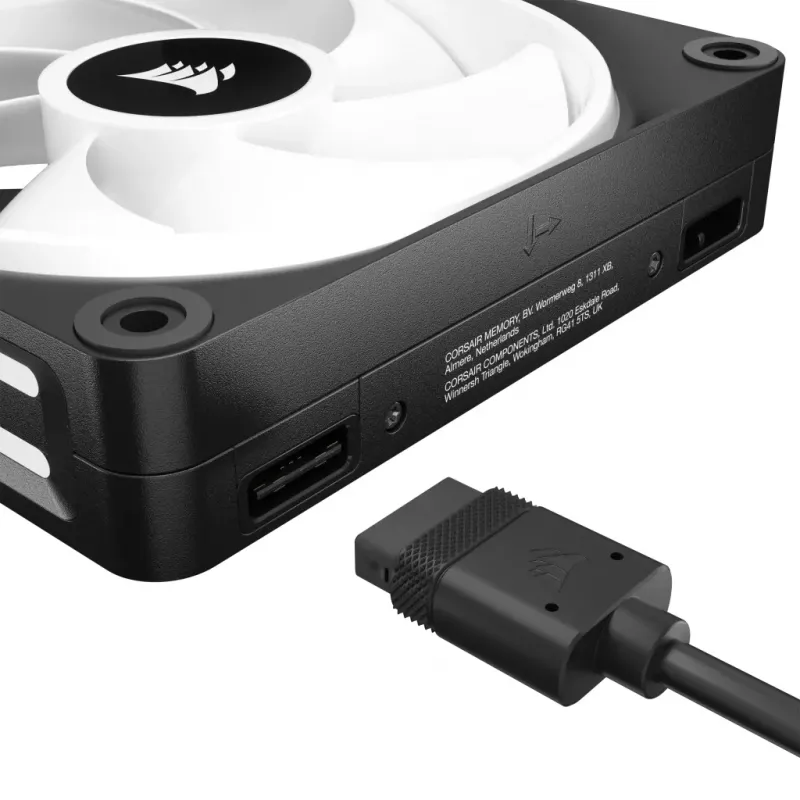

Install the fans into available 120 mm mounting locations in your chassis and connect them in a chain to the iCUE LINK System Hub using the included single-cable connectors. Connect the System Hub to your motherboard or to a compatible CORSAIR controller as instructed by the hub documentation. Use PWM fan headers or the hub's power connections for fan power and enable PWM control in BIOS or through CORSAIR iCUE software. Configure lighting, temperature monitoring and custom fan curves in iCUE for integrated control.

Recommendations

For best results, place the fans to optimize airflow direction (intake and exhaust), monitor temperatures with iCUE and set custom fan curves; enable Zero RPM mode for quieter operation at low loads. Ensure the hub is accessible and that the chain does not exceed the maximum recommended length stated in the iCUE LINK documentation.
