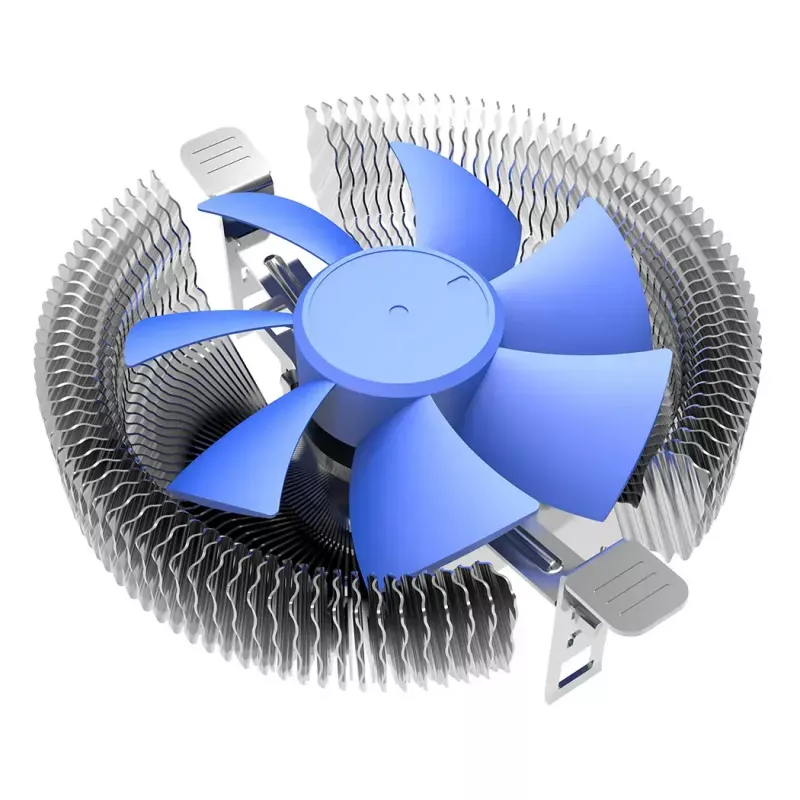

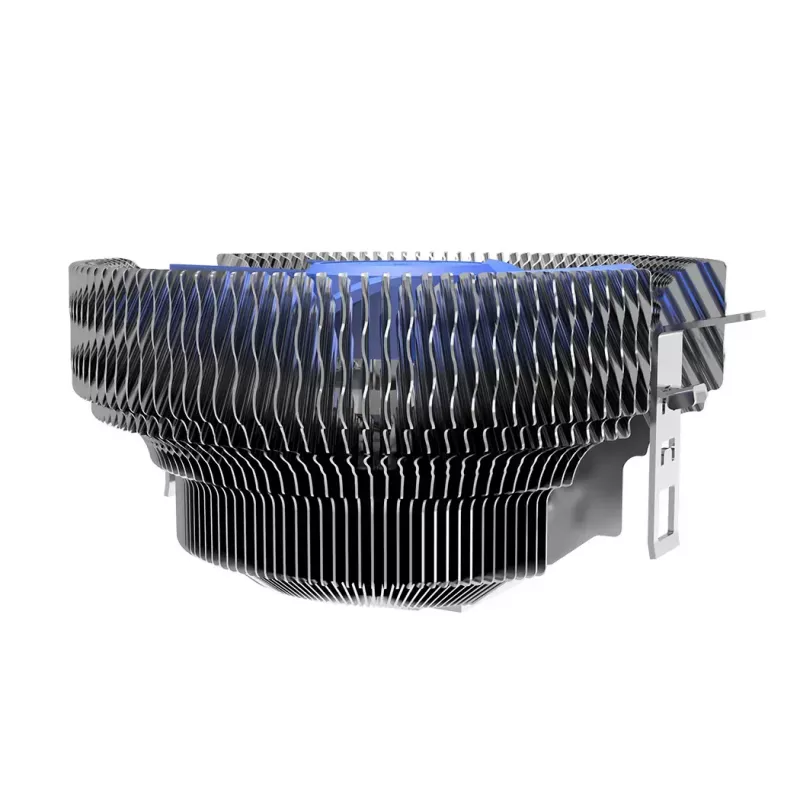

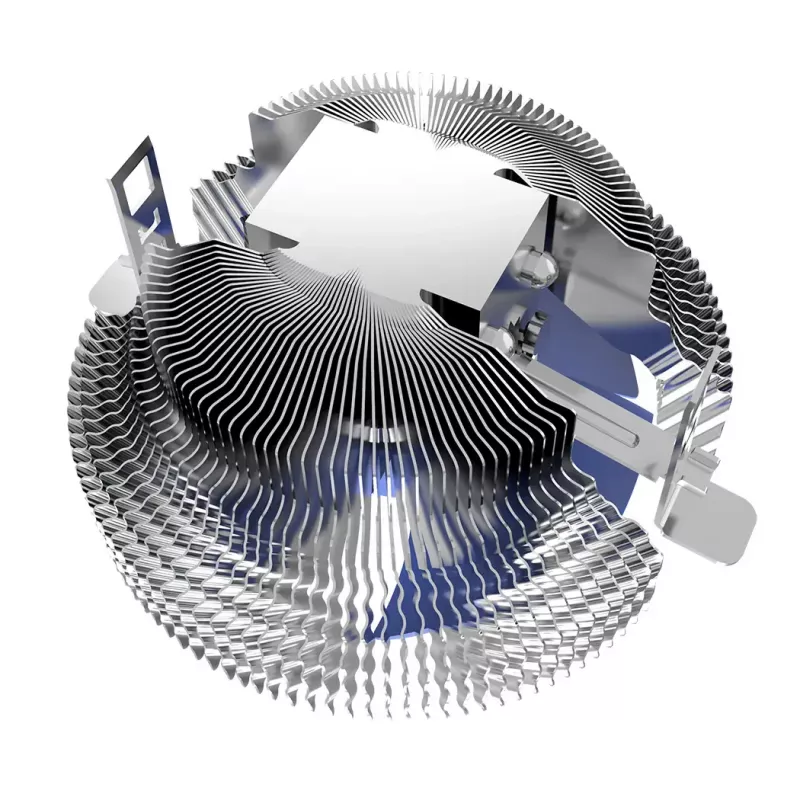

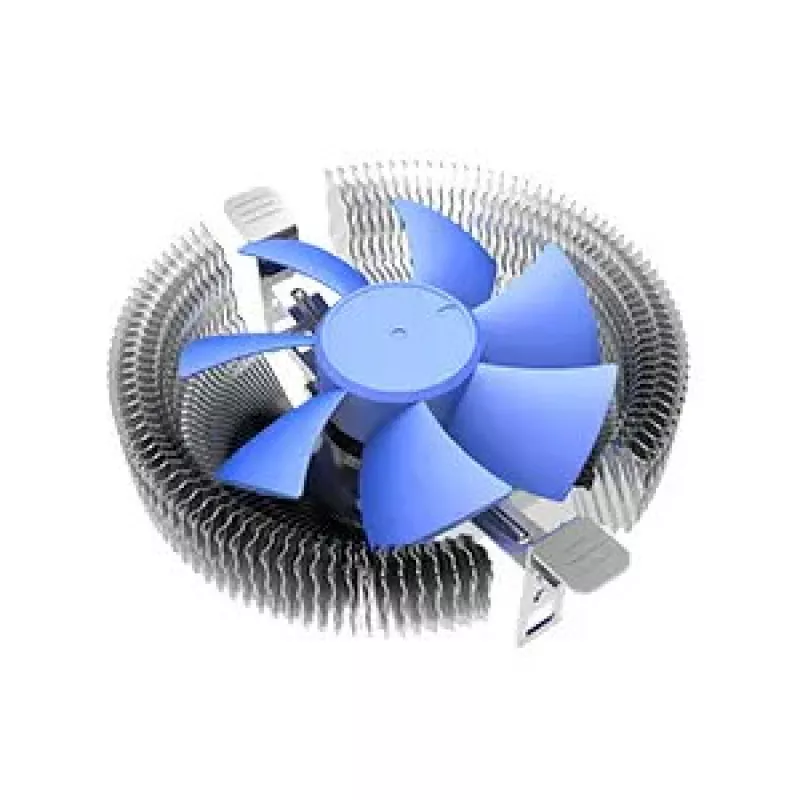

Cooling set PCCOOLER E90 Top-Blow CPU Cooler 8 cm 1000-2000 RPM Hydraulic Bearing Blue

The PCCOOLER E90 Top-Blow CPU Cooler is a compact top-flow cooler with an 80 mm fan and an aluminium baseplate. It measures 127×112×57 mm (L×W×H) and is designed to provide up to 75 W TDP cooling for mainstream desktop processors. The fan uses a hydraulic bearing for reduced friction and improved lifespan, and the cooler is finished in blue.

Advantages

The cooler combines a small footprint with a top-blow design that directs airflow onto the CPU and nearby components. Its 80 mm fan spins up to 2000 ±10% RPM and delivers up to 35 CFM while operating at low noise levels. The aluminium baseplate helps transfer heat efficiently to the fan for consistent cooling up to the specified 75 W TDP.

Suitable for

• Cooling mainstream desktop CPUs with up to 75 W TDP
• Small form-factor builds and compact PC cases
• Systems using Intel LGA 1150/1151/1155/1156/775 sockets
• Systems using AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 sockets

Key specifications

• Dimensions: 127×112×57 mm (L×W×H)
• Fan diameter: 80 mm
• Fan speed: 1000–2000 RPM (max 2000 ±10% RPM)
• Airflow: up to 35 CFM
• Noise level: approx. 18 dB
• Bearing type: hydraulic
• Baseplate material: aluminium (35×45 mm)
• Supported sockets: Intel LGA 1150/1151/1155/1156/775; AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
• Rated cooling capacity: 75 W TDP

How to use

Install the E90 on a compatible CPU socket following the mounting parts and instructions provided with the product. Place the aluminium baseplate directly onto the CPU surface with an appropriate thin layer of thermal paste, secure the mounting brackets for your socket type, and connect the fan to the motherboard fan header. Verify that the fan spins and that airflow is not obstructed by case components or cables.

Recommendations

For reliable performance, use with processors that do not exceed 75 W TDP, ensure correct mounting and thermal paste application, and keep the fan and heatsink free of dust for long-term quiet operation.
