Cooler Akasa AK-CC7122BP01 Processor Cooling System 7.5 cm Aluminium Blue

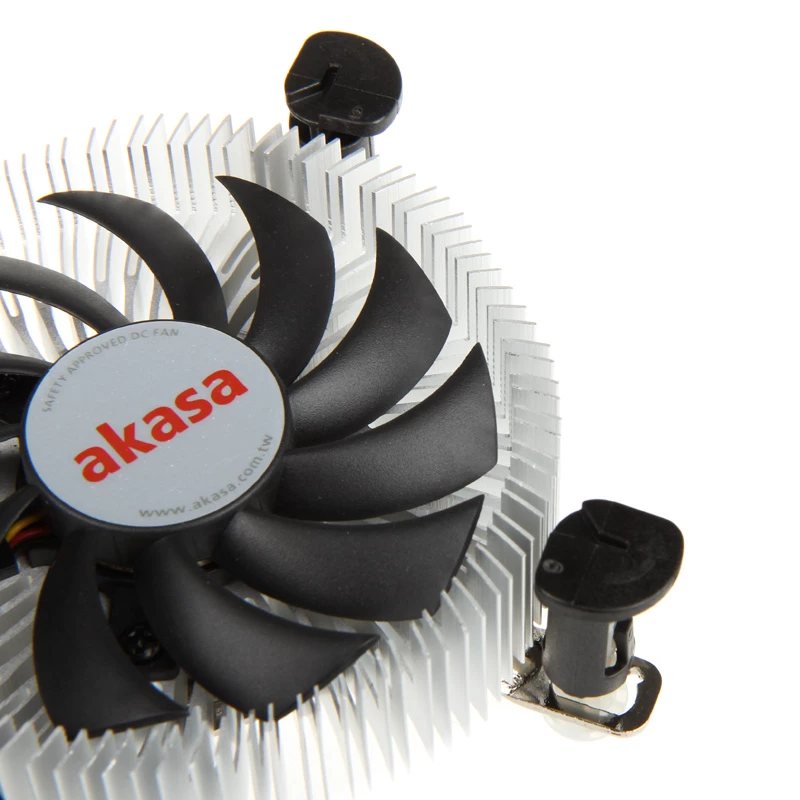

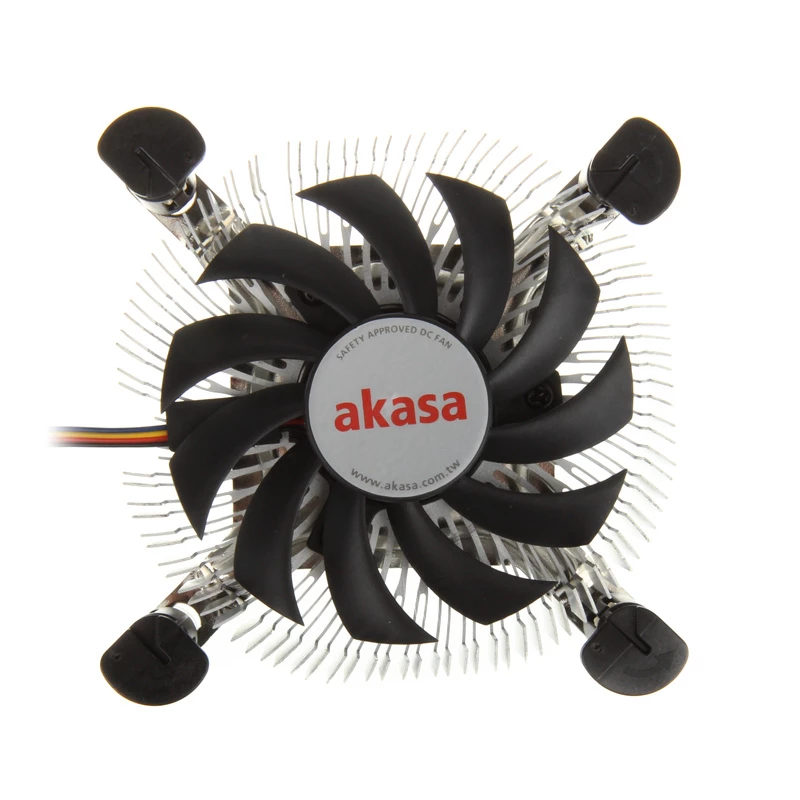

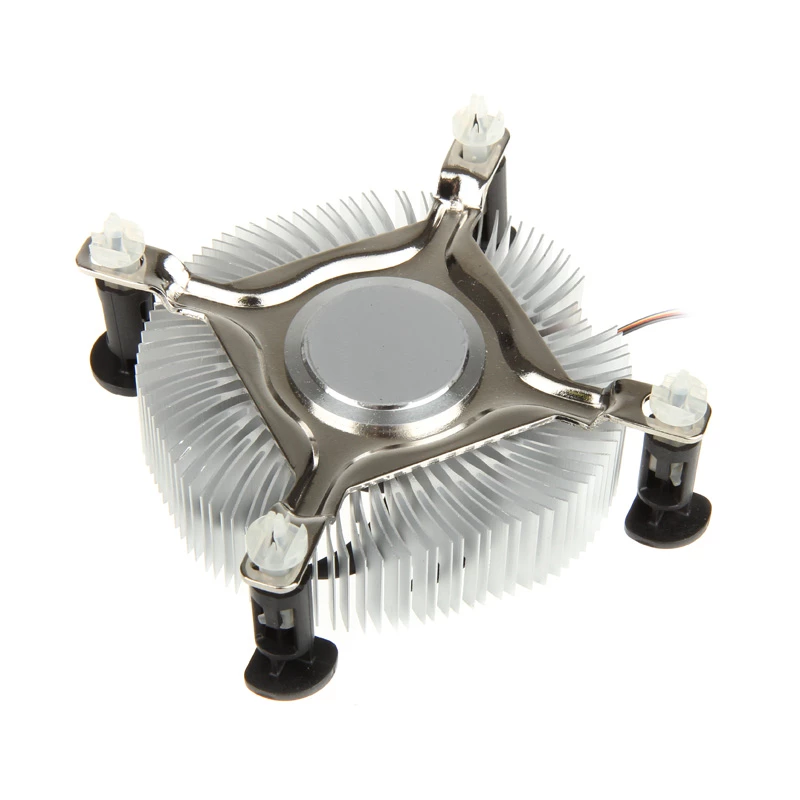

The Akasa AK-CC7122BP01 is an ultra-compact, low-noise processor cooler with a 75 mm PWM fan and an aluminium heatsink. Its low-profile design and total height of 26 mm make it suitable for mini-ITX, HTPC and other small form factor systems. The cooler is compatible with Intel LGA775, LGA1155 and LGA1156 sockets and ships with pre-applied high-performance thermal compound.

Advantages

The multi-directional aluminium heatsink is engineered to maximize heat dissipation while the embedded 75 mm PWM fan with twin ball bearings provides long life and quiet operation. Intel-approved push pins enable quick, reliable installation without mounting adjustments. Compact dimensions (87.2 × 26 × 85.2 mm) and a lightweight aluminium construction help maintain low system profile and efficient airflow in constrained enclosures.

Suitable for

• Mini-ITX and small form factor (SFF) desktop builds
• Home theater PCs (HTPC)
• Systems using Intel LGA775, LGA1155 or LGA1156 processors

Key specifications

• Model: Akasa AK-CC7122BP01
• Fan diameter: 75 mm (PWM)
• Fan speed: 600–3000 RPM
• Maximum air pressure: 1.81 mmH2O
• Material: Aluminium heatsink
• Mounting: Intel approved push pins (LGA775, LGA1155, LGA1156)
• Pre-applied thermal compound
• Dimensions (W×D×H): 87.2 × 26 × 85.2 mm
• Colour: Blue / Aluminium
• Weight: 0.1528 kg

How to use

Remove the cooler from packaging and confirm the pre-applied thermal compound covers the base evenly. Align the cooler over the CPU socket and press the Intel-approved push pins until they click into place; the push pins automatically slide into the correct position for LGA775, LGA1155 and LGA1156 sockets. Connect the 4-pin PWM fan connector to the motherboard CPU fan header to allow speed control. Ensure the cooler is seated flat and that airflow is not obstructed by nearby components or cables.

Recommendations

Install the cooler in a clean, powered-down system on a compatible Intel socket. Periodically check fan operation and clear dust from the heatsink fins to maintain cooling performance. For systems with restricted airflow, ensure case ventilation is adequate to complement this low-profile cooler.
