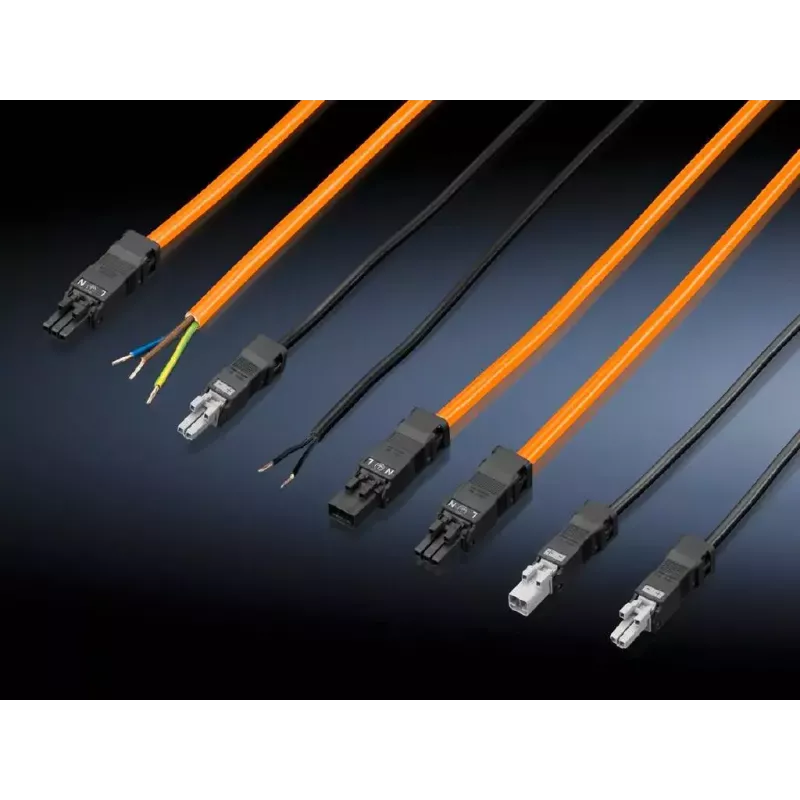

Connector Rittal 2500530 Orange

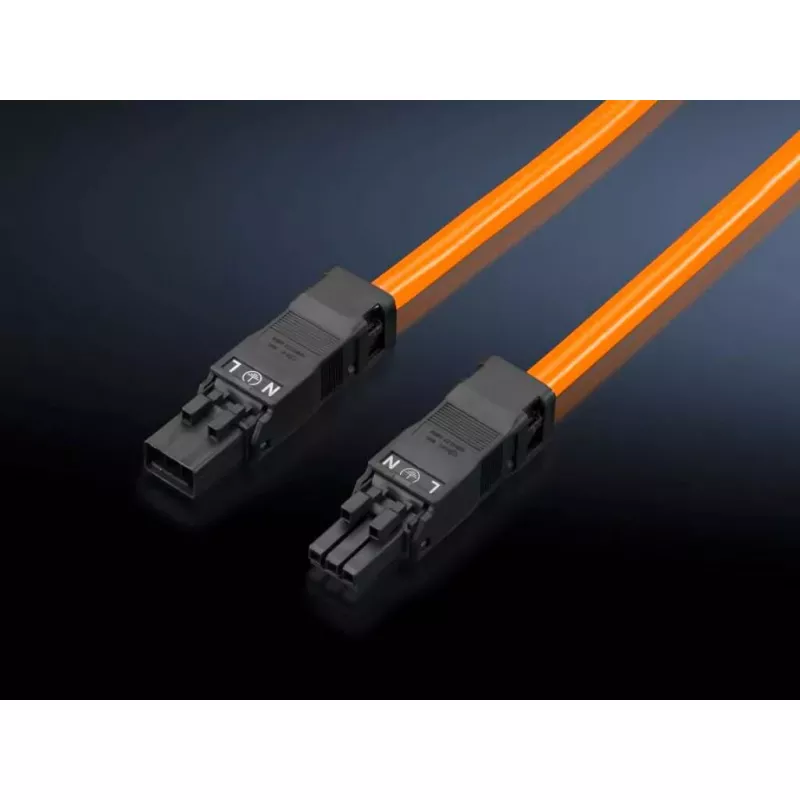

The Rittal 2500530 Orange connector is a double-ended male electrical connector engineered for reliable connections in industrial and technical environments. Its vivid orange color improves visual identification and organization within control cabinets, wiring harnesses, and service panels. The connector features a robust housing and contact design that supports repeatable mating cycles and sustained electrical performance under typical installation conditions.

Advantages

The orange housing provides high visibility for rapid identification during installation and maintenance. Durable materials and precise contact alignment reduce the risk of connection failures and support consistent electrical contact. Compact dimensions allow use in space-constrained assemblies while maintaining mechanical stability and ease of handling.

Key specifications

How to use

Insert the male contacts into the corresponding female counterpart ensuring correct alignment and full engagement. Verify the mechanical fit and confirm electrical continuity with an appropriate tester before applying full system voltage. Use appropriate mounting and strain-relief measures as required by the installation to prevent undue mechanical stress on the connector and connected wiring.

Recommendations

For reliable long-term performance, avoid exposure to prolonged aggressive chemical environments and extreme mechanical vibration without suitable mounting. Perform periodic inspections of contact integrity and cleanliness, and replace the connector if signs of wear or corrosion are detected.
