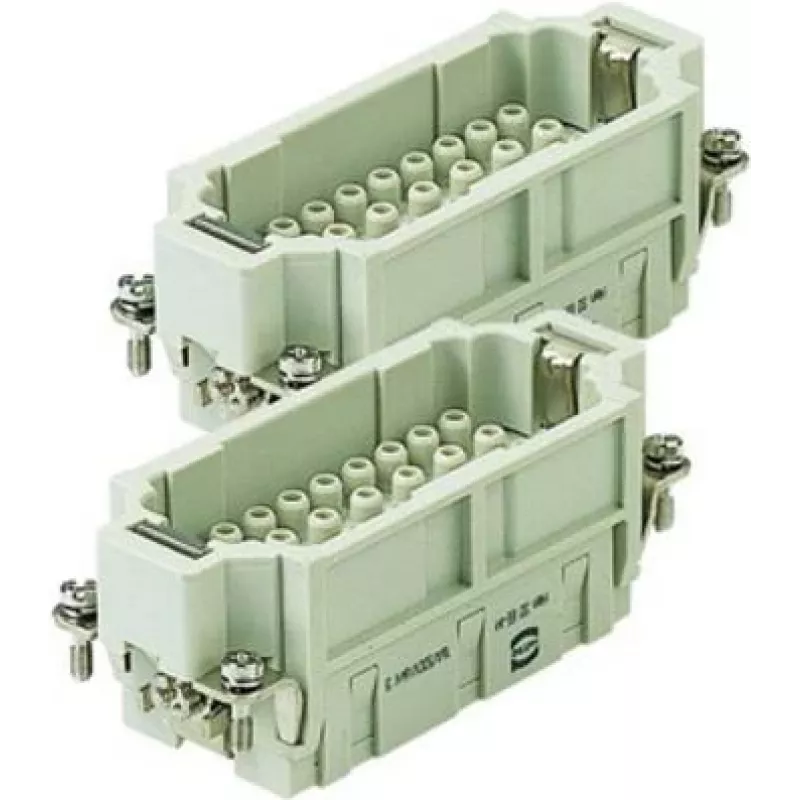

Connector insert Harting 09320323011, single piece

Harting connector insert 09320323011 is a single-piece contact insert intended for installation into compatible Harting connector housings. It provides the electrical contact interface required for secure and reliable mating between cable assemblies and equipment. Supplied as an original Harting part, the insert is designed to match form, fit and function of the corresponding housings to facilitate straightforward replacement and maintenance in industrial and electronic cabling systems.

Advantages

The insert ensures consistent electrical contact and mechanical alignment when used with matching Harting housings. Being a single original component, it simplifies inventory and replacement procedures while maintaining compatibility with established connector families. The design supports reliable mating cycles and contributes to reduced downtime by enabling quick swap-out during servicing.

Suitable for

• Replacement of worn or damaged inserts in Harting connector housings
• Industrial machinery and automation cabling
• Control cabinets and panel connections
• Electronic equipment requiring original manufacturer parts
• Maintenance and repair operations in manufacturing environments

Key specifications

• Form factor: single-piece contact insert suitable for compatible Harting housings
• Material characteristics: conductive contact elements with insulating carrier (as per Harting design)
• Function: provides electrical contact interface for connector mating
• Compatibility: designed to mate with matching Harting connector housings of the corresponding series
• Application environment: industrial and electronic cabling systems

How to use

Install the insert into the appropriate Harting connector housing following the housing manufacturer’s assembly guidance. Ensure correct orientation and full seating of the insert before securing the housing backshell or locking mechanism. When replacing an existing insert, disconnect power and verify that mating surfaces are clean and free of debris. After installation, perform a continuity or contact check to confirm proper electrical connection and secure mechanical retention.

Recommendations

Use the insert only with compatible Harting housings and mating contacts. For safe servicing, isolate power before replacing the insert and follow facility safety procedures. Store spare inserts in a dry, dust-free environment to preserve contact integrity and ensure reliable performance when fitted.
