Conceptronic EMRICK USB 3.2 Gen 2 PCIe Card, 1-Port USB-C & 1-Port USB-A

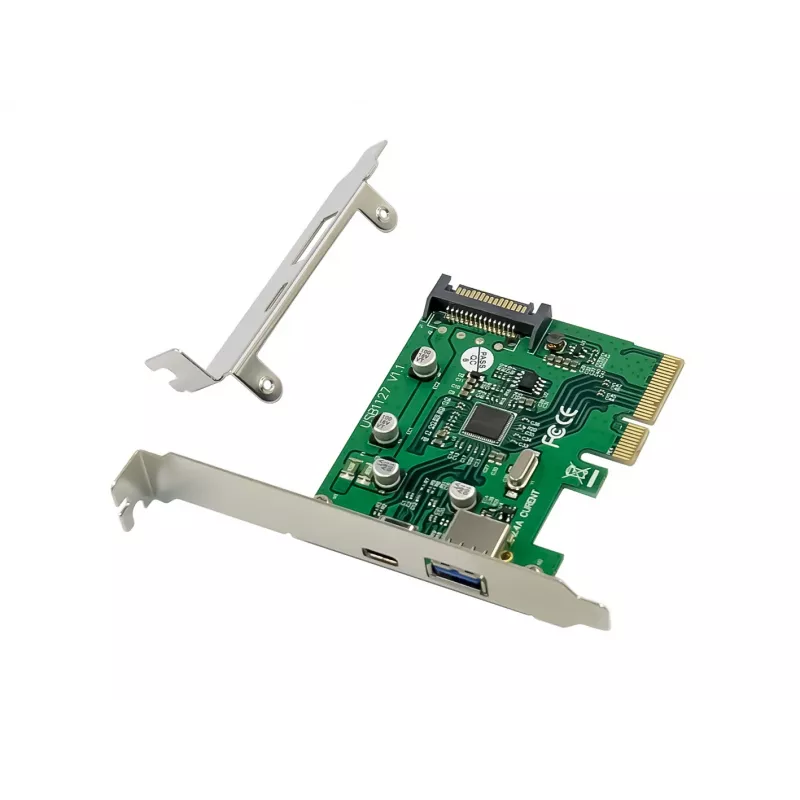

The Conceptronic EMRICK PCIe Card adds two SuperSpeed USB 3.2 Gen 2 ports to a desktop computer: one USB-C and one USB-A. The card supports up to 10 Gbps transfer speeds and complies with PCIe 3.0 standards. It fits standard PCIe slots and has a compact form factor (58 mm × 80 mm × 20 mm), making it suitable for expanding a PC's USB connectivity for fast external storage, peripherals and data transfer tasks.

Advantages

This PCIe card provides one USB-C and one USB-A SuperSpeed port that deliver up to 10 Gbps for quick file transfers. It is compatible with common Windows versions, follows PCIe 3.0 standards for reliable operation, and has a compact design that fits most desktop systems. The card is internally mounted and lightweight, allowing a straightforward hardware upgrade without taking much space inside the case.

Suitable for

• Connecting external SSDs and high-capacity storage devices
• Fast backups and large file transfers between desktop and external drives
• Connecting USB-C and USB-A peripherals that require SuperSpeed bandwidth
• Upgrading older desktops to support modern USB 3.2 Gen 2 devices

Key specifications

• Model: Conceptronic EMRICK (MPN: EMRICK09G)
• Ports: 1 × USB-C, 1 × USB-A (USB 3.2 Gen 2 / 10 Gbps)
• Host interface: PCIe (PCIe 3.0 compatible)
• Dimensions: 58 mm (W) × 80 mm (D) × 20 mm (H)
• Product colour: Green
• Weight: 0.039 kg
• Made in: China
• EAN: 4015867228005

How to use

Power off the desktop and unplug it from the mains. Open the case and locate an available PCIe slot. Insert the Conceptronic EMRICK PCIe card into the slot until it is firmly seated and secure it with the slot bracket screw. Close the case and reconnect power. Boot the system, install the supplied drivers if required by your operating system, and connect USB devices to the USB-C or USB-A ports. Verify device recognition in the OS and use at SuperSpeed where supported.

Recommendations

Install drivers provided with the product or from the manufacturer’s support site for best compatibility. Ensure the card is placed in a PCIe slot that meets the system’s bandwidth needs and avoid forcing the card during installation. For optimal transfer speeds, use USB 3.2 Gen 2 compatible cables and devices.
