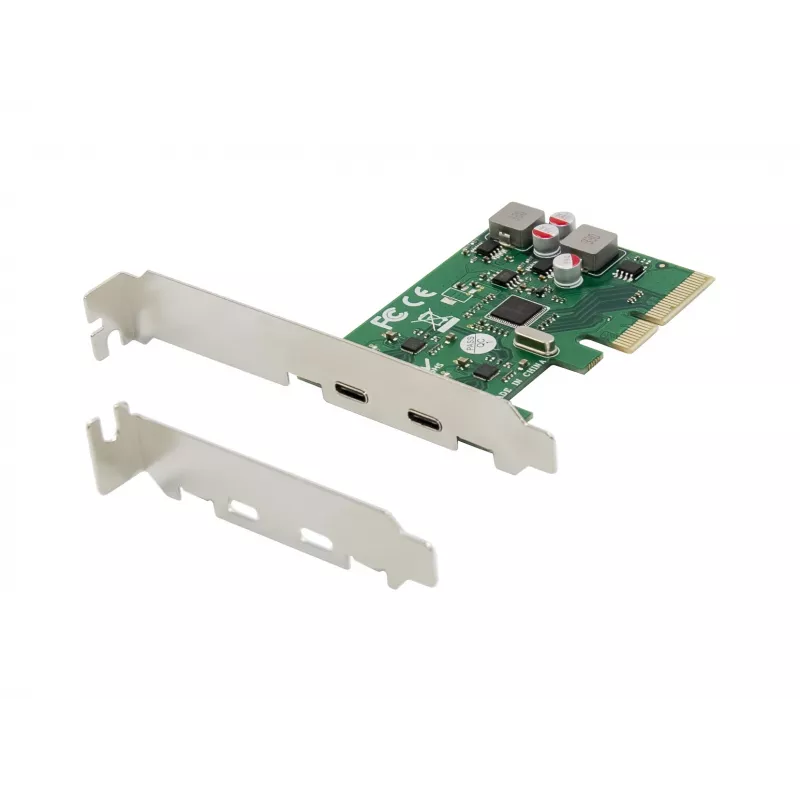

Conceptronic EMRICK 2-Port USB 3.2 Gen 2 Type-C PCIe Card, self-powered

The Conceptronic EMRICK 2-Port USB 3.2 Gen 2 Type-C PCIe Card adds two SuperSpeed USB 3.2 Gen 2 Type-C ports to a desktop PC via a PCIe slot. It supports data transfer rates up to 10 Gbit/s and is self-powered with a compact PCB design (58 × 80 × 20 mm). The card is compatible with common Windows systems and provides an easy way to expand your computer's USB-C connectivity.

Advantages

This PCIe card delivers up to 10 Gbit/s transfer speed on two Type-C ports, enabling fast copying of large files. The internal PCIe host interface ensures direct integration with the motherboard. The compact, low-weight green PCB fits standard desktop systems and includes the necessary drivers for setup.

Suitable for

• Adding USB-C ports to a desktop PC
• High-speed data transfer for external SSDs and backups
• Connecting USB 3.2 Gen 2 peripherals such as docks and drives

Key specifications

• Product name: Conceptronic EMRICK 2-Port USB 3.2 Gen 2 Type-C (MPN: EMRICK08G)
• Interface: PCIe host interface
• Output: 2 × USB 3.2 Gen 2 (Type-C), up to 10 Gbit/s
• Compatibility: Windows 7, Windows 10 (driver installation required)
• Dimensions: 58 mm (W) × 80 mm (D) × 20 mm (H)
• Weight: 0.039 kg
• Product colour: Green
• Made in: China

How to use

Power off the computer and insert the PCIe card into an available PCI Express slot on the motherboard. Secure the card in the chassis, power on the PC, and install the included drivers according to the supplied instructions. After driver installation the two USB-C ports will be available for use with compatible devices.

Recommendations

For reliable performance, install the card in a full-length PCIe slot with proper ventilation and use high-quality USB-C cables. If your devices require external power, connect them to an appropriate power source; the card itself is self-powered by the system.
