Computer cooling system REDRAGON GC-F012 2000 RPM 20.5 mmH2O 120 mm

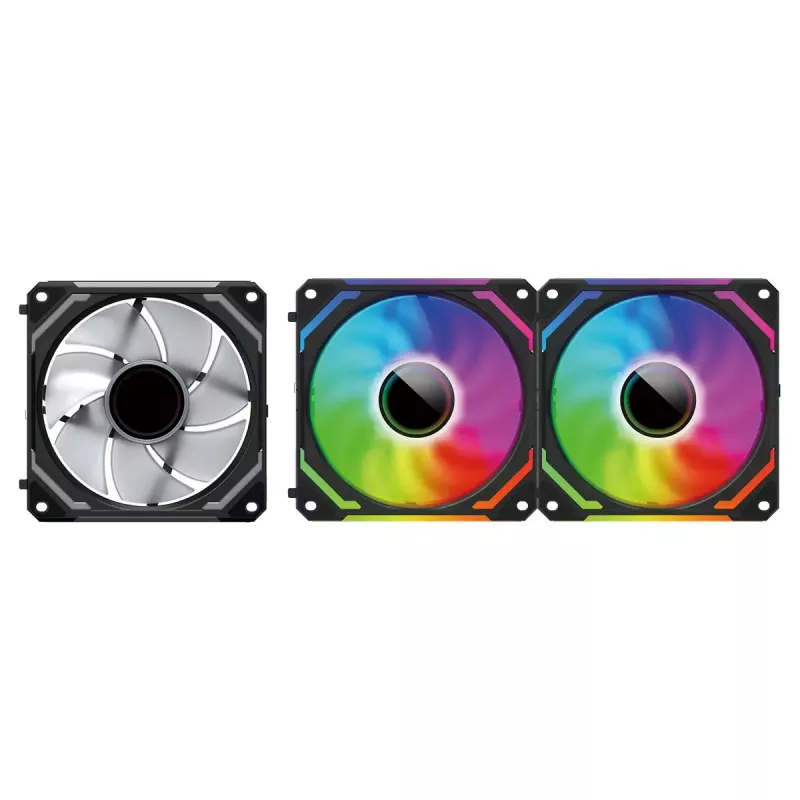

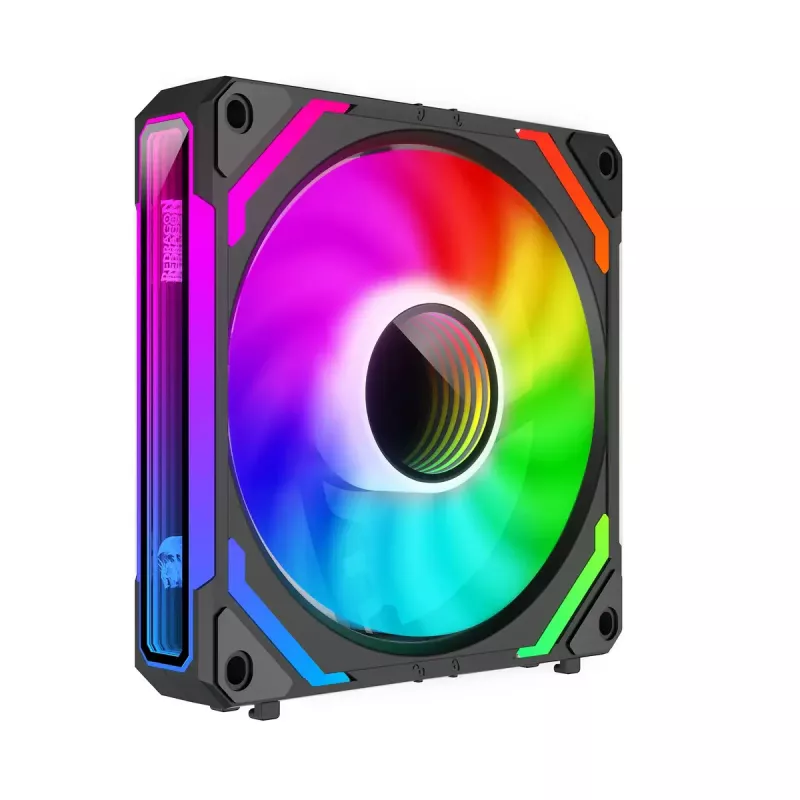

The Redragon GC-F012 fan set combines performance and aesthetics, illuminating your computer with millions of colors. The package contains three 120 mm × 120 mm × 25 mm fans featuring ARGB infinity mirror panels that create a deep, multi-color lighting effect while providing effective case ventilation.

Advantages

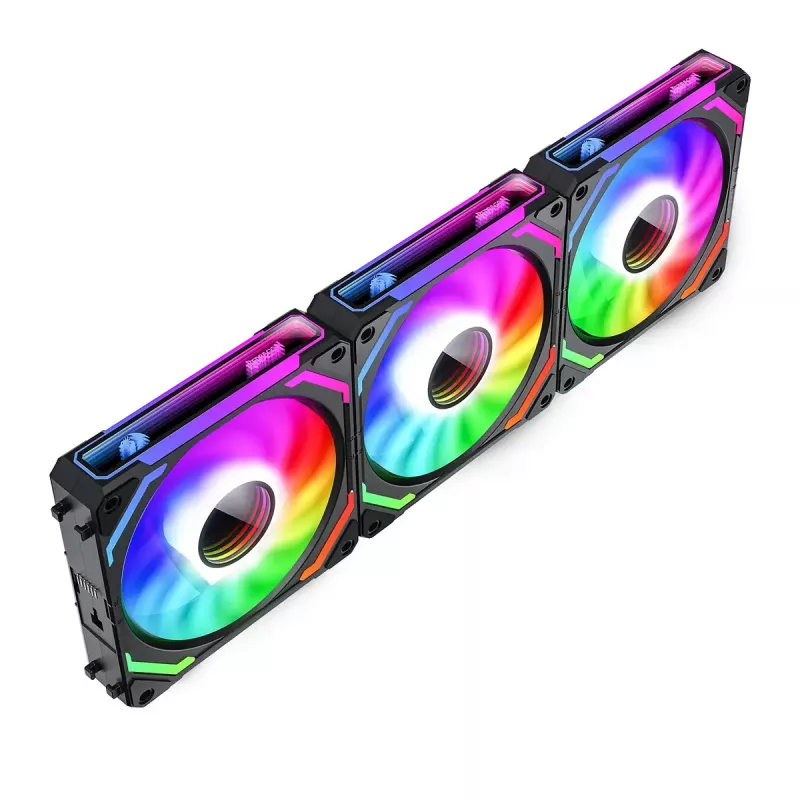

The daisy-chainable design reduces cable clutter by allowing multiple fans to connect through a single cable, improving airflow inside the case. Infinity mirror ARGB panels produce layered lighting effects that enhance the visual appearance of a gaming rig. High static pressure and elevated airflow ensure reliable cooling for demanding components, while dual-sided vibration damping with eight anti-vibration pads lowers operational noise.

Key specifications

• Fan size: 120 mm × 120 mm × 25 mm
• Quantity: 3 fans
• ARGB lighting: infinity mirror panels
• Airflow: up to 68.8 CFM
• Static pressure: 2.05 mm H2O
• Blade design: seven tapered blades
• Noise reduction: dual-sided vibration damping with eight anti-vibration pads
• Connectors: 4-pin PWM (speed control) and 3-pin 5V ARGB

How to use

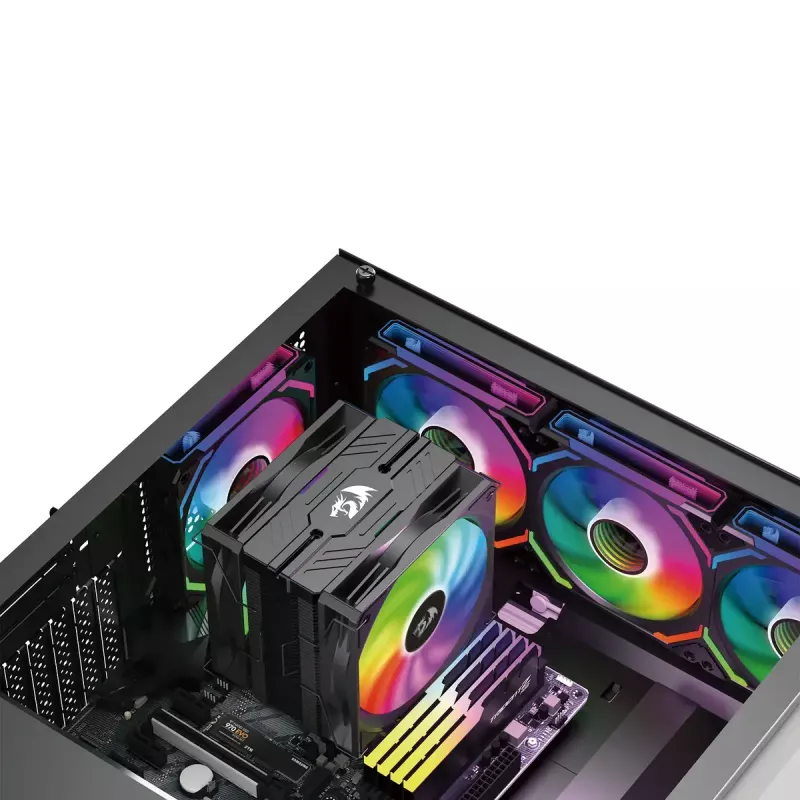

Install the three 120 mm fans in your case using the supplied mounting holes and screws, orienting airflow according to your cooling layout. Connect the 4-pin PWM connector to the motherboard fan header for speed control and the 3-pin 5V ARGB connector to an ARGB header or controller to enable lighting. Use the daisy-chain feature to link additional compatible fans with a single cable to reduce internal cable clutter. Verify connector alignment and secure connections before powering on the system.

Recommendations

For best cooling and lighting results, place the Redragon GC-F012 fans to create a balanced intake and exhaust airflow, ensure ARGB header compatibility with your motherboard or use a dedicated ARGB controller, and avoid obstructing the fan intakes to maintain optimal performance.
