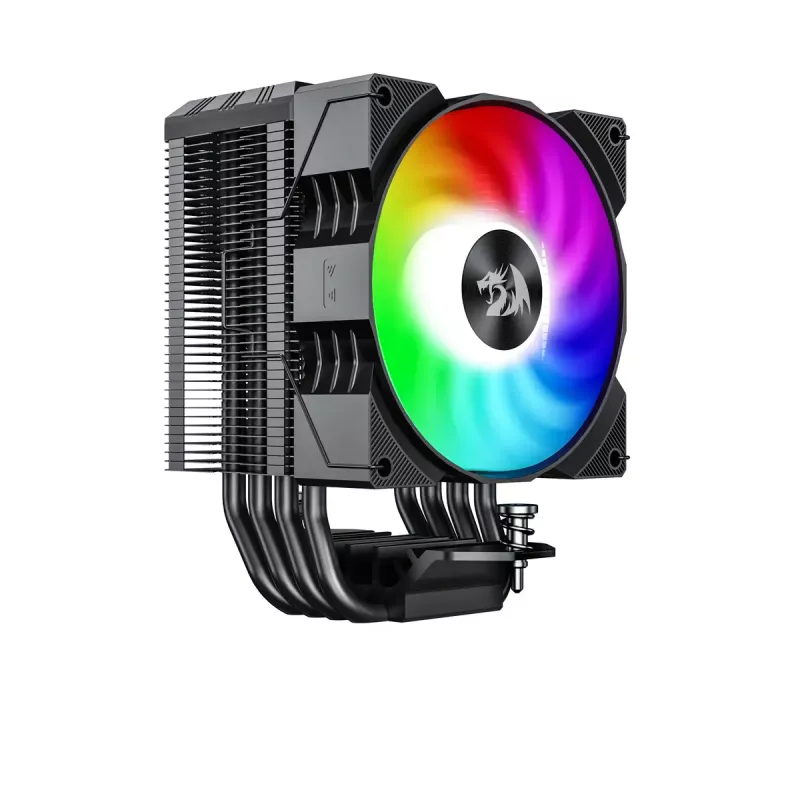

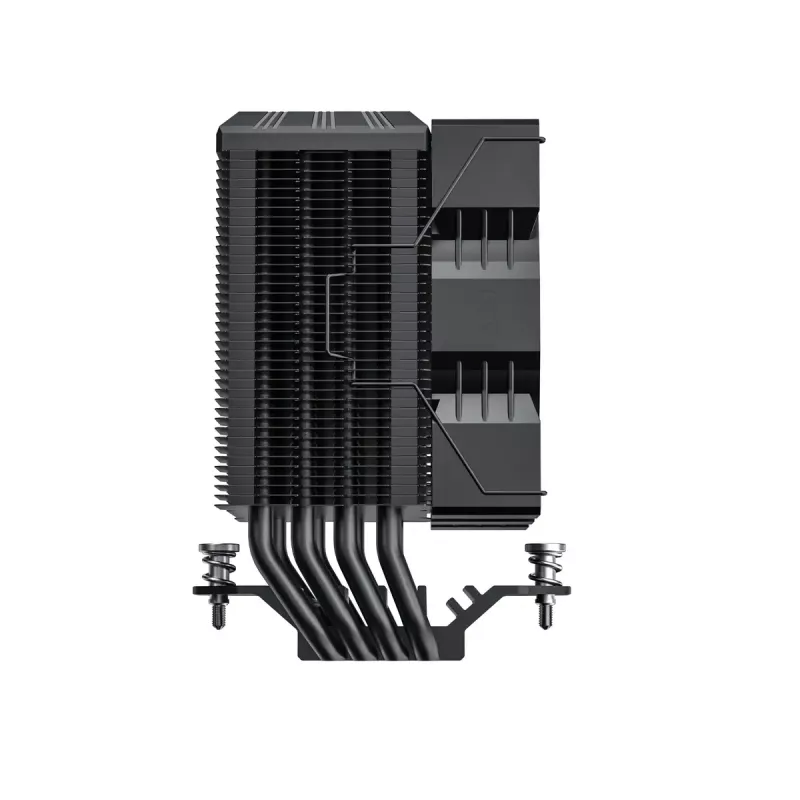

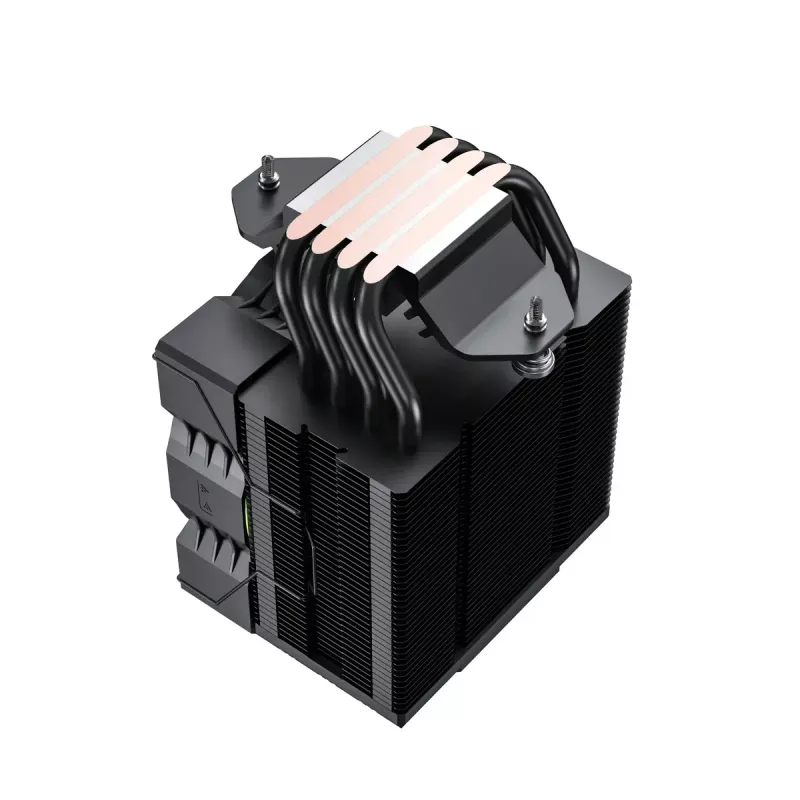

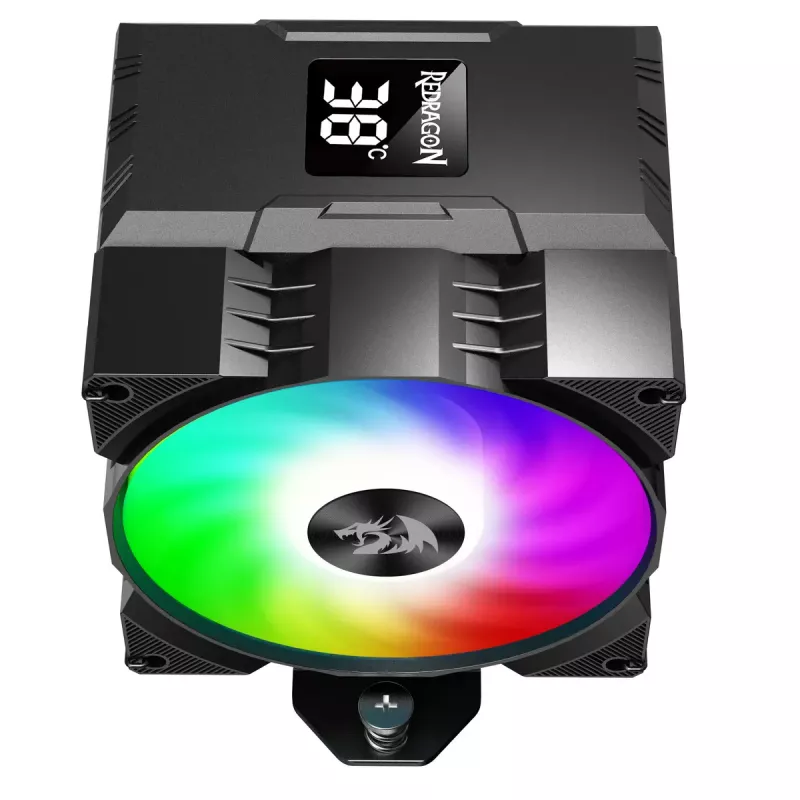

Computer cooling system REDRAGON CC-1014 9.2 cm 2500 RPM 2.49 mmH2O

The REDRAGON CC-1014 is a compact air cooler with overall dimensions of 153 x 158 x 115 mm and a 92 mm fan. It delivers up to 2500 RPM and an airflow of 48.8 CFM to maintain processor temperatures within safe limits. Designed for reliable operation under load, the cooler supports a TDP of 160 W and is compatible with common Intel and AMD sockets for straightforward installation.

Advantages

The hydrostatic bearing ensures quiet operation and a long service life of up to 50,000 hours while the 2.49 mmH2O static pressure improves heat dissipation. Its compact footprint makes it suitable for a wide range of PC builds, and RGB lighting provides a modern appearance. The fan’s performance balances airflow and noise for stable cooling during intensive tasks.

Suitable for

• Small to mid-size desktop PCs where compact cooling is required
• Systems running mid-range to some high-demand processors (up to 160 W TDP)
• Builds where quieter operation is preferred
• Setups that benefit from RGB-accented components

Key specifications

• Fan diameter: 92 mm
• Max fan speed: 2500 RPM
• Airflow: 48.8 CFM
• Static pressure: 2.49 mmH2O
• TDP: 160 W
• Dimensions: 153 x 158 x 115 mm
• Weight: 0.438 kg

How to use

Install the REDRAGON CC-1014 according to the motherboard and socket instructions: secure the cooler to the compatible Intel or AMD mounting bracket, apply thermal paste to the CPU surface if not pre-applied, and connect the fan and RGB headers to the appropriate motherboard connectors. Ensure the cooler is firmly mounted and that the fan can spin without obstruction. Power on the system and verify fan operation and temperature readout.

Recommendations

For best results, keep the system case ventilated and free of dust. Monitor CPU temperatures after installation to confirm the cooler meets your thermal requirements; consider case airflow improvements if temperatures remain high under load.
