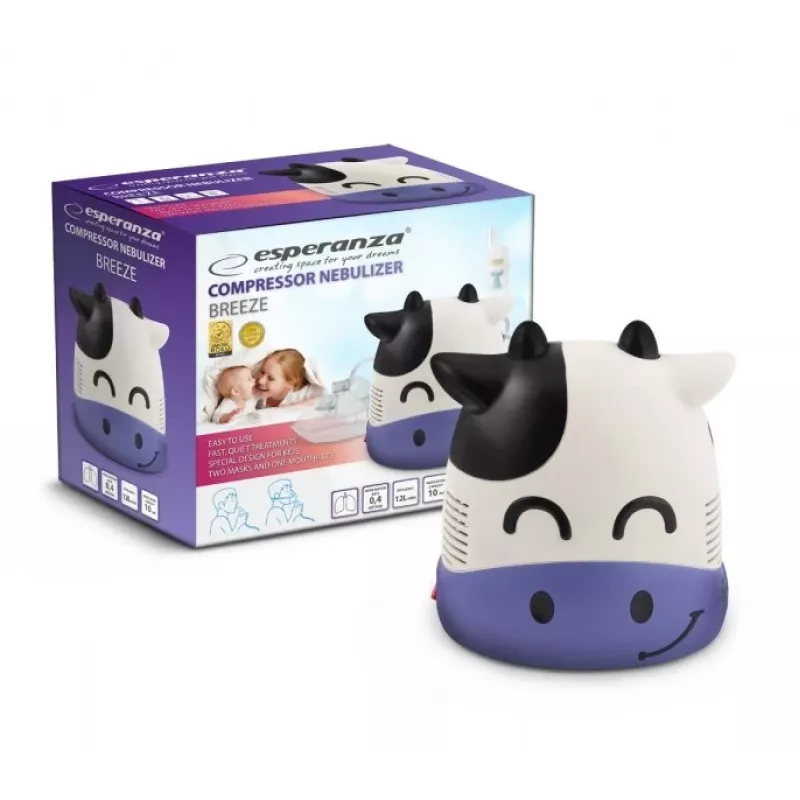

Compressor nebulizer Esperanza ECN001 compressor inhaler, 220V, particle size 0.5–10 μm, spray 10 ml, respirable fraction ≥70%

Inhaler compressor Esperanza BREEZE is a compact medical device intended for effective inhalation delivery of medications prescribed by a physician. It is designed to support treatment of asthma, allergies and other respiratory conditions by converting the prescribed liquid into an inhalable aerosol using a compressor-driven nebulizer. With proper use and regular maintenance, the BREEZE inhaler provides reliable operation over many years.

Advantages

The Esperanza BREEZE offers a compact, lightweight design suitable for home use, quiet operation with noise level up to 65 dBA, and a nebulizer capable of producing respirable particles with a high fine-particle fraction. The device includes a full set of accessories (nebulizer, air hose, adult mask, child mask and mouthpiece) to accommodate different patient needs and age groups.

Key specifications

• Power supply: 220 V, 50 Hz
• Current: 0.8 A
• Medication cup capacity: 10 ml
• Particle size range: 0.5–10 μm; respirable fraction ≥ 70.13% (fraction ≤ 5 μm)
• Noise level: ≤ 65 dBA
• Aerosol output: ≤ 0.4 ml/min (average)
• Compressor pressure range: 29–55 Psi (200–380 kPa / 2–3.8 bar)
• Working pressure range: 9–19 Psi (60–130 kPa / 0.6–1.3 bar)
• Flow: 8 L/min
• Operating temperature: 10 °C to 40 °C (50 °F to 104 °F)
• Working humidity: 10% to 95% RH
• Storage temperature: -20 °C to 70 °C (-4 °F to 158 °F)
• Standard equipment: nebulizer, air hose, adult mask, child mask, mouthpiece

How to use

Use the Esperanza BREEZE compressor nebulizer according to a physician's prescription. Assemble the device by connecting the air hose between the compressor and the nebulizer, pour the prescribed medication into the nebulizer cup (maximum 10 ml), attach the appropriate mask or mouthpiece, switch on the compressor and inhale the aerosol calmly until the dose is delivered. After each use, disassemble and clean the nebulizer parts following the manufacturer's instructions and allow them to dry completely before storage.

Recommendations

Use the compressor nebulizer under the supervision of a licensed physician or respiratory therapist. Do not operate the device with damaged power cord or cracked components. Store the device and accessories in a dry place within the specified temperature range and keep out of reach of children.
