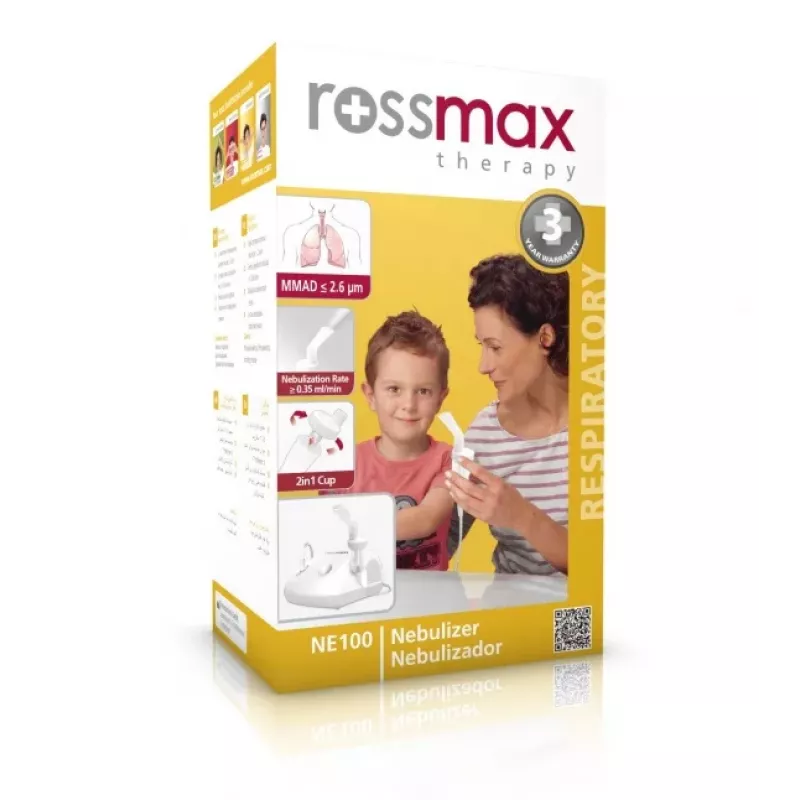

Rossmax Piston Nebulizer NE100

The Rossmax Piston Nebulizer NE100 is a reliable and efficient compressor nebulizer designed for effective respiratory therapy. Ideal for treating asthma, COPD, cystic fibrosis, and other respiratory conditions, it delivers medication deep into the lungs with a fine particle size of ≤2.6 μm. Its compact and portable design makes it suitable for home and travel use.

Advantages

High nebulization rate of ≥0.2 ml/min ensures quick treatment sessions. The fine particle fraction (FPF) of ≥75% (particles <5 μm) maximizes drug deposition. Low residual volume (<0.8 ml) reduces medication waste. Quiet operation at ≤60 dB ensures comfort. Overheat protection provides safety during use.

Suitable for

• Adults and children requiring inhalation therapy
• Management of asthma, COPD, and other respiratory diseases
• Home care and clinical settings

Key specifications

• Nebulization method: Piston compressor
• Nebulization rate: ≥0.2 ml/min
• Particle size (MMAD): ≤2.6 μm
• Fine particle fraction: ≥75% (<5 μm)
• Medication capacity: 5-8 ml
• Residual volume: <0.8 ml
• Operating pressure: 0.8-1.4 bar (11.6-20.3 psi)
• Compressor pressure: 2.9-3.4 bar (42-49 psi)
• Air flow: 5-8 LPM
• Noise level: ≤60 dB
• Power supply: AC 230V, 50Hz
• Power consumption: 60 W
• Operation cycle: 30 min ON / 30 min OFF
• Included: Nebulizer kit, air tube, mouthpiece, adult mask, child mask, 5 air filters, instruction manual

Recommendations

For optimal performance, use only recommended accessories and replace air filters regularly. Consult your healthcare provider for proper medication and usage instructions.
