Coaxial connector DELOCK 91769

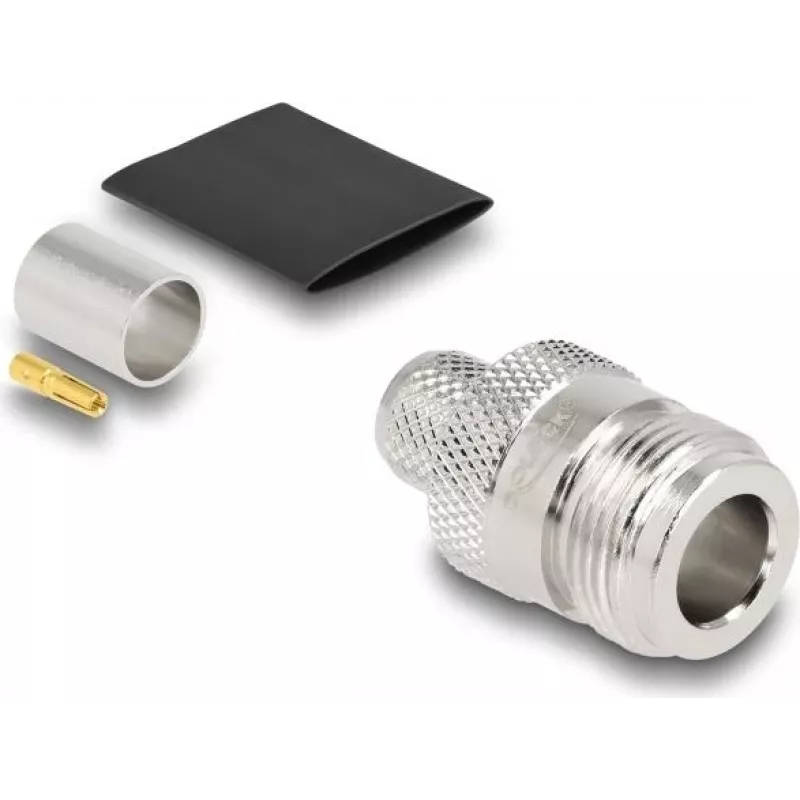

This jack by Delock with matching shrink tube is suitable for connecting components of radio frequency technology. The coaxial connector DELOCK 91769 is designed for RF signal connections and provides a compact, shielded interface for coaxial cables in antenna, audio/video and communication setups. It is intended for installations requiring a reliable 50 Ω connection and maintains signal integrity through its N-type contact and metal housing.

Advantages

The DELOCK 91769 features an N-type connector with a 50 Ω impedance and a silver finish, offering a durable, shielded connection. Its compact design and included shrink tube simplify installation and help protect the connection from environmental influences, ensuring consistent performance in RF applications.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket and dielectric to the recommended lengths for an N-type jack. Slide the supplied shrink tube onto the cable, assemble the connector according to the N-type installation procedure, and secure the connection. Apply heat to the shrink tube to seal and protect the join, ensuring the connector is tightened to the appropriate torque for reliable contact.

Recommendations

Use appropriate tools for cable preparation and connector assembly, and follow industry-standard safety and installation practices. Verify continuity and return loss with suitable test equipment after installation to confirm signal integrity.
