Coaxial connector DELOCK 91763 — BNC-style RF connector for coaxial cables

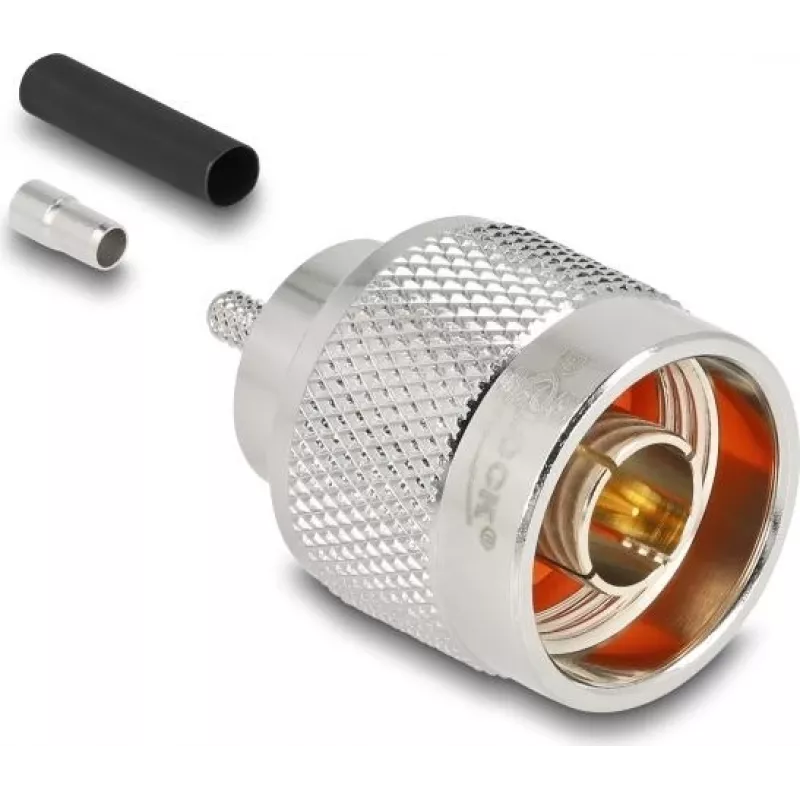

DELOCK 91763 is a coaxial connector designed for radio frequency (RF) applications, supplied with a matching shrink tube. It provides a reliable mechanical and electrical interface for connecting coaxial cables and transmitting RF signals with a 50 Ω impedance. The connector is suited for laboratory work, installations and repair tasks where a standard coaxial/RF connector is required.

Advantages

The connector supports RG-174 and RG-316 cable types and features a silver finish for corrosion resistance and good conductivity. Its compact design and included shrink tube simplify installation and create a secure, durable connection for testing or permanent use.

Suitable for

Key specifications

How to use

Strip the cable jackets and prepare the RG-174 and RG-316 conductors according to standard coaxial assembly practices. Insert the prepared cable ends into the connector and secure them following the connector’s assembly steps; then apply the supplied shrink tube over the joint and heat it evenly to seal and insulate the connection. Verify continuity and impedance with appropriate RF test equipment before placing the assembly into service.

Recommendations

Use the connector in environments and frequencies compatible with 50 Ω systems. Avoid exposing the assembled connector to excessive moisture or mechanical stress. For critical RF applications, check return loss and insertion loss after installation to ensure signal integrity.
