Coaxial connector DELOCK 89723 — FAKRA Z male, 90° angled, 13.8×21.5×9.5 mm

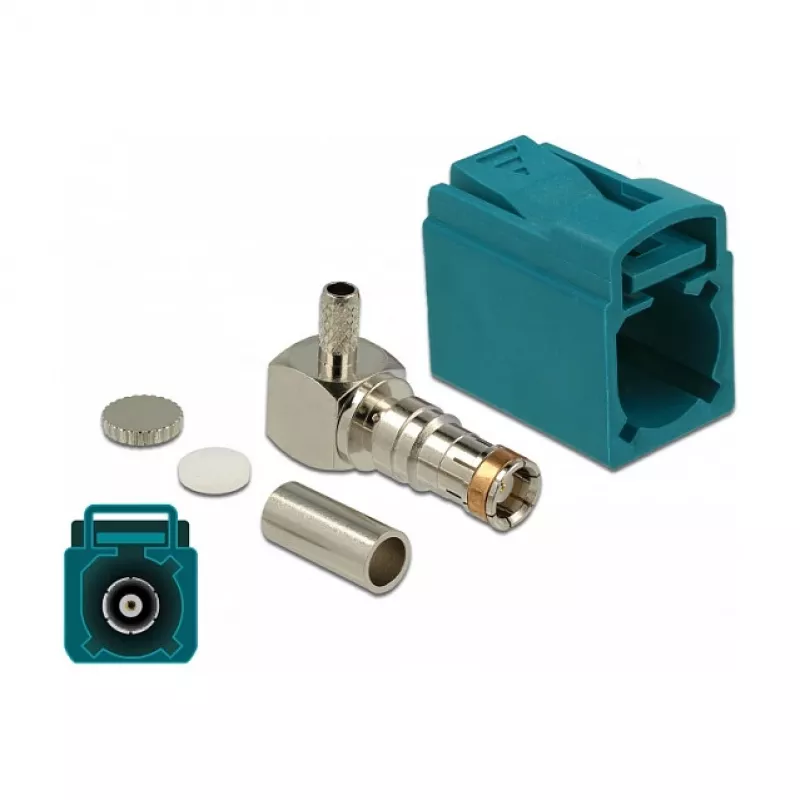

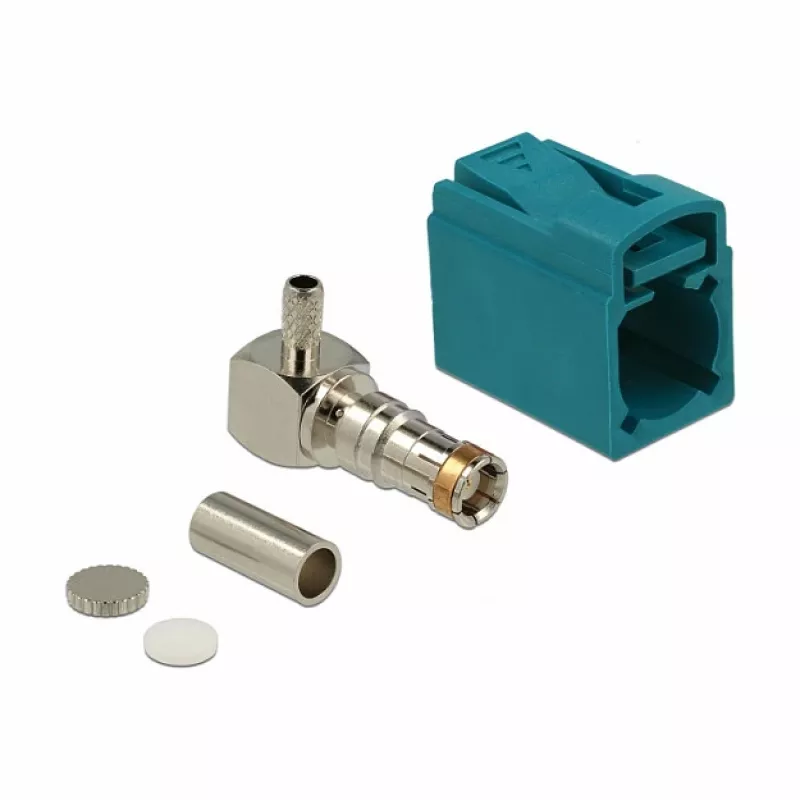

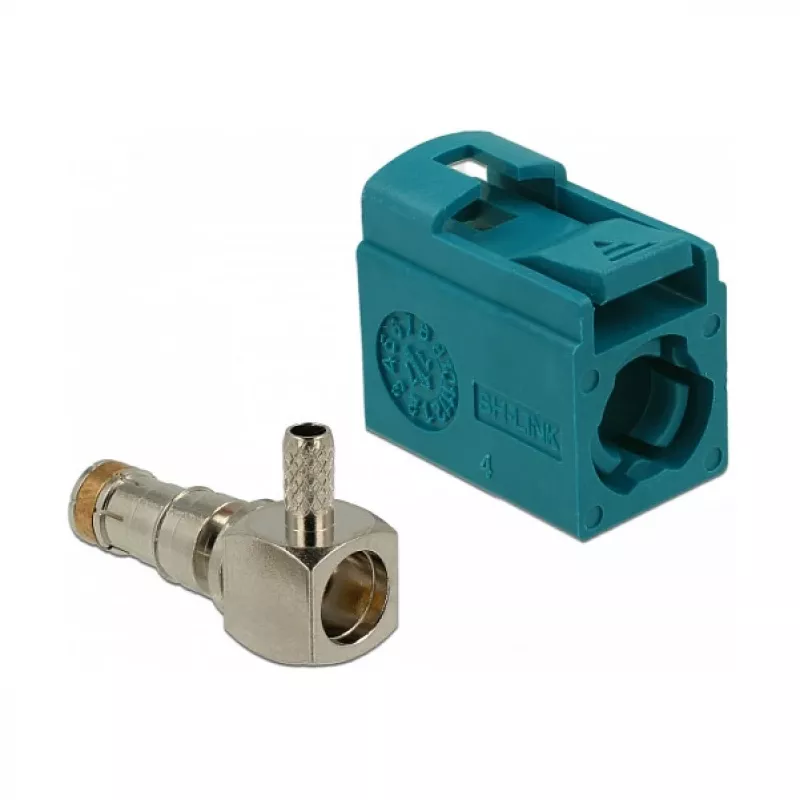

DELOCK 89723 is a compact coaxial connector with a FAKRA Z male interface and a 90° angled body. With dimensions of 13.8 × 21.5 × 9.5 mm, the connector is designed for coaxial cabling in automotive and RF environments where space is limited. The right-angle design allows routing of cables in confined areas while maintaining a reliable mechanical and electrical connection for radio frequency signals.

Advantages

The angled FAKRA Z male connector offers a compact footprint and straightforward installation in tight spaces. Its right-angle orientation reduces strain on cables and connectors in confined assemblies. The part is supplied in a protective polybag to prevent contamination and minor handling damage during storage and transport. The design follows common FAKRA mechanical conventions to ensure consistent mating with compatible female counterparts.

Suitable for

Key specifications

How to use

Ensure the mating connector is the correct FAKRA Z female type before connecting. Align the male interface with the corresponding female receptacle and press straight until the connector seats securely, taking care not to twist or apply excessive force. The 90° orientation is intended for applications where a right-angle exit is required; route the cable so that no sharp bends or compression occur at the termination point.

Recommendations

For reliable long-term performance, avoid repeated disconnects under load, keep the mating surfaces clean, and secure cable runs to prevent mechanical stress at the connector. Verify compatibility with corresponding FAKRA Z female connectors and use in environments within the manufacturer's specified temperature and vibration limits for automotive RF components.
